MC34064 Undervoltage Sensing Circuit: Pinout, Features and Datasheet

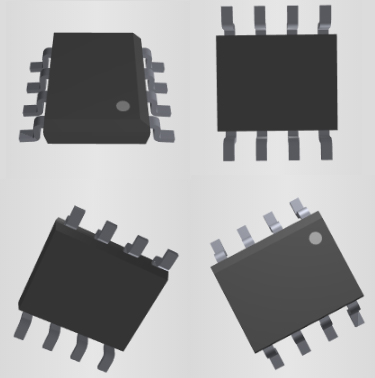

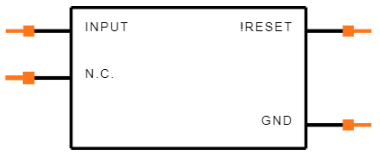

The followings are MC34064 Symbol, Footprint, and 3D Model.

Symbol

Footprint

3D Model

The MC34064 is an undervoltage sensing circuit specifically designed for use as a reset controller in microprocessor−based systems. It offers the designer an economical solution for low voltage detection with a single external resistor. The MC34064 features a trimmed−in−package bandgap reference, and a comparator with precise thresholds and built-in hysteresis to prevent erratic reset operation. The open collector reset output is capable of sinking in excess of 10 mA, and operation is guaranteed down to 1.0 V input with low standby current. The MC devices are packaged in 3−pin TO-92, micro size TSOP−5, 8−pin SOIC−8 and Micro8^TM surface mount packages.

This article provides you with a basic overview of the MC34064 Undervoltage Sensing Circuit, including its pin descriptions, features and specifications, etc., to help you quickly understand what MC34064 is.

● Trimmed−In−Package Temperature Compensated Reference

● Comparator Threshold of 4.6 V at 25°C

● Precise Comparator Thresholds Guaranteed Over Temperature

● Comparator Hysteresis Prevents Erratic Reset

● Reset Output Capable of Sinking in Excess of 10 mA

● Internal Clamp Diode for Discharging Delay Capacitor

● Guaranteed Reset Operation with 1.0 V Input

● Low Standby Current

● Economical TO−92, TSOP−5, SOIC−8 and Micro8 Surface Mount Packages

● These Devices are Pb−Free and are RoHS Compliant

ON Semiconductor MC34064D-5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC34064D-5G.

The following is the Block Diagram of MC34064.

Representative Block Diagram

Applications include direct monitoring of the 5.0 V MPU/logic power supply used in appliance, automotive, consumer and industrial equipment.

The following diagram shows the MC34064 package.

Package

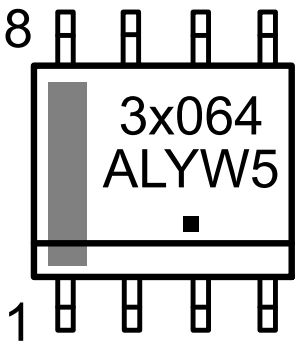

The following is the Marking Diagram of MC34064.

Marking Diagram

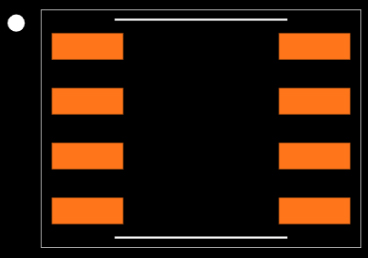

The following diagram shows the MC34064 Soldering Footprint.

Soldering Footprint

ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
