MC34164 Micropower Undervoltage Sensing Circuits: Pinout, Equivalent and Datasheet

The following figure is the diagram of MC34164 pinout.

Pinout

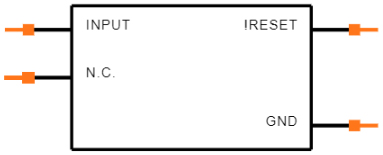

The followings are MC34164 Symbol, Footprint, and 3D Model.

Symbol

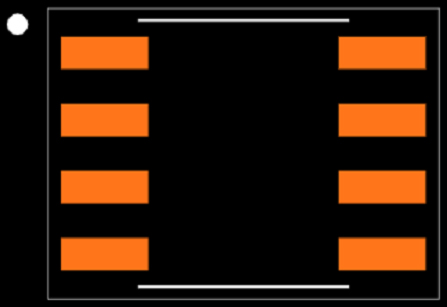

Footprint

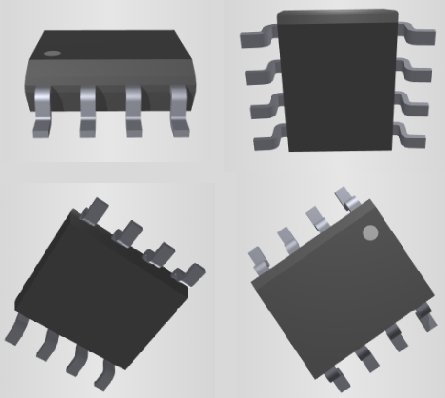

3D Model

The MC34164 series are undervoltage sensing circuits specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is required. These devices offer the designer an economical solution for low voltage detection with a single external resistor. The MC34164 series features a bandgap reference, a comparator with precise thresholds and built−in hysteresis to prevent erratic reset operation, an open collector reset output capable of sinking in excess of 6.0 mA, and guaranteed operation down to 1.0 V input with extremely low standby current. The MC devices are packaged in 3−pin TO−92 (TO−226AA), micro size TSOP−5, 8−pin SOIC−8 and Micro8™ surface mount packages.

This article provides you with a basic overview of the MC34164 Micropower Undervoltage Sensing Circuits, including its pin descriptions, features and specifications, etc., to help you quickly understand what MC34164 is.

● Temperature Compensated Reference

● Monitors 3.0 V (MC34164−3) or 5.0 V (MC34164−5) Power Supplies

● Precise Comparator Thresholds Guaranteed Over Temperature

● Comparator Hysteresis Prevents Erratic Reset

● Reset Output Capable of Sinking in Excess of 6.0 mA

● Internal Clamp Diode for Discharging Delay Capacitor

● Guaranteed Reset Operation With 1.0 V Input

● Extremely Low Standby Current: As Low as 9.0 μA

● Economical TO−92 (TO−226AA), TSOP−5, SOIC−8 and Micro8 Surface Mount Packages

● NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes

● These Devices are Pb−Free and are RoHS Compliant

ON Semiconductor MC34164D-5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC34164D-5G.

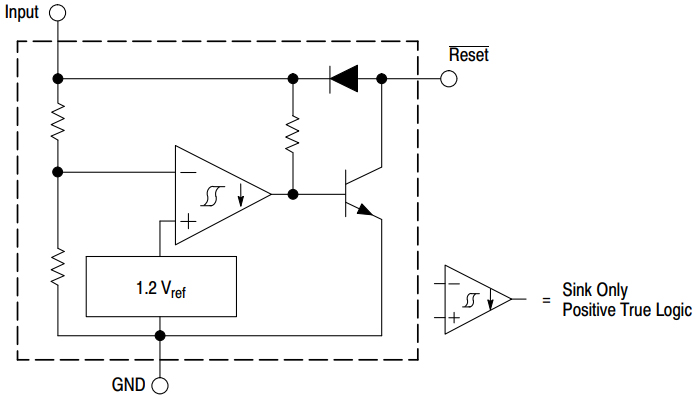

The following is the Block Diagram of MC34164.

Representative Block Diagram

Applications include direct monitoring of the 3.0 V or 5.0 V MPU/logic power supply used in appliance, automotive, consumer, and industrial equipment.

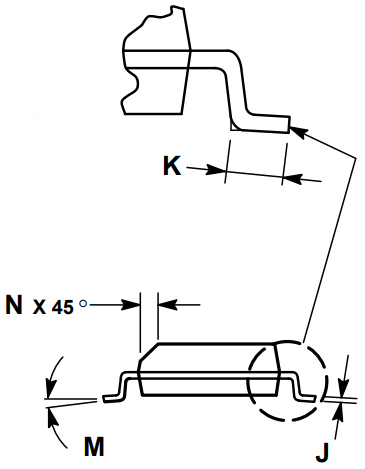

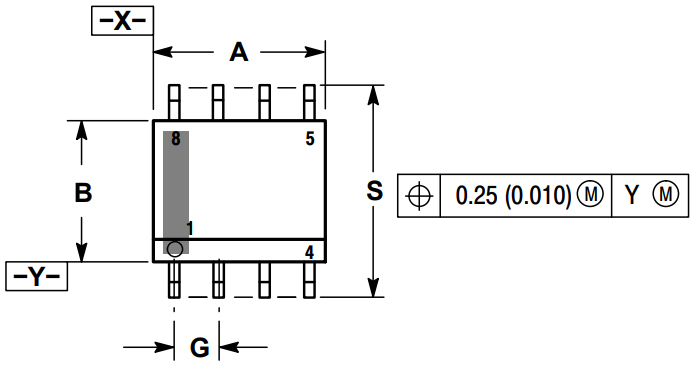

The following diagrams show the MC34164 package.

View A

View B

View C

The following is the Marking Diagram of MC34164.

Marking Diagram

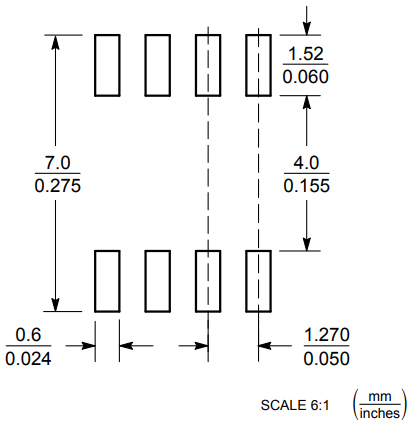

The following diagram shows the MC34164 Package Soldering Footprint.

Soldering Footprint
