Using Mu to plot sensor data with MCP2221 USB to I2C converter
Interface - Controllers 14-DIP (0.300, 7.62mm) -40°C~85°C 3V~5.5V 2.54mm MCP2221 USB Interface IC USB to I2C Bridge Device
The MCP2221 is a USB-to-UART serial converter. This article will unlock more details about MCP2221. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
MCP2221-I/P
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.23964 | $5.24 |
| 10+ | $4.94305 | $49.43 |
| 100+ | $4.66326 | $466.33 |
| 500+ | $4.3993 | $2199.65 |
| 1000+ | $4.15028 | $4150.28 |

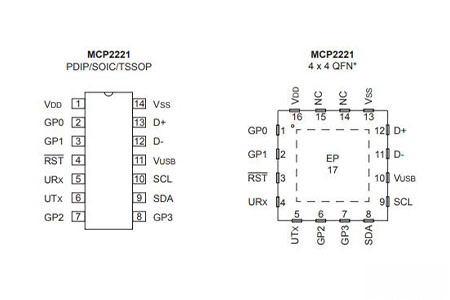

MCP2221 Pinout
MCP2221 Symbol
MCP2221 Footprint
MCP2221 3D Model
The MCP2221 is a USB-to-UART serial converter that enables USB connectivity in applications that have UART and/or 12c interfaces. The device reduces external components by integrating the USB termination resistors and the oscillator needed for USB operation.
The MCP2221 has four GP pins for miscellaneous functionalities (including GPIO ， USBCFG， SSPND, Clock Output, ADC, DAC and interrupt detector).
Supports full-speed USB (12 Mb/s)
Communication Device Class (CDC) for communications and configuration
Human Interface Device (HID) for I2C ™, chip control and configuration
128-byte Buffer to handle data throughput at any UART baud rate
Fully configurable VID and PID assignments, and string descriptors
Bus-powered or self-powered
USB 2.0 Compliant
Microchip Technology MCP2221-I/P technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP2221-I/P.
Microchip Technology MCP2221-I/P technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP2221-I/P.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mount | Through Hole | |
| Package / Case | 14-DIP (0.300, 7.62mm) | |
| Number of Pins | 14Pins | |
| Weight | 1.620005g | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Published | 2008 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 14Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Voltage - Supply | 3V~5.5V | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE | |
| Supply Voltage | 3.3V | |
| Terminal Pitch | 2.54mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE | |
| Base Part Number | MCP2221 | |
| Function | Bridge, USB to I2C/UART | |
| Qualification Status | Not Qualified | |
| Power Supplies | 3.3/5V | |
| Interface | I2C, UART |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Supply Current | 13mA | |
| Number of Ports | 1Port | |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR CIRCUIT | |
| Data Rate | 12 Mbps | |
| Protocol | USB | |
| ESD Protection | Yes | |
| Standards | USB 2.0 | |
| Height | 4.95mm | |
| Length | 19.69mm | |
| Width | 7.11mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
MCP2221 Block Diagram
MCP2221 Application Circuit
MCP2221 Package
Microchip Technology Inc. is a leading provider of microcontroller and analogue semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for MCP2221-I/P
