Digital to Analog Converters - DAC Quad 12-bit NV DAC with I2C interface
MCP4728 is a 12-bit, quad digital-to-analog converter. This article enforces pinout, datasheet, applications, alternatives, and other details about MCP4728.
MCP4728-E/UN

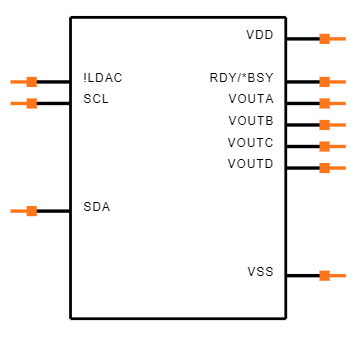

Symbol
Symbol

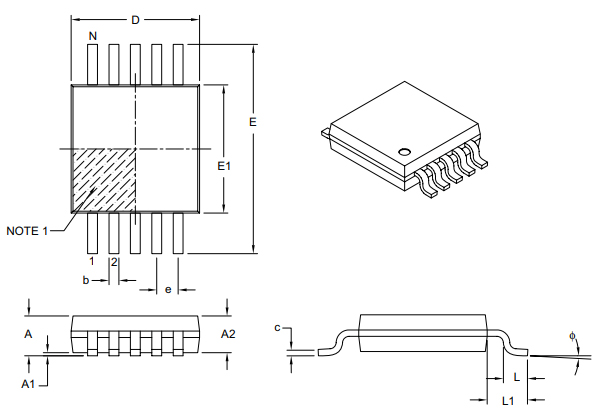

Footprint
Footprint

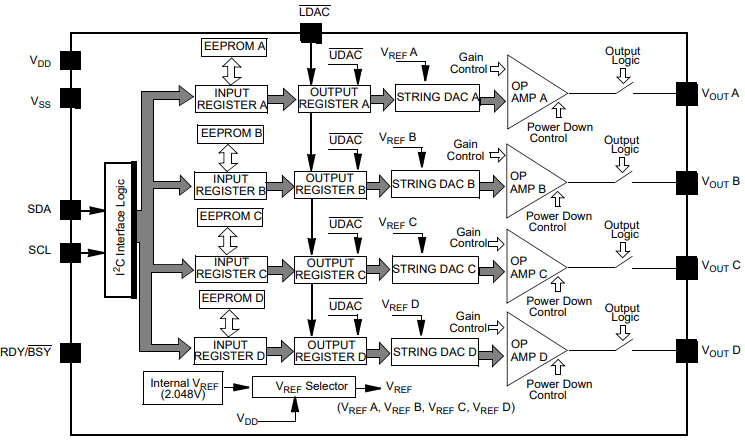

The MCP4728 device is a quad, 12-bit voltage output Digital-to-Analog Converter (DAC) with nonvolatile memory (EEPROM). Its onboard precision output amplifier allows it to achieve rail-to-rail analog output swing.
Microchip Technology MCP4728-E/UN technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP4728-E/UN.
Microchip Technology MCP4728-E/UN technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP4728-E/UN.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | |
| Number of Pins | 10Pins | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| Published | 2009 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 10Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | MCP4728 | |
| Pin Count | 10 | |
| Output Type | Voltage - Buffered | |
| Operating Supply Voltage | 5V | |
| Polarity | Unipolar | |
| Interface | 2-Wire, I2C, Serial | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 2.7V | |
| Nominal Supply Current | 110mA | |
| Number of Bits | 12Bits | |
| Architecture | String DAC | |
| Converter Type | D/A CONVERTER | |
| Supply Type | Single | |
| Reference Type | Internal, Supply |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Interface | I2C | |
| Differential Output | No | |
| Resolution | 1.5 B | |
| Voltage - Supply, Analog | 2.7V~5.5V | |
| Voltage - Supply, Digital | 2.7V~5.5V | |
| Settling Time | 6μs (Typ) | |
| Integral Nonlinearity (INL) | 13 LSB | |
| Input Bit Code | BINARY | |
| Number of Converters | 4Converters | |
| INL/DNL (LSB) | ±2, ±0.2 | |
| Height | 850μm | |
| Length | 3mm | |
| Width | 3mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• 12-Bit Voltage Output DAC with Four Buffered Outputs
• On-Board Nonvolatile Memory (EEPROM) for DAC Codes and I2C™ Address Bits
• Internal or External Voltage Reference Selection
• Output Voltage Range:
- Using Internal VREF (2.048V):
0.000V to 2.048V with Gain Setting = 1
0.000V to 4.096V with Gain Setting = 2
- Using External VREF (VDD): 0.000V to VDD
• ±0.2 Least Significant Bit (LSB) Differential Nonlinearity (DNL) (typical)
• Fast Settling Time: 6 µs (typical)
• Normal or Power-Down Mode
• Low Power Consumption
• Single-Supply Operation: 2.7V to 5.5V
• I2C Interface:
- Address bits: User Programmable to EEPROM
- Standard (100 kbps), Fast (400 kbps), and High Speed (HS) Mode (3.4 Mbps)
• 10-Lead MSOP Package
• Extended Temperature Range: -40°C to +125°C
Microchip Technology Incorporated is a leading provider of smart, connected, and secure embedded control solutions. Its easy-to-use development tools and comprehensive product portfolio enable customers to create optimal designs, which reduce risk while lowering total system cost and time to market. The company's solutions serve more than 120,000 customers across the industrial, automotive, consumer, aerospace and defense, communications, and computing markets. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for Microchip Technology MCP4728-E/UN.
Download datasheets and manufacturer documentation for MCP4728-E/UN
