MCP602 Op-amp: Pinout, Datasheet and Test Circuit

Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-DIP (0.300, 7.62mm) General Purpose 5V -40°C~125°C MCP602 IC OPAMP GP 2.8MHZ RRO 8DIP

442

Oct 19, 2021

Sid Sophy

Electronics: MCP602 alternative? (4 Solutions!!)



Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-DIP (0.300, 7.62mm) General Purpose 5V -40°C~125°C MCP602 IC OPAMP GP 2.8MHZ RRO 8DIP

The Microchip Technology Inc. MCP601/1R/2/3/4 family of low-power operational amplifiers (op-amps) are offered in single (MCP601), single with Chip Select (CS) (MCP603), dual (MCP602), and quad (MCP604) configurations. This post will unlock more details about MCP602. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.



MCP602-E/P

35In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.9285$1.93
10+ $1.81934$18.19
100+ $1.71636$171.64
500+ $1.6192$809.6
1000+ $1.52755$1527.55
Unit Price:$1.9285
Subtotal: $1.93
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

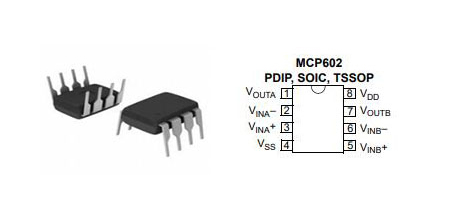

MCP602 Pinout

MCP602 CAD Model

Symbol

Footprint

3D Model

What is MCP602?

The MCP602 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP602 operates with a single supply voltage that can be as low as 2.7V while drawing less than 325 uA of quiescent current per amplifier.

MCP602 Manufacturer

Microchip Technology Inc., is a leader that provides microcontroller and analogue semiconductors. The microchip was headquartered in Chandler, Arizona. We are dedicated to offering low-risk product development, reducing total system cost and accelerating time to market. We mainly serve different fields of customers applications around the world. To provide prominent technical support along with reliable delivery and quality is our goal.



Specifications

MCP602-E/P Tech Specifications

Microchip Technology MCP602-E/P technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP602-E/P.

Product Attribute Attribute Value
Factory Lead Time10 Weeks
MountThrough Hole
Mounting TypeThrough Hole
Package / Case8-DIP (0.300, 7.62mm)
Number of Pins8Pins
Operating Temperature-40°C~125°C
PackagingTube
Published2007
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Terminal FinishMatte Tin (Sn)
Terminal PositionDUAL
Number of Functions2Functions
Supply Voltage5V
Product Attribute Attribute Value
Base Part NumberMCP602
Pin Count8
Output TypeRail-to-Rail
Operating Supply Voltage5.5V
Power Supplies3/5V
Number of Channels2Channels
Number of Circuits2Circuits
Nominal Supply Current230μA
Output Current22mA
Slew Rate2.3V/μs
ArchitectureVOLTAGE-FEEDBACK
Amplifier TypeGeneral Purpose
Common Mode Rejection Ratio75 dB
Current - Input Bias1pA
Voltage - Supply, Single/Dual (±)2.7V~6V
Input Offset Voltage (Vos)2mV
Unity Gain BW-Nom2800 kHz
Voltage Gain115dB
Product Attribute Attribute Value
Average Bias Current-Max (IIB)0.005μA
Power Supply Rejection Ratio (PSRR)80dB
Low-OffsetNO
Frequency CompensationYES
Supply Voltage Limit-Max7V
Voltage - Input Offset700μV
Low-BiasYES
MicropowerYES
Max Frequency10kHz
Height4.953mm
Length10.16mm
Width7.112mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

MCP602 Features

• Single-Supply: 2.7V to 6.0V

• Rail-to-Rail Output

• Input Range Includes Ground

• Gain Bandwidth Product: 2.8 MHz (typical)

• Unity-Gain Stable

• Low Quiescent Current: 230 µA/amplifier (typical)

• Chip Select (CS): MCP603 only

• Temperature Ranges:

- Industrial: -40°C to +85°C

- Extended: -40°C to +125°C

• Available in Single, Dual, and Quad

MCP602 Application

• Portable Equipment

• A/D Converter Driver

• Photo Diode Pre-amp

• Analog Filters

• Data Acquisition

• Notebooks and PDAs

• Sensor Interface

MCP602 Available Tools

• SPICE Macro Models

• FilterLab® Software

• Mindi™ Simulation Tool

• MAPS (Microchip Advanced Part Selector)

• Analog Demonstration and Evaluation Boards

• Application Notes

MCP602 Alternatives

The alternatives for MCP602:

  • LM358

  • LM2904M

  • NE5532

MCP602 Test Circuit

The test circuits used for the DC and AC tests are shown below:

MCP602-AC and DC Test Circuit for Most Non-Inverting Gain Conditions

MCP602-AC and DC Test Circuit for Most Inverting Gain Conditions

How to package MCP602

It is available in standard 8-lead PDIP, SOIC, and TSSOP packages.

MCP602 Package

Datasheet PDF

MCP602-E/P Documents

Download datasheets and manufacturer documentation for MCP602-E/P

Datasheets
MCP601-04
ConflictMineralStatement
Microchip-company-68.pdf

Frequently Asked Questions

What is equivalent circuit of op-amp?
The output voltage is directly proportional to the difference voltage Vd. It is to be noted that the op-amp amplifies difference voltage and not the individual input voltages. Thus the output polarity gets decided by the polarity of the difference voltage Vd.
What is MCP602?
The MCP602 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP602 operates with a single supply voltage that can be as low as 2.7V while drawing less than 325 uA of quiescent current per amplifier.
What condition does MCP602 operate?
This product offering operates with a single supply voltage that can be as low as 2.7V while drawing 230 µA (typical) of quiescent current per amplifier. In addition, the common-mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation.
FAQ
What is equivalent circuit of op-amp?
The output voltage is directly proportional to the difference voltage Vd. It is to be noted that the op-amp amplifies difference voltage and not the individual input voltages. Thus the output polarity gets decided by the polarity of the difference voltage Vd.
What is MCP602?
The MCP602 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP602 operates with a single supply voltage that can be as low as 2.7V while drawing less than 325 uA of quiescent current per amplifier.
What condition does MCP602 operate?
This product offering operates with a single supply voltage that can be as low as 2.7V while drawing 230 µA (typical) of quiescent current per amplifier. In addition, the common-mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation.
