IC OPAMP GP 2 CIRCUIT 8DIP The MCP6022 from Microchip Technology Inc. are rail-to-rail input and output operational amplifiers with high performance. This article mainly introduces circuit, pinout, datasheet and other detailed information about Microchip Technology MCP6022.
394
Oct 4, 2021
Arlen Micah
Тест ОУ MCP6022 с алиэкспресс
IC OPAMP GP 2 CIRCUIT 8DIP
The MCP6022 from Microchip Technology Inc. are rail-to-rail input and output operational amplifiers with high performance. This article mainly introduces circuit, pinout, datasheet and other detailed information about Microchip Technology MCP6022.
MCP6022-I/P
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.47884 | $2.48 |
| 10+ | $2.33853 | $23.39 |
| 100+ | $2.20616 | $220.62 |
| 500+ | $2.08128 | $1040.64 |
| 1000+ | $1.96348 | $1963.48 |
The MCP6022 from Microchip Technology Inc. are rail-to-rail input and output operational amplifiers with high performance. Key specifications include wide bandwidth (10 MHz), low noise (8.7 nV/Hz), low input offset voltage and low distortion (0.00053% THD+N). The dual MCP6022 is available in 8-lead PDIP, SOIC and TSSOP packages. The MCP6022 is available in Industrial and Extended temperature ranges. It has a power supply range of 2.5V to 5.5V.

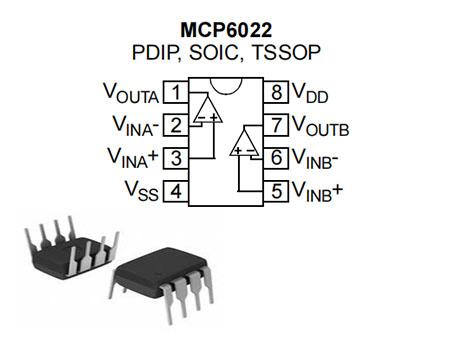

| Pin Number | Pin Name | Description |
| 1 | VOUTA | Analog Output (Op Amp A) |
| 2 | VINA- | Inverting Input (Op Amp A) |
| 3 | VINA+ | Non-Inverting Input (Op Amp A) |
| 4 | VSS | Negative Power Supply |
| 5 | VINB+ | Non-Inverting Input (Op Amp B) |
| 6 | VINB– | Inverting Input (Op Amp B) |
| 7 | VOUTB | Analog Output (Op Amp B) |
| 8 | VDD | Positive Power Supply |

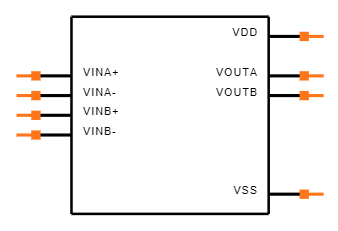

Symbol
Footprint

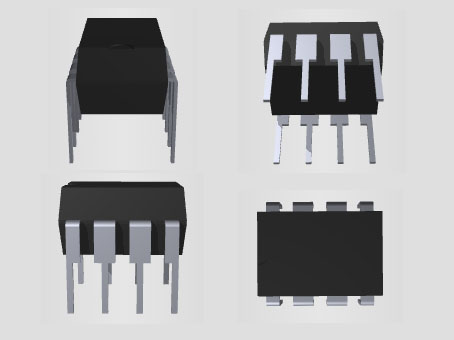

3D Model
• Rail-to-Rail Input/Output
• Wide Bandwidth: 10 MHz (typical)
• Low Noise: 8.7 nV/ÖHz at 10 kHz (typical)
• Low Offset Voltage:
- Industrial Temperature: ±500 µV (max.)
- Extended Temperature: ±250 µV (max.)
• Mid-Supply VREF: MCP6021 and MCP6023
• Low Supply Current: 1 mA (typical)
• Total Harmonic Distortion:
- 0.00053% (typical, G = 1 V/V)
• Unity Gain Stable
• Power Supply Range: 2.5V to 5.5V
• Temperature Range:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
Microchip Technology MCP6022-I/P technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP6022-I/P.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Published | 2003 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 5V | |
| Base Part Number | MCP6022 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pin Count | 8 | |
| Lead Pitch | 2.54mm | |
| Output Type | Rail-to-Rail | |
| Max Output Current | 30mA | |
| Power Supplies | 3/5V | |
| Row Spacing | 9.4 mm | |
| Number of Channels | 2Channels | |
| Number of Circuits | 2Circuits | |
| Nominal Supply Current | 1mA | |
| Output Current | 22mA | |
| Max Supply Current | 2mA | |
| Min Input Voltage | -300mV | |
| Slew Rate | 7V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 70 dB | |
| Current - Input Bias | 1pA | |
| Max Input Voltage | 5.8V | |
| Voltage - Supply, Single/Dual (±) | 2.5V~5.5V | |
| Input Offset Voltage (Vos) | 500μV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Unity Gain BW-Nom | 10000 kHz | |
| Voltage Gain | 110dB | |
| Average Bias Current-Max (IIB) | 0.00015μA | |
| Power Supply Rejection Ratio (PSRR) | 74dB | |
| Low-Offset | YES | |
| Frequency Compensation | YES | |
| Supply Voltage Limit-Max | 7V | |
| Settling Time | 250 ns | |
| Low-Bias | YES | |
| Micropower | NO | |
| Max Frequency | 10kHz | |
| Programmable Power | NO | |
| Height | 4.953mm | |
| Length | 10.16mm | |
| Width | 7.112mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Typical Application

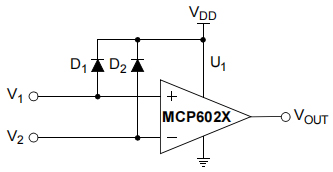

Simplified Analog Input Circuit
Circuit
| Part Number | Description | Manufacturer |
| MCP6022-I/SNAMPLIFIER CIRCUITS | DUAL OP-AMP, 500 uV OFFSET-MAX, 10 MHz BAND WIDTH, PDSO8, 0.150 INCH, LEAD FREE, PLASTIC, MS-012, SOIC-8 | Microchip Technology Inc |
| MCP6022-E/SNVAOAMPLIFIER CIRCUITS | Operational Amplifier, 2 Func, 2500uV Offset-Max, CMOS, PDSO8 | Microchip Technology Inc |
• Automotive
• Multi-Pole Active Filters
• Audio Processing
• DAC Buffer
• Test Equipment
• Medical Instrumentation
Microchip Technology is a leader that provides microcontrollers and analog semiconductors. They mainly serve for different fields of customers applications around the world. It is a leading provider of smart, connected and secure embedded control solutions. Its easy-to-use development tools and comprehensive product portfolio enable customers to create optimal designs, which reduce risk while lowering total system cost and time to market.
The company's solutions serve more than 120,000 customers across the industrial, automotive, consumer, aerospace and defense, communications and computing markets. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for MCP6022-I/P
