MICROCHIP - MCP73831T-2ACI/OT - IC zum Laden von 1-zelligen Li-Ionen- & Li-Polymer-Akkus, 6V Eingang, 4.2V/500mA, SOT-23-5
The MCP73831T-2ACI/OT employs a constant-current/constant-voltage charge algorithm with selectable preconditioning and charge termination. This article is going to introduce pinout, applications, features, and more details about MCP73831T-2ACI/OT.

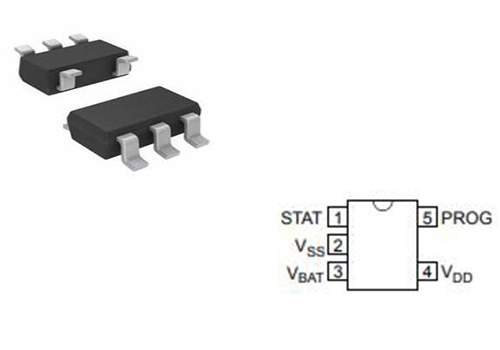

MCP73831T-2ACI/OT
The MCP73831T-2ACI /OT devices are highly advanced linear charge management controllers for use in space-limited, cost-sensitive applications. The MCP73831T-2ACI /OT is available in an 8-Lead, 2 mm x 3 mm DFN package or a 5-Lead, SOT-23 package. Along with their small physical size, the low number of external components required make the MCP73831T-2ACI /OT ideally suited for portable applications. For applications charging from a USB port, the MCP73831T-2ACI /OT adheres to all the specifications governing the USB power bus.
The MCP73831T-2ACI/OT employs a constant-current/constant-voltage charge algorithm with selectable preconditioning and charge termination. The constant voltage regulation is fixed with four available options: 4.20V, 4.35V, 4.40V, or 4.50V, to accommodate new, emerging battery charging requirements. The constant current value is set with one external resistor. The MCP73831T-2ACI/OT devices limit the charge current based on die temperature during high power or high ambient conditions. This thermal regulation optimizes the charge cycle time while maintaining device reliability.
• Linear Charge Management Controller:
- Integrated Pass Transistor
- Integrated Current Sense
- Reverse Discharge Protection
• High Accuracy Preset Voltage Regulation : + 0.75%
• Four Voltage Regulation Options:
- 4.20V, 4.35V, 4.40V, 4.50V
• Programmable Charge Current: 15 mA to 500 mA
• Selectable Preconditioning:
- 10%, 20%, 40%, or Disable
• Selectable End-of-Charge Control:
- 5%, 7.5%, 10%, or 20%
• Charge Status Output
- Tri-State Output - MCP73831
- Open-Drain Output - MCP73832
• Automatic Power-Down
• Thermal Regulation
• Temperature Range: -40°C to +85°C
• Packaging:
- 8-Lead, 2 mm x 3 mm DFN
- 5-Lead, SOT-23

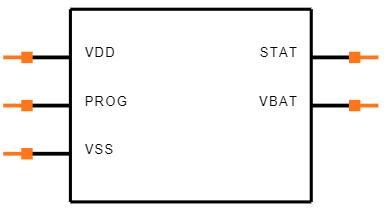

MCP73831T-2ACI Symbol

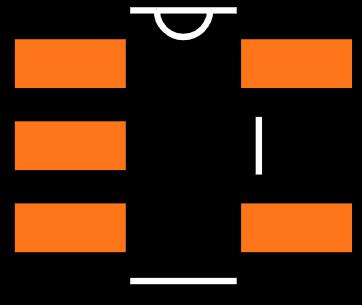

MCP73831T-2ACI Footprint

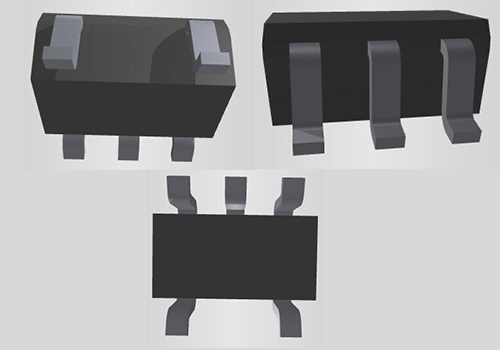

MCP73831T-2ACI-OT 3D Model

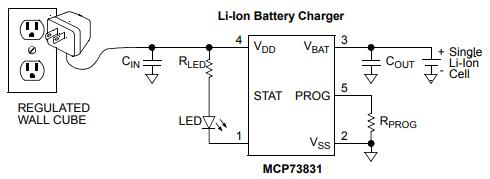

MCP73831T-2ACI/OT Circuit
Microchip Technology MCP73831T-2ACI/OT technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP73831T-2ACI/OT.
Microchip Technology MCP73831T-2ACI/OT technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MCP73831T-2ACI/OT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-74A, SOT-753 | |
| Number of Pins | 5Pins | |
| Weight | 200.998119mg | |
| Voltage Rated | 4.534V | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Published | 2008 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 5Terminations | |
| Termination | SMD/SMT |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Max Power Dissipation | 1.54W | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5.2V | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | MCP73831 | |
| Pin Count | 5 | |
| Number of Outputs | 1Output | |
| Output Voltage | 4.2V | |
| Number of Channels | 1Channel | |
| Max Supply Voltage | 6V | |
| Min Supply Voltage | 3.75V | |
| Analog IC - Other Type | POWER SUPPLY SUPPORT CIRCUIT | |
| Output Current | 500mA | |
| Adjustable Threshold | YES |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Voltage | 4.5V | |
| Max Input Voltage | 6V | |
| Nominal Input Voltage | 6V | |
| Min Output Voltage | 4.168V | |
| Fault Protection | Over Voltage | |
| Battery Chemistry | Lithium Ion/Polymer | |
| Drain to Source Resistance | 350mOhm | |
| Programmable Features | Current | |
| Current - Charging | Constant - Programmable | |
| Charge Current - Max | 500mA | |
| Height | 1.2954mm | |
| Length | 3.0988mm | |
| Width | 1.8034mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Lithium-Ion/Lithium-Polymer Battery Chargers
• Personal Data Assistants
• Cellular Telephones
• Digital Cameras
• MP3 Players
• Bluetooth Headsets
• USB Chargers

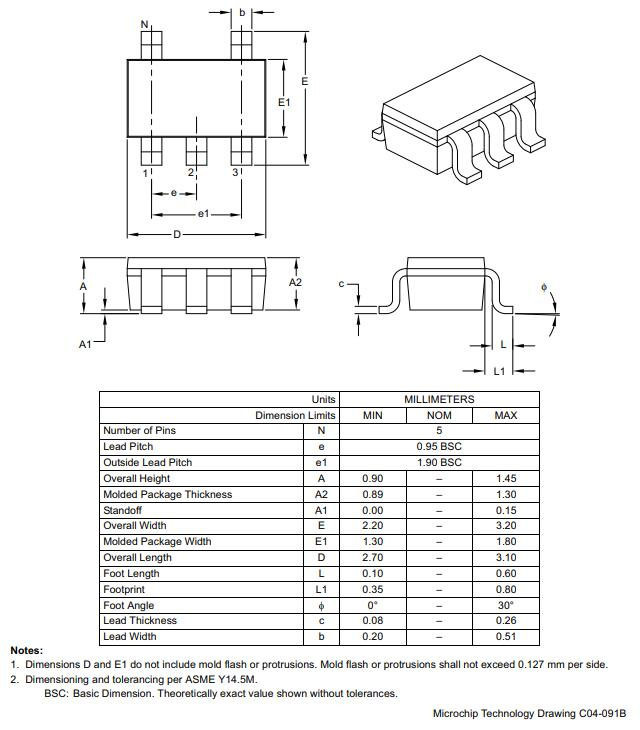

MCP73831T-2ACI/OT Package information
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost, and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for Microchip Technology MCP73831T-2ACI/OT.
Download datasheets and manufacturer documentation for MCP73831T-2ACI/OT
