MGA-81563 Amplifier: Pinout, Equivalent and Datasheet

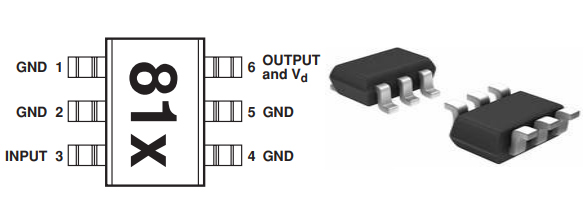

The following figure is the diagram of MGA-81563 Pinout.

Pinout

The followings are MGA-81563 Symbol and Footprint.

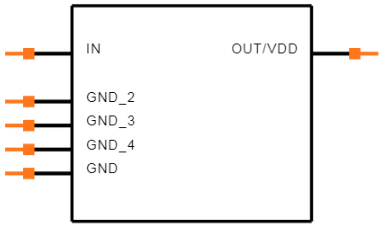

Symbol

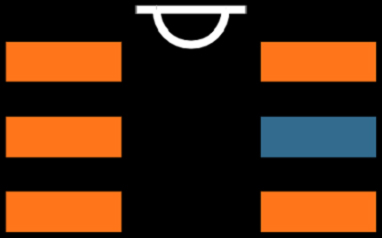

Footprint

MGA-81563 is an economical, easy-to-use GaAs MMIC amplifier that offers excellent power and low noise figure for applications from 0.1 to 6 GHz. Packaged in an ultra-miniature SOT-363 package, it requires half the board space of a SOT-143 package. The output of the amplifier is matched to 50Ω (better than 2.1:1 VSWR) across the entire bandwidth. The input is partially matched to 50Ω (better than 2.5:1 VSWR) below 4 GHz and fully matched to 50Ω (better than 2:1 VSWR) above. A simple series inductor can be added to the input to improve the input match below 4 GHz. The amplifier allows a wide dynamic range by offering a 2.7 dB NF coupled with a +27 dBm Output IP₃. The circuit uses state-of-the-art PHEMT technology with proven reliability. On-chip bias circuitry allows operation from a single +3 V power supply, while resistive feedback ensures stability (K>1) over all frequencies and temperatures.

This article will introduce MGA-81563 systematically from its features, pinout to its specifications, applications, also including MGA-81563 datasheet and so much more.

● Lead-free Option Available

● +14.8 dBm P_1dB at 2.0 GHz; +17 dBm P_sat at 2.0 GHz

● Single +3V Supply

● 2.8 dB Noise Figure at 2.0 GHz

● 12.4 dB Gain at 2.0 GHz

● Ultra-miniature Package

● Unconditionally Stable

Broadcom Limited MGA-81563-TR1 technical specifications, attributes, parameters and parts with similar specifications to Broadcom Limited MGA-81563-TR1.

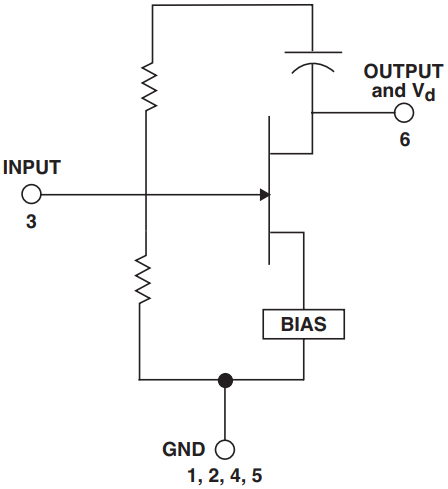

The following figure is the diagram of MGA-81563 Simplified Schematic.

Simplified Schematic

● Buffer or Driver Amp for PCS, PHS, ISM, SATCOM and WLL Applications

● High Dynamic Range LNA

The following diagrams show the MGA-81563 Package.

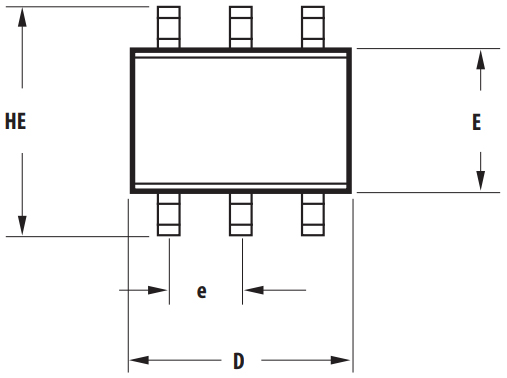

View A

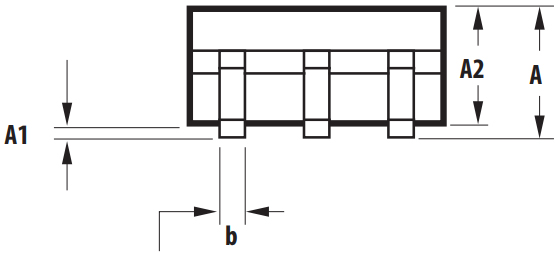

View B

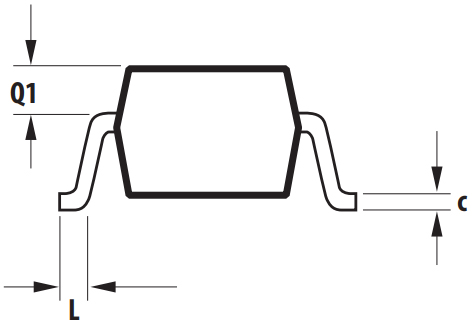

View C
