USB Power SW Hi Side/DIST Single 5.5V 0.7A 8-Pin SOIC N T/R
The MIC2075 is high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2075 is internally current limited and has thermal shutdown that protects the device and load. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
MIC2075-2YM-TR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.20368 | $1.2 |
| 10+ | $1.13554 | $11.36 |
| 100+ | $1.07127 | $107.13 |
| 500+ | $1.01063 | $505.31 |
| 1000+ | $0.95343 | $953.43 |

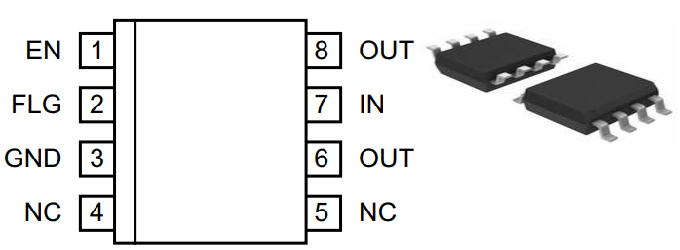

The following figure is the diagram of MIC2075 Pinout.
Pinout
The followings are MIC2075 Footprint, and 3D Model.

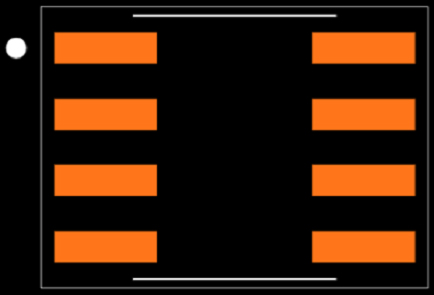

Footprint

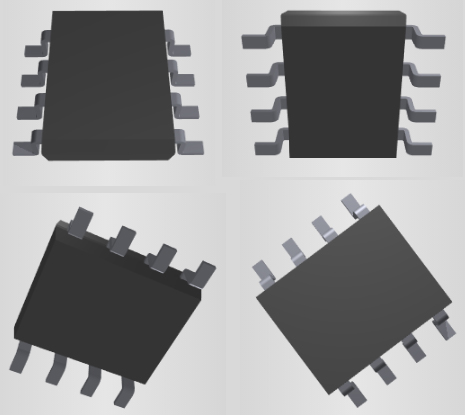

3D Model
The MIC2075 is high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2075 is internally current limited and has thermal shutdown that protects the device and load. The MIC2075 offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. The device employs soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is provided that is asserted during overcurrent and thermal shutdown conditions. The MIC2075 is available in the 8-Pin MSOP and 8-Pin SOIC packages.
This article will introduce MIC2075 systematically from its features, pinout to its specifications, applications, also including MIC2075 datasheet and so much more.
● 140 mΩ Maximum On-Resistance
● 2.7V to 5.5V Operating Range
● 500 mA Minimum Continuous Output Current
● Short-Circuit Protection with Thermal Shutdown
● Fault Status Flag with 3 ms Filter Eliminates False Assertions
● Undervoltage Lockout
● Reverse Current Flow Blocking (No “Body Diode”)
● Circuit Breaker Mode Reduces Power Consumption
● Logic-Compatible Input
● Soft-Start Circuit
● Low Quiescent Current
● Pin Compatible with MIC2525
Microchip Technology MIC2075-2YM-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2075-2YM-TR.
Microchip Technology MIC2075-2YM-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2075-2YM-TR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 7 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Supplier Device Package | 8-SOIC | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Series | MM8™ | |
| Published | 2010 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Resistance | 140MOhm | |
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -40°C | |
| Current Rating | 1.25A | |
| Base Part Number | MIC2075 | |
| Number of Outputs | 1Output | |
| Output Type | N-Channel | |
| Max Output Current | 500mA | |
| Interface | On/Off | |
| Output Configuration | High Side |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Input Type | Non-Inverting | |
| Switch Type | General Purpose | |
| Ratio - Input:Output | 1:1 | |
| Voltage - Load | 2.7V~5.5V | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, UVLO | |
| Rds On (Typ) | 90mOhm | |
| Features | Slew Rate Controlled, Status Flag | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

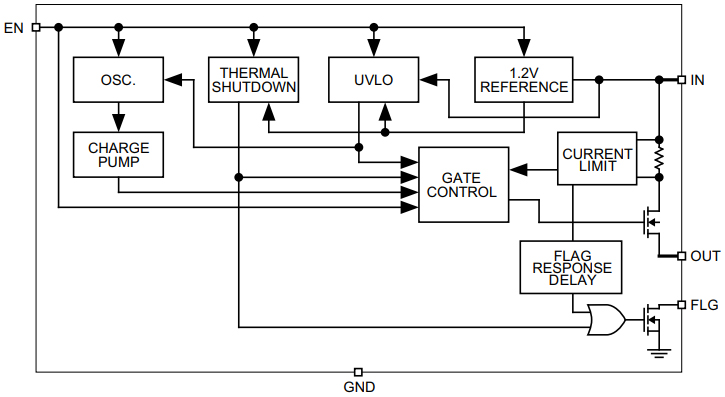

The following is the Functional Block Diagram of MIC2075.
Functional Block Diagram

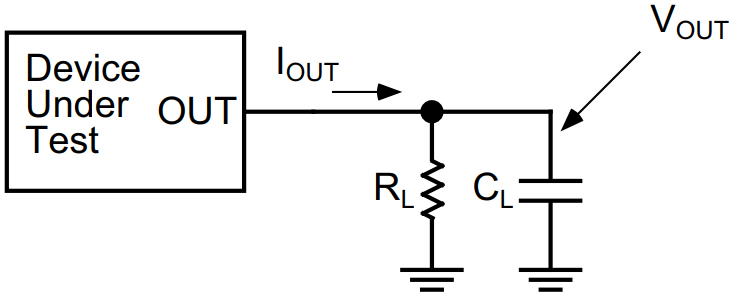

The following diagram shows the MIC2075 Test Circuit.
MIC2075 Test Circuit

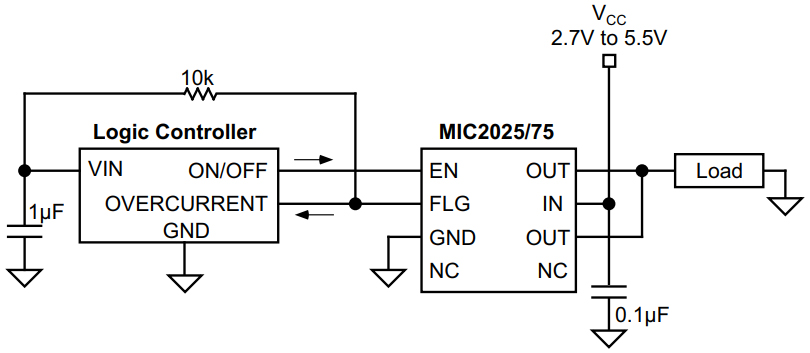

The following diagram shows the MIC2075 Typical Application Circuit.
Typical Application Circuit
| Model number | Manufacturer | Description |
| MIC2025-1YMM | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8 |
| MIC2075-1BMTR | Micrel Inc | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 |
| MIC2075-2BM | Micrel Inc | Power Supply Support Circuit Fixed 1 Channel PDSO8 |
| MIC2025-2BM | Microchip Technology Inc | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 |
| MIC2075-2BMTR | Microchip Technology Inc | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 |
| MIC2025-1BMTR | Microchip Technology Inc | Power Supply Support Circuit, Fixed, 1 Channel, PDSO8, SOIC-8 |
| MIC2025-1YMM-TR | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8 |
| MIC2025-2YMM | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8 |
| MIC2025-2YM-TR | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO8 |
| MIC2075-1BMM | Micrel Inc | Power Supply Support Circuit Fixed 1 Channel PDSO8 |
● USB Peripherals
● General Purpose Power Switching
● ACPI Power Distribution
● Notebook PCs
● PDAs
● PC Card Hot Swap

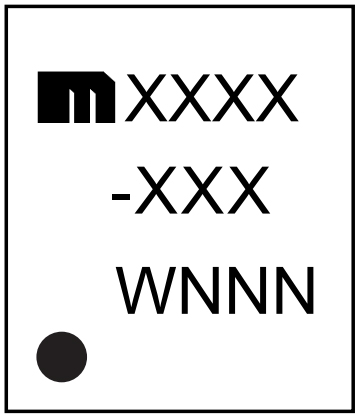

The following is the Package Marking Information of MIC2075.
8-Lead SOIC
Example

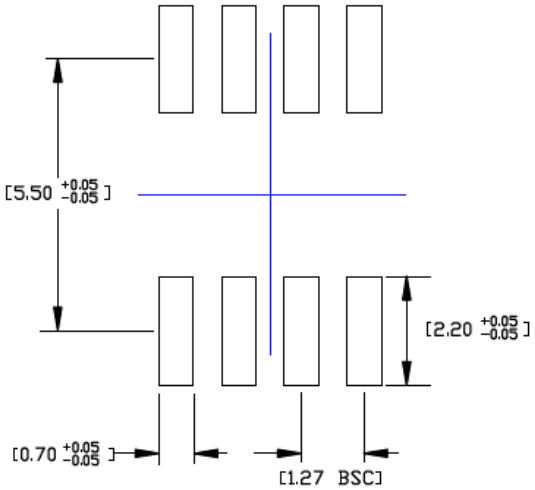

The following is the Recommended Land Pattern of MIC2075.
Recommended Land Pattern
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for MIC2075-2YM-TR
