MIC2077 MOSFET Switch: Pinout, Equivalent and Datasheet

PMIC - Power Distribution Switches, Load Drivers 16-SOIC (0.154, 3.90mm Width) USB Switch -40°C~85°C TA Slew Rate Controlled, Status Flag MIC2077 150MOhm USB Power SW Hi Side/DIST Quad 5.5V 0.9A 16-Pin SOIC N T/R

46

Nov 13, 2021

Debby Funk

How to use MOSFET as a Switch ? MOSFET as a Switch Explained



PMIC - Power Distribution Switches, Load Drivers 16-SOIC (0.154, 3.90mm Width) USB Switch -40°C~85°C TA Slew Rate Controlled, Status Flag MIC2077 150MOhm USB Power SW Hi Side/DIST Quad 5.5V 0.9A 16-Pin SOIC N T/R

The MIC2077 is quad high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2077 is internally current limited and has thermal shutdown that protects the device and load. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

MIC2077-1YM-TR

55In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $3.21948$3.22
10+ $3.03725$30.37
100+ $2.86533$286.53
500+ $2.70314$1351.57
1000+ $2.55013$2550.13
Unit Price:$3.21948
Subtotal: $3.22
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

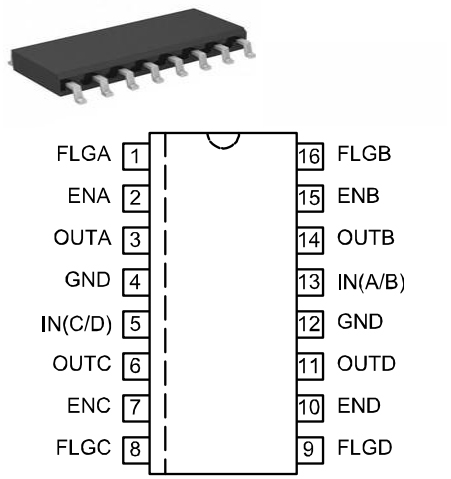

MIC2077 Pinout

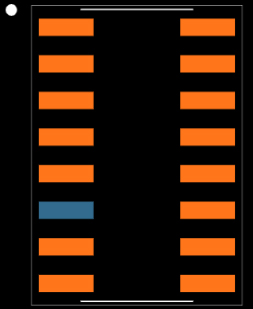

MIC2077 CAD Model

MIC2077 Overview

The MIC2077 is quad high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2077 is internally current limited and has thermal shutdown that protects the device and load. The MIC2077 offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output. The device employs soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed. A fault status output flag is asserted during overcurrent and thermal shutdown conditions. Transient current limit faults are internally filtered.

This article provides you with a basic overview of the MIC2077 power distribution switch, including its pin descriptions, features and specifications, etc., to help you quickly understand what MIC2077 is.

MIC2077 Features

● 150mΩ maximum on-resistance per channel

● 2.7V to 5.5V operating range

● 500mA minimum continuous current per channel

● Short-circuit protection with thermal shutdown

● Thermally isolated channels

● Fault status flag with 3ms filter eliminates false assertions

● Undervoltage lockout

● Reverse current flow blocking (no "body diode" )

● Circuit breaker mode reduces power consumption

● Logic-compatible inputs

● Soft-start circuit

● Low quiescent current

● Pin compatible with MIC2524 and MIC2527

Specifications

Microchip Technology MIC2077-1YM-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2077-1YM-TR.

MIC2077-1YM-TR Tech Specifications

Microchip Technology MIC2077-1YM-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2077-1YM-TR.

Product Attribute Attribute Value
Factory Lead Time10 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154, 3.90mm Width)
Number of Pins16Pins
Supplier Device Package16-SOIC
Operating Temperature-40°C~85°C TA
PackagingTape & Reel (TR)
Published2006
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Product Attribute Attribute Value
Resistance150MOhm
Max Operating Temperature85°C
Min Operating Temperature-40°C
Current Rating1.25A
Base Part NumberMIC2077
Number of Outputs4Outputs
Output Voltage6V
Output TypeN-Channel
Max Output Current500mA
InterfaceOn/Off
Max Supply Voltage5.5V
Product Attribute Attribute Value
Output ConfigurationHigh Side
Voltage - Supply (Vcc/Vdd)Not Required
Input TypeNon-Inverting
Switch TypeUSB Switch
Ratio - Input:Output2 x 1:2
Voltage - Load2.7V~5.5V
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, UVLO
Rds On (Typ)100mOhm
FeaturesSlew Rate Controlled, Status Flag
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

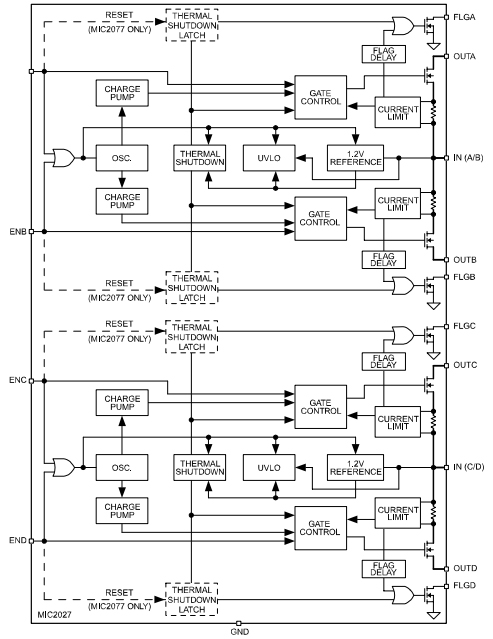

MIC2077 Functional Block Diagram

MIC2077 Equivalent

          Model number                       Manufacturer                                             Description
MIC2077-1BM Micrel Inc Power Supply Support Circuit, Fixed, 4 Channel, PDSO16, 0.150 INCH, SOIC-16
MIC2077-1BWMTR Micrel Inc Power Supply Support Circuit, Fixed, 4 Channel, PDSO16, 0.300 INCH, SOIC-16
MIC2077-1YM Microchip Technology Inc 4-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO16
MIC2077-1BMTR Microchip Technology Inc Power Supply Support Circuit, Fixed, 4 Channel, PDSO16, 0.150 INCH, SOIC-16
MIC2077-1BWM Microchip Technology Inc Power Supply Support Circuit, Fixed, 4 Channel, PDSO16, 0.300 INCH, SOIC-16
MIC2077-1YWM Microchip Technology Inc 4-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO16
MIC2077-1YWM-TR Microchip Technology Inc 4-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO16

MIC2077 Applications

● USB peripherals

● General purpose power switching

● ACPI power distribution

● Notebook PCs

● PDAs

● PC card hot swap

MIC2077 Typical Application

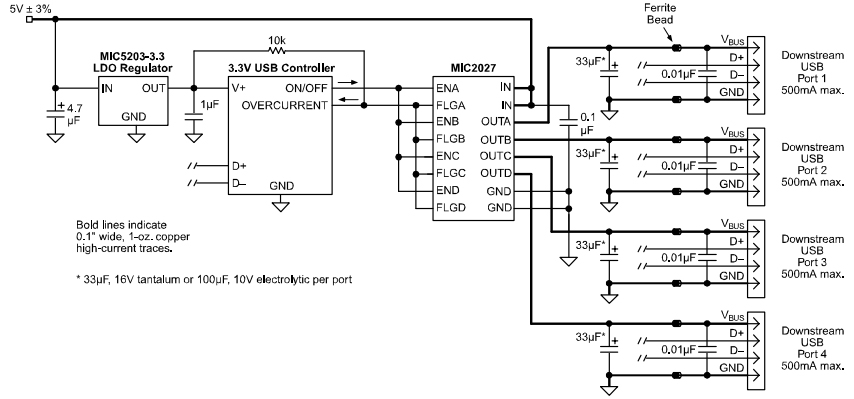

4-Port Self-Powered Hub

MIC2077 Package

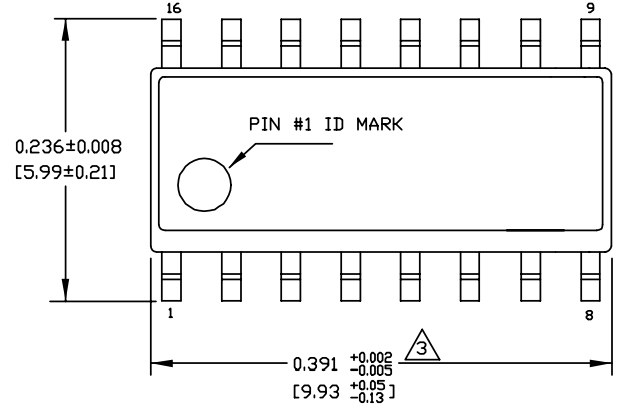

Top view

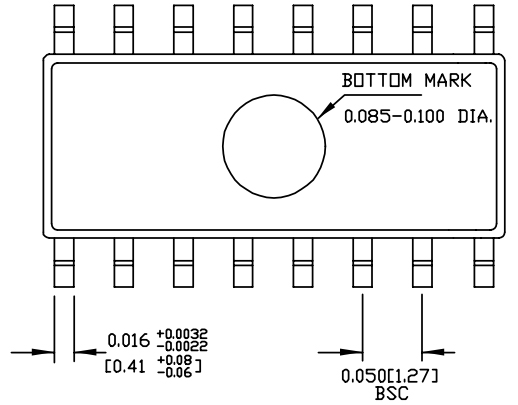

Bottom view

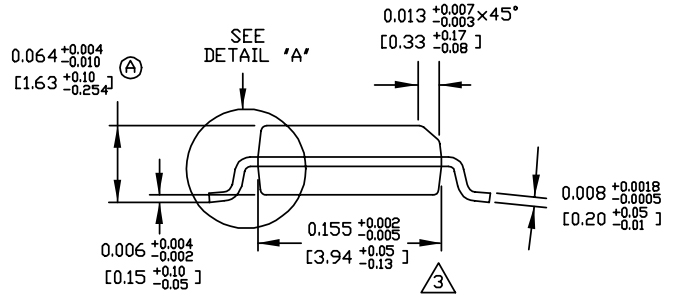

End view

MIC2077 Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Datasheet PDF

MIC2077-1YM-TR Documents

Download datasheets and manufacturer documentation for MIC2077-1YM-TR

Datasheets
MIC2027/2077
ConflictMineralStatement
Microchip-company-68.pdf
FAQ
What is the essential property of the MIC2077?
The MIC2077 is quad high-side MOSFET switch optimized for general-purpose power distribution requiring circuit protection. The MIC2077 is internally current limited and has thermal shutdown that protects the device and load.
How does the MIC2077 reduce current consumption in failure mode?
The MIC2077 offers “smart” thermal shutdown that reduces current consumption in fault modes. When a thermal shutdown fault occurs, the output is latched off until the faulty load is removed. Removing the load or toggling the enable input will reset the device output.
What circuit does the equipment use? What are the advantages of such circuit in applications?
The device employs soft-start circuitry that minimizes inrush current in applications where highly capacitive loads are employed.
