MIC2545A Programmable Current-Limit High-Side Switch: Pinout, Equivalent and Datasheet

USB Power SW Hi Side/DIST Single 5.5V 0.5A to 3A 8-Pin SOIC N The MIC2545A is integrated high-side power switch optimized for low-loss DC power switching and other power-management applications, including advanced configuration and power interface (ACPI).

112

Mar 21, 2022

Kay Bob

MOSFETs: High-Side vs Low-Side Switching

USB Power SW Hi Side/DIST Single 5.5V 0.5A to 3A 8-Pin SOIC N

The MIC2545A is integrated high-side power switch optimized for low-loss DC power switching and other power-management applications, including advanced configuration and power interface (ACPI). The MIC2545A's open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

MIC2545A-2YM

11561In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$4.09393	$4.09
10+	$3.86219	$38.62
100+	$3.64358	$364.36
500+	$3.43734	$1718.67
1000+	$3.24277	$3242.77

Unit Price:$4.09393

Subtotal: $4.09

Quick Links

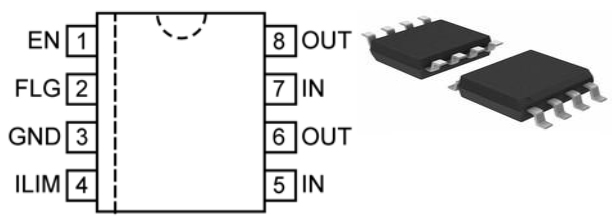

MIC2545A Pinout

The following figure is the diagram of MIC2545A Pinout.

Pinout

MIC2545A CAD Model

The followings are MIC2545A Footprint, and 3D Model.

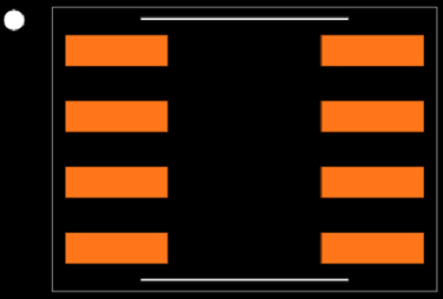

Footprint

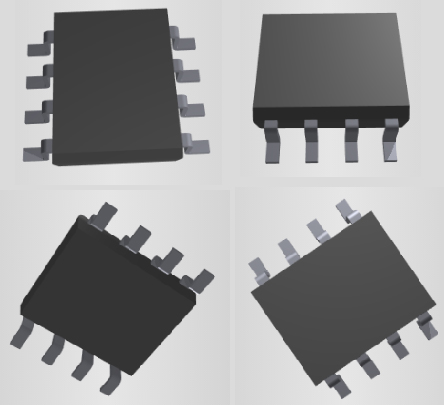

3D Model

MIC2545A Description

The MIC2545A is integrated high-side power switch optimized for low-loss DC power switching and other power-management applications, including advanced configuration and power interface (ACPI). The MIC2545A is a cost-effective, highly-integrated solution that requires few external components to satisfy USB and ACPI requirements. Load current management features include a precision, resistor-programmable output current-limit and a soft-start circuit, which minimizes inrush current when the switch is enabled. Thermal shutdown, along with adjustable current-limit, protects the switch and the attached device. The MIC2545A's open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller.

This article will introduce MIC2545A systematically from its features, pinout to its specifications, applications, also including MIC2545A datasheet and so much more.

MIC2545A Features

● 2.7V to 5.5V input

● Adjustable current-limit up to 3A

● Reverse current flow blocking

● 90μA typical on-state supply current

● 1μA typical off-state supply current

● 50mΩ maximum on-resistance

● Open-drain fault flag

● Thermal shutdown

● 2ms (slow) soft-start turn-on, fast turnoff

● Available with active-high or active-low enable

Specifications

MIC2545A-2YM Tech Specifications

Microchip Technology MIC2545A-2YM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2545A-2YM.

Product Attribute	Attribute Value
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Number of Pins	8Pins
Supplier Device Package	8-SOIC
Turn Off Delay Time	25 μs
Usage Level	Industrial grade
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2000
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Resistance	35mOhm
Max Operating Temperature	85°C
Min Operating Temperature	-40°C

Product Attribute	Attribute Value
Current Rating	3A
Base Part Number	MIC2545A
Number of Outputs	1Output
Output Type	N-Channel
Max Output Current	3A
Number of Channels	1Channel
Interface	On/Off
Max Supply Voltage	5.5V
Min Supply Voltage	2.7V
Nominal Supply Current	150μA
Output Configuration	High Side
Voltage - Supply (Vcc/Vdd)	Not Required
Input Type	Non-Inverting
Turn On Delay Time	5 ms
Switch Type	USB Switch
Min Input Voltage	2.7V

Product Attribute	Attribute Value
Max Input Voltage	5.5V
Nominal Input Voltage	5.5V
Ratio - Input:Output	1:1
Voltage - Load	2.7V~5.5V
Fault Protection	Current Limiting (Adjustable), Over Temperature, Reverse Current
Rds On (Typ)	35mOhm
Features	Slew Rate Controlled, Status Flag
Height	1.48mm
Length	4.93mm
Width	3.94mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

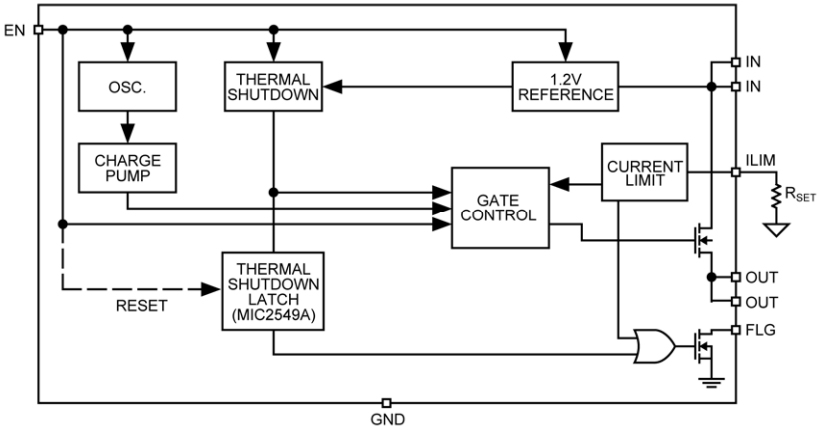

MIC2545A Functional Block Diagram

The following is the Block Diagram of MIC2545A.

Block Diagram

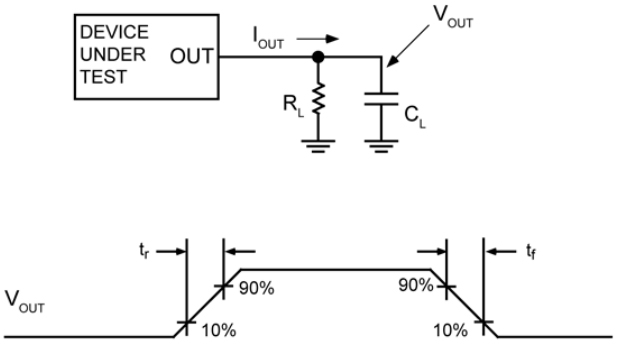

MIC2545A Functional Characteristics Test Circuit

The following diagram shows the MIC2545A Functional Characteristics Test Circuit.

Functional Characteristics Test Circuit

MIC2545A Equivalent

Model number	Manufacturer	Description
MIC2545A-2YN	Microchip Technology Inc	0.5A BUF OR INV BASED PRPHL DRVR, PDIP8
MIC2545A-2BM	Microchip Technology Inc	Buffer/Inverter Based Peripheral Driver, 1 Driver, 0.5A, CMOS, PDSO8, SOIC-8
MIC2545A-1BTS	Rochester Electronics LLC	0.5A BUF OR INV BASED PRPHL DRVR, PDSO14, TSSOP-14
L99DZ70XP	STMicroelectronics	Door actuator driver with 6 bridges for double door lock control, mirror fold and mirror axis control, highside driver for mirror
MIC2545A-2YM	Microchip Technology Inc	0.5A BUF OR INV BASED PRPHL DRVR, PDSO8
MIC2545A-1YN	Microchip Technology Inc	0.5A BUF OR INV BASED PRPHL DRVR, PDIP8
MIC2545A-1YTS	Microchip Technology Inc	0.5A BUF OR INV BASED PRPHL DRVR, PDSO14
MIC2545A-2YTS	Microchip Technology Inc	0.5A BUF OR INV BASED PRPHL DRVR, PDSO14
MIC2545A-1BMTR	Rochester Electronics LLC	0.5A BUF OR INV BASED PRPHL DRVR, PDSO8, SOIC-8
MIC2545A-2YM-TR	Microchip Technology Inc	0.5A BUF OR INV BASED PRPHL DRVR, PDSO8

MIC2545A Applications

● USB power distribution

● PCI Bus Power Switching

● Notebook PC

● ACPI power distribution

● PC card hot swap applications

● Inrush current-limiting

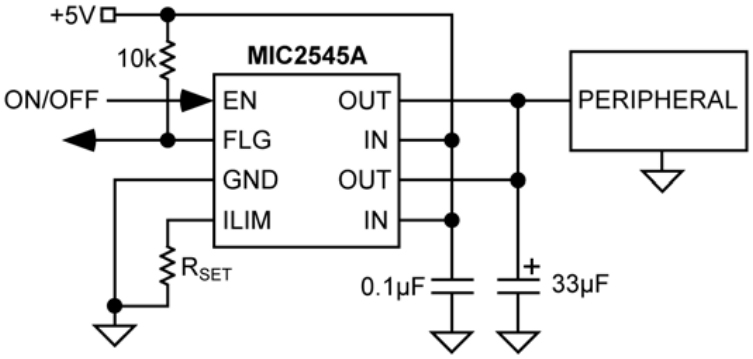

MIC2545A Typical Application

The following figure is the diagram of MIC2545A Typical Application.

Typical Application

MIC2545A Package

The following diagrams show the MIC2545A Package.

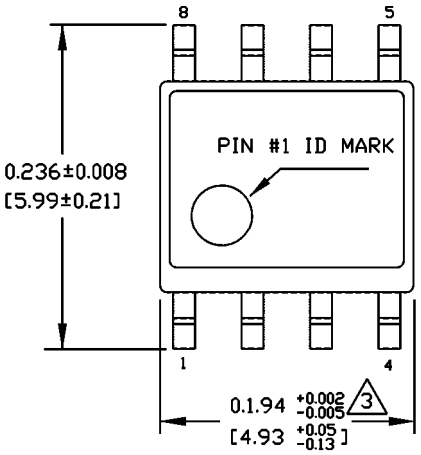

Top View

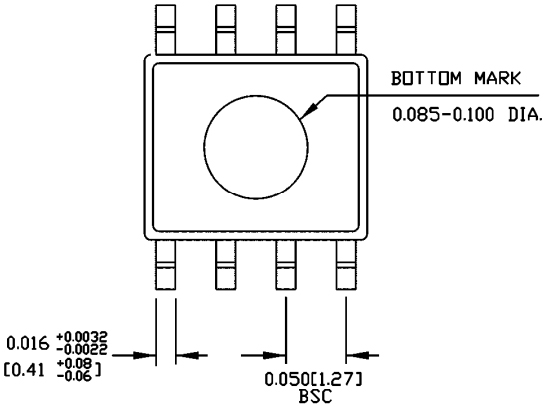

Bottom View

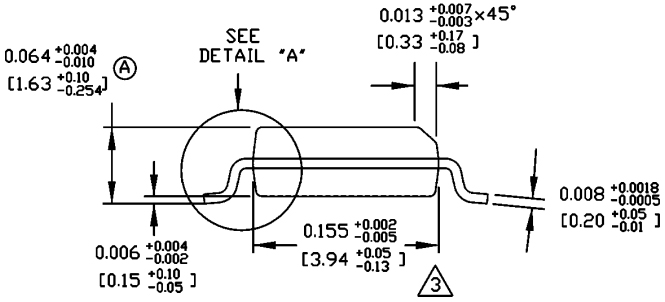

End View

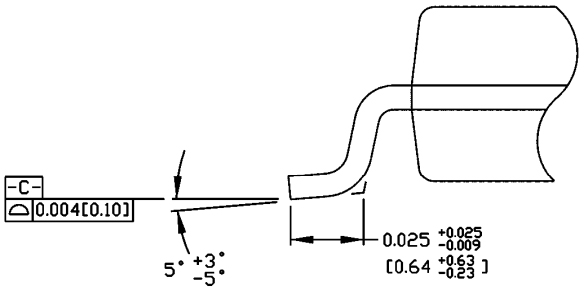

Detail “A”

MIC2545A Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Datasheet PDF

MIC2545A-2YM Documents

Download datasheets and manufacturer documentation for MIC2545A-2YM

PCN Assembly/Origin

Wafer Size Update 02/Sep/2015

Datasheets

MIC2545A, MIC2549A

PCN Design/Specification

Copper Bond Wire Revision 02/Jun/2014

Silver Bonding Wire 17/Apr/2015

PCN Packaging

Packing Changes 10/Oct/2016

ConflictMineralStatement

Microchip-company-68.pdf

Frequently Asked Questions

How many pins of MIC2545A-2YM?

8 Pins.

What’s the operating temperature of MIC2545A-2YM?

-40°C~85°C TA.

What is the essential property of the MIC2545A?

The MIC2545A is integrated high-side power switch optimized for low-loss DC power switching and other power-management applications, including advanced configuration and power interface (ACPI).
