MIC2548 Programmable Current-Limit High-Side Switch: Pinout, Equivalent and Datasheet

USB Power SW Hi Side/DIST Single 5.5V 0.1A to 1.5A 8-Pin SOIC N Tube The MIC2548 is integrated, high-side power switch optimized for low-loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI).

143

Feb 3, 2022

Steward Hudson

How to Build a High Side Switch



USB Power SW Hi Side/DIST Single 5.5V 0.1A to 1.5A 8-Pin SOIC N Tube

The MIC2548 is integrated, high-side power switch optimized for low-loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2548 is cost-effective, highly integrated solution that require few external components to satisfy USB and ACPI requirements. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

MIC2548-1YM

5000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $4.69479$4.69
10+ $4.42905$44.29
100+ $4.17835$417.84
500+ $3.94184$1970.92
1000+ $3.71871$3718.71
Unit Price:$4.69479
Subtotal: $4.69
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

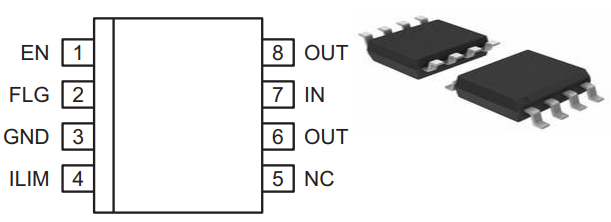

MIC2548 Pinout

The following figure is the diagram of MIC2548 pinout.

Pinout

MIC2548 CAD Model

The followings are MIC2548 Footprint, and 3D Model.

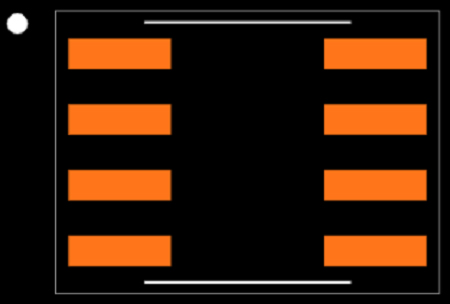

Footprint



3D Model



MIC2548 Overview

The MIC2548 is integrated, high-side power switch optimized for low-loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI). The MIC2548 is cost-effective, highly integrated solution that require few external components to satisfy USB and ACPI requirements. The MIC2548's open-drain flag output is used to indicate current-limiting or thermal shutdown to a local controller. The MIC2548 has an additional internal latch that turns the output off upon thermal shutdown, providing robust fault control. The enable signal is compatible with both 3V and 5V logic, and is also used as the thermal shutdown latch reset for the MIC2548. The MIC2548 is available in active-high and active-low enable versions in the 8-pin SOIC and 8-pin MSOP packages. The MIC2548 is high-side N-channel switch available with active-high or active-low enable inputs.

This article will introduce MIC2548 systematically from its features, pinout to its specifications, applications, also including MIC2548 datasheet and so much more.

MIC2548 Features

● 2.7V to 5.5V Input

● Adjustable Current-Limit up to 1.5A

● Reverse Current Flow Blocking (No“Body Diode")

● 75 μA Typical On-State Supply Current

● 1 μA Typical Off-State Supply Current

● 120 mΩ Maximum On-Resistance

● Open-Drain Fault Flag

● Thermal Shutdown

● Thermal Shutdown Output Latch

● 2 ms (Slow) Turn-On and Fast Turn-Off

● Available with Active-High or Active-Low Enable

Specifications

Microchip Technology MIC2548-1YM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2548-1YM.

MIC2548-1YM Tech Specifications

Microchip Technology MIC2548-1YM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2548-1YM.

Product Attribute Attribute Value
Factory Lead Time10 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154, 3.90mm Width)
Number of Pins8Pins
Supplier Device Package8-SOIC
Turn Off Delay Time22 μs
Usage LevelIndustrial grade
Operating Temperature-40°C~85°C TA
PackagingTube
Published2010
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Product Attribute Attribute Value
Resistance120mOhm
Max Operating Temperature85°C
Min Operating Temperature-40°C
Base Part NumberMIC2548
Number of Outputs1Output
Output TypeN-Channel
Max Output Current1.5A
InterfaceOn/Off
Max Supply Voltage5.5V
Min Supply Voltage2.7V
Nominal Supply Current75μA
Output ConfigurationHigh Side
Voltage - Supply (Vcc/Vdd)Not Required
Product Attribute Attribute Value
Input TypeNon-Inverting
Turn On Delay Time5 ms
Switch TypeUSB Switch
Ratio - Input:Output1:1
Voltage - Load2.7V~5.5V
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature
Rds On (Typ)80mOhm
FeaturesStatus Flag
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

MIC2548 Functional Block Diagram

The following is the Block Diagram of MIC2548.

Functional Diagram

MIC2548 Equivalent

            Model number                     Manufacturer                                           Description
MIC2548-2YM Microchip Technology Inc 0.1A BUF OR INV BASED PRPHL DRVR, PDSO8
MIC2548-2BM Microchip Technology Inc Buffer/Inverter Based Peripheral Driver, 1 Driver, 0.1A, CMOS, PDSO8, SOP-8
MIC2548-1BMMTR Microchip Technology Inc Buffer/Inverter Based Peripheral Driver, 1 Driver, 0.1A, CMOS, PDSO8, MSOP-8
MIC2548A-2YMM-TR Microchip Technology Inc 0.1A BUF OR INV BASED PRPHL DRVR, PDSO8
MIC2548A-1YM-TR Microchip Technology Inc 0.1A BUF OR INV BASED PRPHL DRVR, PDSO8
MIC2548-2BMM Micrel Inc Buffer/Inverter Based Peripheral Driver 1 Driver 0.1A CMOS PDSO8
MIC2548-2YMM Microchip Technology Inc 0.1A BUF OR INV BASED PRPHL DRVR, PDSO8
MIC2548-1YMM Microchip Technology Inc 0.1A BUF OR INV BASED PRPHL DRVR, PDSO8
MIC2548-1YMM-TR Microchip Technology Inc 0.1A BUF OR INV BASED PRPHL DRVR, PDSO8
MIC2548A-1YMM-TR Microchip Technology Inc 0.1A BUF OR INV BASED PRPHL DRVR, PDSO8

MIC2548 Applications

● USB Power Distribution

● PCI Bus Power Switching

● Notebook PC

● ACPI Power Distribution

● PC Card Hot Swap Applications

● Inrush Current-Limiting

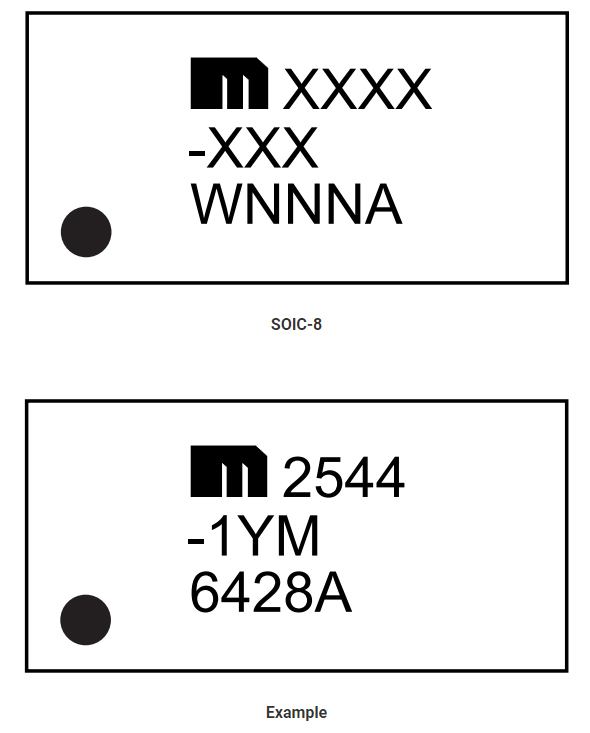

MIC2548 Package Marking Information

The following is the Package Marking Information of MIC2548.

MIC2548 Recommended Land Pattern

The following diagram showa the MIC2548 Recommended Land Pattern.

Recommended Land Pattern

MIC2548 Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.



Datasheet PDF

MIC2548-1YM Documents

Download datasheets and manufacturer documentation for MIC2548-1YM

Frequently Asked Questions

How many pins of MIC2548?
8 Pins.
What’s the operating temperature of MIC2548?
-40°C~85°C TA.
What is the essential property of the MIC2548?
The MIC2548 is integrated, high-side power switch optimized for low-loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI).
What effect does the integrated charge pump have on the high and low impedance values of the MIC2548 when it is turned on and off?
The MIC2548 is ideal inrush current-limiters suitable for hot-plug applications. Due to the integrated charge pump, the MIC2548 presents a high impedance when off and slowly becomes a low impedance as it turns on.
FAQ
How many pins of MIC2548?
8 Pins.
What’s the operating temperature of MIC2548?
-40°C~85°C TA.
What is the essential property of the MIC2548?
The MIC2548 is integrated, high-side power switch optimized for low-loss DC power switching and other power management applications, including Advanced Configuration and Power Interface (ACPI).
What effect does the integrated charge pump have on the high and low impedance values of the MIC2548 when it is turned on and off?
The MIC2548 is ideal inrush current-limiters suitable for hot-plug applications. Due to the integrated charge pump, the MIC2548 presents a high impedance when off and slowly becomes a low impedance as it turns on.
