PCMCIA Card Socket 16-Pin SOIC W
The MIC2560 is a low-resistance power MOSFET switching matrix that operates from the computer system main power supply. The MIC2560 is designed for efficient operation. The MIC2560 provides power management capability under the control of the PC Card controller. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
MIC2560-1YWM
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.48056 | $5.48 |
| 10+ | $5.17034 | $51.7 |
| 100+ | $4.87768 | $487.77 |
| 500+ | $4.60158 | $2300.79 |
| 1000+ | $4.34112 | $4341.12 |

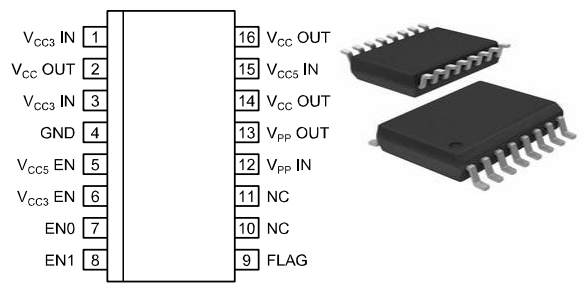

The following figure is the diagram of MIC2560 pinout.

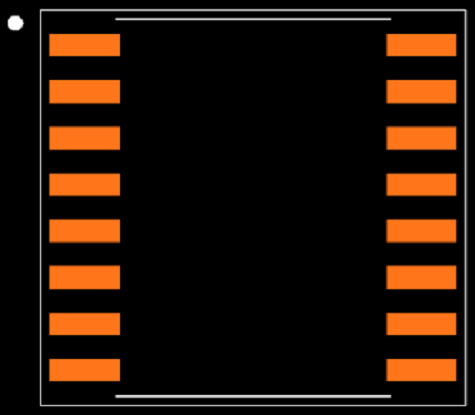

The following is MIC2560 Footprint.
Footprint
The MIC2560 is a low-resistance power MOSFET switching matrix that operates from the computer system main power supply. The MIC2560 is designed for efficient operation. The MIC2560 provides power management capability under the control of the PC Card controller. The MIC2560 VCC and VPP Matrix controls PCMCIA (Personal Computer Memory Card International Association) memory card power supply pins, both VCC and VPP. The MIC2560 switches voltages from the system power supply to VCC and VPP. The MIC2560 switches between the three VCC voltages (OFF, 3.3V and 5.0V) and the VPP voltages (OFF, 0V, 3.3V, 5V, or 12.0V) required by PCMCIA cards. Output voltage is selected by two digital inputs for each output and output current ranges up to 1A for VCC and 200mA for VPP. The MIC2560 provides power management capability under the control of the PC Card controller and features over current and thermal protection of the power outputs, zero current “sleep” mode, suspend mode, low power dynamic mode, and on-off control of the PCMCIA socket power. The MIC2560 is designed for efficient operation. In standby (sleep) mode the device draws very little quiescent current, typically 0.01µA. The device and PCMCIA ports are protected by current limiting and overtemperature shutdown. Full cross-conduction lockout protects the system power supply.
This article will introduce MIC2560 systematically from its features, pinout to its specifications, applications, also including MIC2560 datasheet and so much more.
● Complete PCMCIA VCC and VPP switch matrix in a single IC
● No external components required
● Logic compatible with industry standard PCMCIA controllers
● No voltage overshoot or switching transients
● Break-before-make switching
● Output current limit and overtemperature shutdown
● Digital flag for error condition indication
● Ultra-low power consumption
● Digital selection of VCC and VPP voltages
● Over 1A VCC output current
● 200mA VPP (12V) output current
● Options for direct compatibility with industry standard PCMCIA controllers
● 16-Pin SOIC package
Microchip Technology MIC2560-1YWM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2560-1YWM.
Microchip Technology MIC2560-1YWM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2560-1YWM.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 16 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-SOIC (0.295, 7.50mm Width) | |
| Supplier Device Package | 16-SOIC | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| Published | 2006 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Resistance | 1Ohm | |
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -40°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current Rating | 200mA | |
| Base Part Number | MIC2560 | |
| Number of Outputs | 2Outputs | |
| Output Type | N-Channel | |
| Max Output Current | 200mA | |
| Operating Supply Voltage | 12V | |
| Interface | Logic | |
| Current - Output (Max) | 200mA | |
| Output Configuration | Low Side | |
| Output Current | 200mA | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Max Supply Current | 50μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Type | Non-Inverting | |
| Switch Type | PCMCIA Switch | |
| Ratio - Input:Output | 3:2 | |
| Voltage - Load | 3.3V 5V 12V | |
| Fault Protection | Current Limiting (Fixed), Over Temperature | |
| Rds On (Typ) | 550mOhm | |
| Features | Status Flag | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following is the Logic Block Diagram of MIC2560.
Logic Block Diagram
| Model number | Manufacturer | Description |
| MIC2560-1BWM | Micrel Inc | Power Supply Support Circuit Fixed 1 Channel PDSO16 |
| MIC2560-0BWMT&R | Micrel Inc | Power Supply Support Circuit, Fixed, 1 Channel, PDSO16, SOIC-16 |
| MIC2560-2BWMT&R | Micrel Inc | Power Supply Support Circuit, Fixed, 3 Channel, PDSO16, SOIC-16 |
| MIC2560-1YWM-TR | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO16 |
| MIC2560-1BWMT&R | Micrel Inc | Power Supply Support Circuit, Fixed, 1 Channel, PDSO16, SOIC-16 |
● PCMCIA power supply pin voltage switch
● Font cards for printers and scanners
● Data-collection systems
● Machine control data input systems
● Wireless communications
● Bar code data collection systems
● Instrumentation configuration/data-logging
● Docking stations (portable and desktop)
● Power supply management
● Power analog switching
The following is the Typical Application of MIC2560.
Typical Application
The following diagrams show the MIC2560 package.
Top View
Bottom View
End View

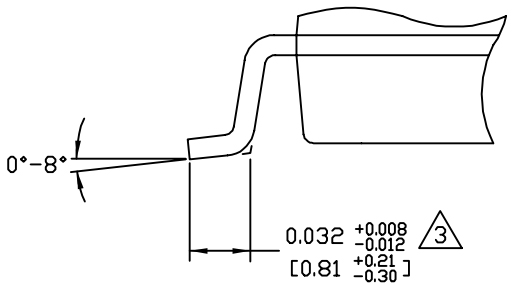

Detail “A”
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
