IC PWR SWITCH N-CHAN 3:2 14SOIC
The MIC2562A is designed for efficient operation. The MIC2562A provides power management capability controlled by the PC Card logic controller. The MIC2562A is an improved version of the MIC2562, offering lower on-resistance and a VCC pull-down clamp in the OFF mode. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
MIC2562A-0YM
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.72634 | $2.73 |
| 10+ | $2.57202 | $25.72 |
| 100+ | $2.42643 | $242.64 |
| 500+ | $2.28909 | $1144.54 |
| 1000+ | $2.15952 | $2159.52 |
The following figure is the diagram of MIC2562A pinout.
Pinout
The followings are MIC2562A Footprint and 3D Model.

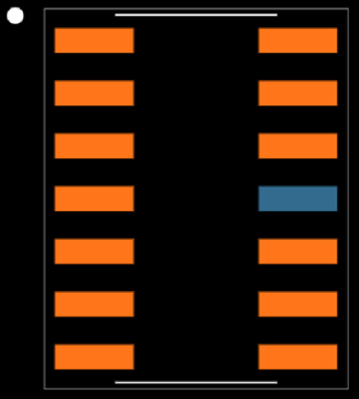

Footprint

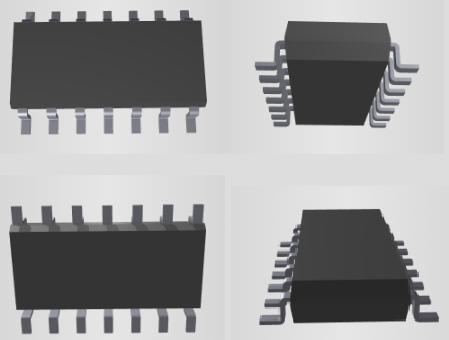

3D Model
The MIC2562A PCMCIA (Personal Computer Memory Card International Association) and CardBus power controller handles all PC Card slot power supply pins, both Vcc and Vpp. The MIC2562A switches between the three Vcc voltages (0V, 3.3V and 5.0V) and the Vpp voltages (OFF, 0V, 3.3V, 5V or 12.0V) required by PC Cards. The MIC2562A switches voltages from the system power supply to Vcc and Vpp. Output voltage is selected by two digital inputs each and output current ranges up to 1A for Vcc and 250mA for VPP.
The MIC2562A provides power management capability controlled by the PC Card logic controller. Voltage rise and fall times are well controlled. Medium current Vpp and high current Vcc output switches are self-biasing: no +12V supply is required for 3.3V or 5V output. The MIC2562A is designed for efficient operation. In standby (sleep) mode, the device draws very little quiescent current, typically 0.3μA. The device and PCMCIA port is protected by current limiting and overtemperature shutdown. Full cross-conduction lockout protects the system power supply during switching operations. The MIC2562A is an improved version of the MIC2562, offering lower on-resistance and a VCC pull-down clamp in the OFF mode. It is available in a 14-pin (0.150") SOlC, and the -1 logic option is also available in 16-pin TSSOP.
This article will introduce MIC2562A systematically from its features, pinout to its specifications, applications, also including MIC2562A datasheet and so much more.
● High-efficiency, low-resistance switches require no 12V bias supply
● No external components required
● Output current limit and overtemperature shutdown
● Open-drain flag for error condition indication
● Ultra-low power consumption
● Complete PC Card/CardBus Vcc and Vpp switch matrix in a single package
● Logic compatible with industry standard PC Card logic controllers
● No voltage shoot-through or switching transients
● Break-before-make switching
● Digital selection of Vcc and Vpp voltages
● Over 1A Vcc output current
● Over 200mA Vpp output current
● Pb-free SOIC packages
● UL recognized, file # 179633
Microchip Technology MIC2562A-0YM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2562A-0YM.
Microchip Technology MIC2562A-0YM technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC2562A-0YM.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 9 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 14Pins | |
| Supplier Device Package | 14-SOIC | |
| Usage Level | Industrial grade | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| Published | 2004 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Resistance | 150MOhm |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -40°C | |
| Max Power Dissipation | 800mW | |
| Current Rating | 1.5A | |
| Base Part Number | MIC2562A | |
| Number of Outputs | 2Outputs | |
| Output Type | N-Channel | |
| Max Output Current | 200mA | |
| Operating Supply Voltage | 12V | |
| Interface | Logic | |
| Output Configuration | Low Side | |
| Output Current | 1A | |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Supply Current | 100μA | |
| Input Type | Non-Inverting | |
| Switch Type | PCMCIA Switch | |
| Ratio - Input:Output | 3:2 | |
| Voltage - Load | 3.3V 5V 12V | |
| Fault Protection | Current Limiting (Fixed), Over Temperature | |
| Rds On (Typ) | 70mOhm | |
| Features | Status Flag | |
| Height | 1.48mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

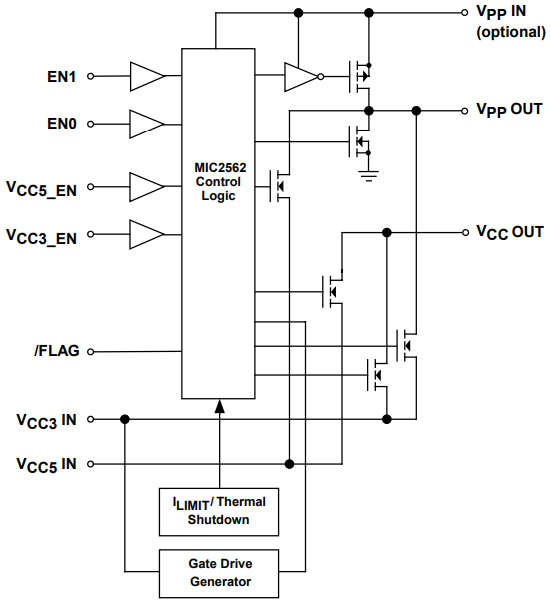

The following is the Logic Block Diagram of MIC2562A.
Logic Block Diagram
| Model number | Manufacturer | Description |
| TPS65563ARGTRG4 | Texas Instruments | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PQCC16, 3 X 3 MM, GREEN, PLASTIC, QFN-16 |
| MIC2562A-1YTSTR | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO16, LEAD FREE, TSSOP-16 |
| MIC2562A-1BTSTR | Microchip Technology Inc | Power Supply Support Circuit, Adjustable, 1 Channel, PDSO16, TSSOP-16 |
| MIC2562A-1YTS | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO16 |
| MIC2562-0BM | Rochester Electronics LLC | 4-CHANNEL POWER SUPPLY MANAGEMENT CKT, PDSO14, 0.150 INCH, SOIC-14 |
| TPS65563ARGTT | Texas Instruments | Integrated photo flash charger and IGBT driver with 2A Iout 16-VQFN -35 to 85 |
| TPS65563ARGTR | Texas Instruments | Integrated photo flash charger and IGBT driver with 2A Iout 16-VQFN -35 to 85 |
● PC Card power supply pin voltage switch
● CardBus slot power supply control
● Data collection systems
● Machine control data input systems
● Wireless communications
● Bar code data collection systems
● Instrumentation configuration/datalogging
● Docking stations (portable and desktop)
● Power supply management
● Analog power switching

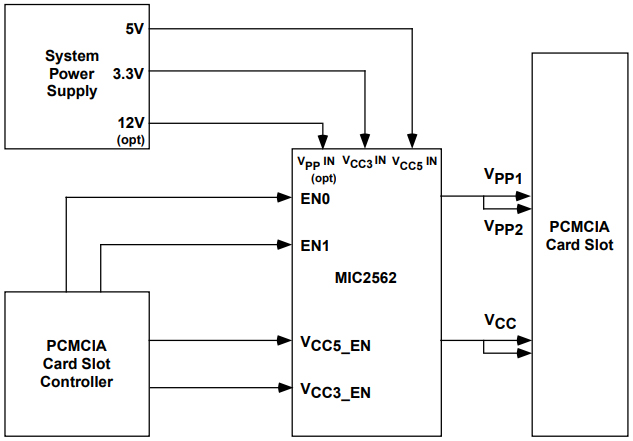

The following diagram shows the MIC2562A Typical Application.
Typical Application
The following diagrams show the MIC2562A package.
Top View

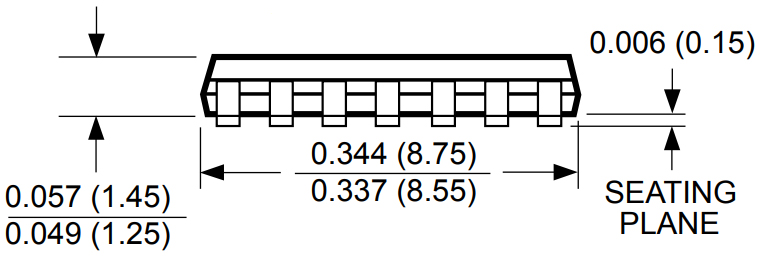

Side View

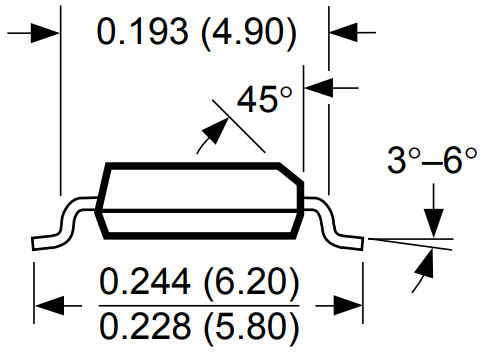

End View
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for Microchip Technology MIC2562A-0YM.
Download datasheets and manufacturer documentation for MIC2562A-0YM
