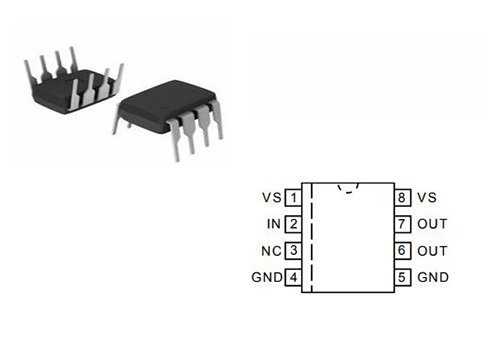

MIC4452YN IC GATE DRVR LOW-SIDE 8DIP: Datasheet, Pinout, and Equivalents

The MIC4452YN CMOS MOSFET driver is robust, efficient, and easy to use. The MIC4451 is an inverting driver, while the MIC4452YN is a non-inverting driver.

MIC4452YN is capable of 12A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4451/52 accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge.

MIC4452YN drivers can replace three or more discrete components, reducing PCB area requirements, simplifying product design, and reducing assembly cost.

• BiCMOS/DMOS Construction

• Latch-Up Proof: Fully Isolated Process is Inherently Immune to Any Latch-Up

• Input Will Withstand Negative Swing of up to 5V

• Matched Rise and Fall Times: 25 ns

• High Peak Output Current: 12A

• Wide Operating Range: 4.5V to 18V

• High Capacitive Load Drive: 62,000 pF

• Low Delay Time: 30 ms (Typ.)

• Logic High Input for Any Voltage from 2.4V to VS

• Low Supply Current 450 µA with Logic 1 Input

• Low Output Impedance: 1.0Ω

• Output Voltage Swing to within 25 mV of GND or VS

• Low Equivalent Input Capacitance: 7 pF (Typ.)

MIC4452YN Block Diagram

MIC4452YN Symbol

MIC4452YN Footprint

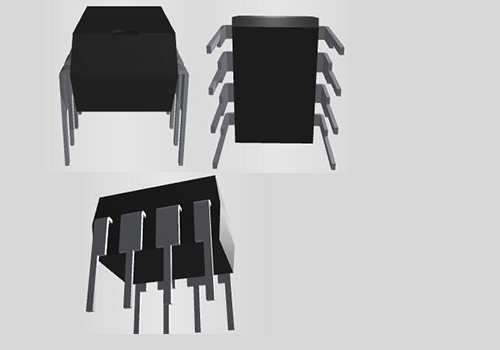

MIC4452YN 3D Model

• Switch Mode Power Supplies

• Motor Controls

• Pulse Transformer Driver

• Class-D Switching Amplifier

• Line Drivers

• Driving MOSFET or IGBT Parallel Chip Modules

• Local Power ON/OFF Switch

• Pulse Generators
