MIC4605 MOSFET Driver: Pinout, Equivalent and Datasheet

PMIC - Gate Drivers 10-UFDFN Exposed Pad 5.5V~16V -40°C~125°C TJ Non-Inverting MIC4605 IC MOSFET DVR 85V HALF BRDG The MIC4605 is an 85V half-bridge MOSFET driver that features adaptive dead time and shoot-through protection.

86

Nov 10, 2021

Aurora Tuttle

Here is why MOSFET drivers are sometimes essential! || MOSFET Driver Part 1 (Driver, Bootstrapping)



PMIC - Gate Drivers 10-UFDFN Exposed Pad 5.5V~16V -40°C~125°C TJ Non-Inverting MIC4605 IC MOSFET DVR 85V HALF BRDG

The MIC4605 is an 85V half-bridge MOSFET driver that features adaptive dead time and shoot-through protection. The adaptive dead-time circuitry actively monitors the half-bridge outputs to minimize the time between high-side and low-side MOSFET transitions, thus maximizing power efficiency. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

MIC4605-2YMT-TR

20780In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $2.13075$2.13
10+ $2.01014$20.1
100+ $1.89636$189.64
500+ $1.78902$894.51
1000+ $1.68775$1687.75
Unit Price:$2.13075
Subtotal: $2.13
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

MIC4605 Pinout

Pinout

MIC4605 CAD Model

PCB Symbol

PCB Footprint

3D Model

MIC4605 Overview

The MIC4605 is an 85V half-bridge MOSFET driver that features adaptive dead time and shoot-through protection. The adaptive dead-time circuitry actively monitors the half-bridge outputs to minimize the time between high-side and low-side MOSFET transitions, thus maximizing power efficiency. Shoot-through protection circuitry prevents erroneous inputs and noise from turning both MOSFETS on at the same time. The MIC4605 is available in an 8-pin SOIC package and a tiny 10-pin 2.5 mm x 2.5 mm TDFN package. Both packages have an operating junction temperature range of -40°C to +125°C. The MIC4605 also offers a wide 5.5V to 16V operating supply range to maximize system efficiency. The low 5.5V operating voltage allows longer run times in battery-powered applications. Additionally, the MIC4605 device's adjustable gate drive sets the gate drive voltage to VDD for optimal MOSFET RDS(ON), which minimizes power loss due to the MOSFET's RDS(ON).

This article provides you with a basic overview of the MIC4605 MOSFET Driver, including its pin descriptions, features and specifications, etc., to help you quickly understand what MIC4605 is.

MIC4605 Features

● 5.5V to 16V Gate Drive Supply Voltage Range

● Advanced Adaptive Dead Time

● Intelligent Shoot-Through Protection:

   ◆ MIC4605-1: Dual TTL inputs

   ◆ MIC4605-2: Single PWM input

● Enable Input for On/Off Control

● On-Chip Bootstrap Diode

● Fast 35 ns Propagation Times

● Drives 1000 pF Load with 20 ns Rise and Fall Times

● Low-Power Consumption: 135 µA Quiescent Current

● Separate High-Side and Low-Side Undervoltage Protection

● -40°C to +125°C Junction Temperature Range

● AEC-Q100 Qualified for the SOIC Package

Specifications

Microchip Technology MIC4605-2YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC4605-2YMT-TR.

MIC4605-2YMT-TR Tech Specifications

Microchip Technology MIC4605-2YMT-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC4605-2YMT-TR.

Product Attribute Attribute Value
Factory Lead Time8 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case10-UFDFN Exposed Pad
Number of Pins10Pins
Supplier Device Package10-TDFN (2.5x2.5)
Driver ConfigurationHalf-Bridge
Logic voltage-VIL, VIH0.8V 2.2V
Operating Temperature-40°C~125°C TJ
PackagingTape & Reel (TR)
Published2016
Part StatusActive
Product Attribute Attribute Value
Moisture Sensitivity Level (MSL)1 (Unlimited)
Max Operating Temperature125°C
Min Operating Temperature-40°C
Voltage - Supply5.5V~16V
Base Part NumberMIC4605
Number of Outputs2Outputs
Output Voltage1.9V
Max Output Current1A
Max Supply Voltage16V
Min Supply Voltage5.25V
Element ConfigurationSingle
Nominal Supply Current135μA
Product Attribute Attribute Value
Input TypeNon-Inverting
Rise Time20ns
Fall Time (Typ)20 ns
Rise / Fall Time (Typ)20ns 20ns
Channel TypeIndependent
Number of Drivers2Drivers
Gate TypeN-Channel MOSFET
Current - Peak Output (Source, Sink)1A 1A
High Side Voltage - Max (Bootstrap)108V
RoHS StatusROHS3 Compliant
0 Products View Similar

MIC4605 Functional Block Diagram

Top-Level Block Diagram

MIC4605 Equivalent

               Model number                Manufacturer                                          Description
MIC4605-1YM-T5 Microchip Technology Inc HALF BRDG BASED MOSFET DRIVER
MIC4605-2YM-T5 Microchip Technology Inc HALF BRDG BASED MOSFET DRIVER
MIC4605-2YM Microchip Technology Inc HALF BRDG BASED MOSFET DRIVER
MIC4605-2YM-TR Microchip Technology Inc HALF BRDG BASED MOSFET DRIVER
MIC4605-1YMT-TR Microchip Technology Inc HALF BRDG BASED MOSFET DRIVER
MIC4605-2YMT-T5 Microchip Technology Inc HALF BRDG BASED MOSFET DRIVER

MIC4605 Applications

● Fans

● Power Inverters

● High-Voltage Step-Down Regulators

● Half, Full and 3-Phase Bridge Motor Drives

● Appliances

● E-Bikes

● Automotive Applications

MIC4605 Package

Top view

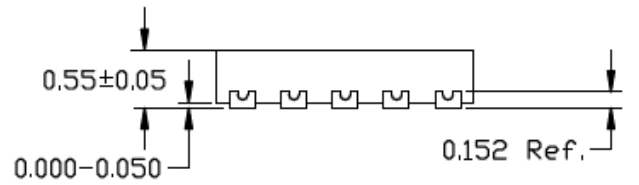

Side view

Bottom view

Recommended Land Pattern

MIC4605 Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Datasheet PDF

Download datasheets and manufacturer documentation for Microchip Technology MIC4605-2YMT-TR.

MIC4605-2YMT-TR Documents

Download datasheets and manufacturer documentation for MIC4605-2YMT-TR

Frequently Asked Questions

What is the essential property of the MIC4605?
The MIC4605 is a noninverting, 85V half-bridge MOSFET driver designed to independently drive both high-side and low-side N-channel MOSFETs. The MIC4605 offers a wide 5.5V to 16V operating supply range with either dual TTL inputs (MIC4605-1) or a single PWM input (MIC4605-2).
Can the MIC4605 be used for input signals whose amplitude is less than the supply voltage?
The MIC4605 has a TTL-compatible input range and can be used with input signals with amplitude less than the supply voltage.
What are the advantages of the package used in MIC4605?
The MIC4605 is offered in a small 2.5 mm x 2.5 mm TDFN package for applications that are space constrained and an 8-lead SOIC package for ease of manufacturing.
FAQ
What is the essential property of the MIC4605?
The MIC4605 is a noninverting, 85V half-bridge MOSFET driver designed to independently drive both high-side and low-side N-channel MOSFETs. The MIC4605 offers a wide 5.5V to 16V operating supply range with either dual TTL inputs (MIC4605-1) or a single PWM input (MIC4605-2).
Can the MIC4605 be used for input signals whose amplitude is less than the supply voltage?
The MIC4605 has a TTL-compatible input range and can be used with input signals with amplitude less than the supply voltage.
What are the advantages of the package used in MIC4605?
The MIC4605 is offered in a small 2.5 mm x 2.5 mm TDFN package for applications that are space constrained and an 8-lead SOIC package for ease of manufacturing.
