What is a Voltage Supervisor?
PMIC - Supervisors TO-236-3, SC-59, SOT-23-3 -40°C~125°C TJ MIC803 MICREL SEMICONDUCTOR MIC803-40D2VM3 TR SUPERVISOR, MPU, 3SOT23
The MIC803 is a single-voltage supervisor with open-drain reset output that provides accurate power supply monitoring and reset generation in microprocessor-based systems. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
MIC803-40D2VM3-TR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.37967 | $0.38 |
| 10+ | $0.35818 | $3.58 |
| 100+ | $0.3379 | $33.79 |
| 500+ | $0.31878 | $159.39 |
| 1000+ | $0.30073 | $300.73 |
The following figure is the diagram of MIC803 pinout.
The following is the Pin Description of MIC803.
| Pin Number | Pin Name | Pin Function |
| 1 | GND | Ground Pin. |
| 2 | /RESET | /RESET goes low if Vcc falls below the reset threshold (VTH), and remains asserted for one timeout period after Vcc exceeds VTH. |
| 3 | Vcc | Power Supply Input and Monitored Voltage. |
The following is the Footprint of MIC803.
Footprint
The MIC803 is a single-voltage supervisor with open-drain reset output that provides accurate power supply monitoring and reset generation in microprocessor-based systems. The function of the device is to assert a reset signal if the power supply voltage drops below the reset threshold voltage, and retain this reset for the reset timeout period once the power supply increases above the reset threshold voltage. The MIC803 consumes only 4.5μA of supply current and offers three reset delay periods of 20ms, 140ms, and 1120ms (minimum). It features factory-programmed reset threshold levels from 2.63V to 4.63V to accommodate 3.0V, 3.3V, and 5.0V power supplies. It is available in the compact 3-pin SC-70 and SOT-23 packages.
This article provides you with a basic overview of the MIC803 3-Pin Microprocessor Supervisor Circuit, including its pin descriptions, features and specifications, etc., to help you quickly understand what MIC803 is.
● 4.5μA supply current (typical) at 3.6V
● Open-drain /RESET output
● /RESET remains valid with Vcc as low as 1V
● 20ms, 140ms, or 1120ms (minimum) reset timeout options
● 2.63V to 4.63V preset voltage threshold options
● 2.5% voltage threshold accuracy over temperature
● 3-pin SC70-3 package (2.0mm x 2.1mm)
● 3-pin SOT-23 package (2.3mm x 2.9mm)
● -40°C to +125°C junction temperature range
Microchip Technology MIC803-40D2VM3-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC803-40D2VM3-TR.
Microchip Technology MIC803-40D2VM3-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MIC803-40D2VM3-TR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 7 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | SOT-23-3 | |
| Number of Elements | 1 Element | |
| Watchdog Timers | No | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Published | 2016 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Type | Simple Reset/Power-On Reset | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -40°C | |
| Base Part Number | MIC803 | |
| Output | Open Drain or Open Collector | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 1V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Supply Current | 4.5μA | |
| Nominal Supply Current | 18μA | |
| Reset | Active Low | |
| Voltage - Threshold | 4V | |
| Number of Voltages Monitored | 1 | |
| Reset Timeout | 20ms Minimum | |
| Min Reset Threshold Voltage | 3.8V | |
| Max Reset Threshold Voltage | 4.2V | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant |
The following is the Block Diagram of MIC803.
Functional Diagram
| Model number | Manufacturer | Description |
| MIC803-40D3VM3 | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3 |
| MIC803-40D4VM3 | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3 |
| MIC803-40D2VM3 | Microchip Technology Inc | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO3 |
| MIC803-40D4VM3-TR | Microchip Technology Inc | IC,VOLT DETECTOR,FIXED,+4.0V,TO-236,3PIN,PLASTIC |
● Critical microcomputer power monitoring
● Portable equipment
● Solid state drives
● Printers/computers
● Embedded controllers
The following diagram shows the MIC803 package.
Top View
Side View
End View

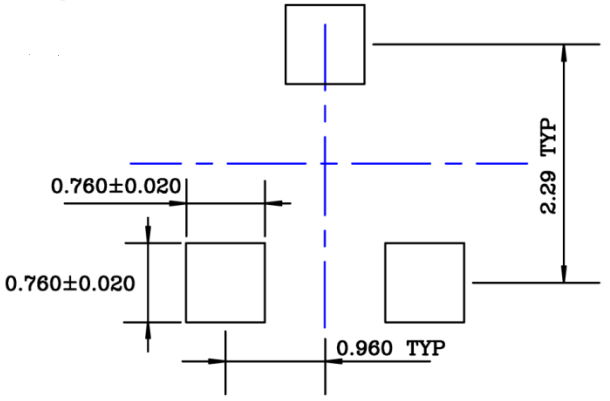

The following is the Recommended Land Pattern of MIC803.
Recommended Land Pattern
Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.
Download datasheets and manufacturer documentation for MIC803-40D2VM3-TR
