OPTOISO 2.5KV OPN COLLECTOR 8DIP
MID400 is an AC line monitor logic-out Optocoupler. This article mainly covers datasheet, pinout, features, applications, and other details about MID400. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
MID400
| Pin Number | Pin Name | Description |
| 1 | AC Live | Alternating Current Live wire is connected to this Pin |
| 2,4 | No Connection | Not Used |
| 3 | AC Neutral | Alternating Current Neutral wire is connected to this pin |
| 5 | Ground | Ground pin of the IC |
| 6 | V Output | Open collector output pin |
| 7 | Auxiliary | Can be used to adjust AC voltage sensing and time delay by adding a capacitor to this pin. |
| 8 | Vcc | IC Operating Voltage |

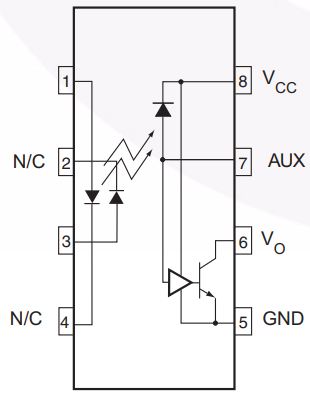

Symbol
Symbol

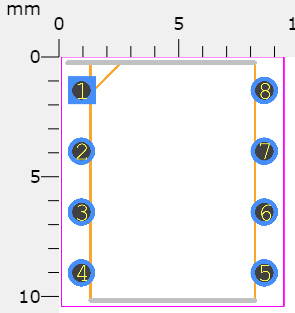

Footprint
Footprint

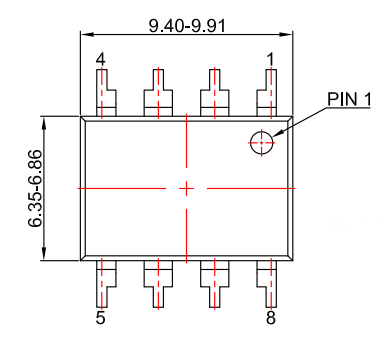

3D Model
3D Model
The MID400 is an optically isolated AC line−to−logic interface device. It is packaged in an 8−lead plastic DIP. The AC line voltage is monitored by two back−to−back GaAs LED diodes in series with an external resistor. A high gain detector circuit senses the LED current and drives the output gate to a logic low condition.
The MID400 has been designed solely for use as an AC line monitor. It is recommended for use in any AC−to−DC control application where excellent optical isolation, solid-state reliability, TTL compatibility, small size, low power, and low-frequency operations are required.
ON Semiconductor MID400 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MID400.
ON Semiconductor MID400 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MID400.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 7 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Weight | 819mg | |
| Number of Elements | 1 Element | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Published | 2004 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| ECCN Code | EAR99 | |
| Type | AC Line Monitor |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Tin (Sn) | |
| Additional Feature | UL RECOGNIZED, TTL COMPATIBLE | |
| Voltage - Rated DC | 7V | |
| Max Power Dissipation | 115mW | |
| Supply Voltage | 5V | |
| Approval Agency | UR | |
| Voltage - Isolation | 2500Vrms | |
| Output Voltage | 7V | |
| Output Type | Adjustable | |
| Max Output Current | 1.5A | |
| Configuration | SINGLE | |
| Power Dissipation | 115mW | |
| Voltage - Forward (Vf) (Typ) | 1.5V | |
| Propagation Delay | 1 ms | |
| Input Type | AC, DC | |
| Forward Current | 30mA | |
| Max Output Voltage | 7V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Response Time | 0.001 ns | |
| Max Input Voltage | 7V | |
| Direction | Unidirectional | |
| Output Current per Channel | 20mA | |
| Rise Time | 1μs | |
| Fall Time (Typ) | 1 ms | |
| Input Current | 30mA | |
| Propagation Delay tpLH / tpHL (Max) | 1ms, 1ms (Typ) | |
| Height | 3.94mm | |
| Length | 9.91mm | |
| Width | 6.86mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Direct Operation from any Line Voltage with the Use of an External Resistor
• Externally Adjustable Time Delay
• Externally Adjustable AC Voltage Sensing Level
• Logic Level Compatibility
• Safety and Regulatory Approvals:
UL1577, 2,500 VAC RMS for 1 Minute
DIN−EN/IEC60747−5−5, 630 V Peak Working Insulation Voltages
• Monitoring of the AC/DC “Line−down” Condition
• “Closed−loop” Interface between Electromechanical Elements such as Solenoids, Relay Contacts, Small Motors, and Microprocessors
• Time Delay Isolation Switch
The MID400 has been designed solely for use as an <B>AC line monitor</B>. It is recommended for use in any AC-to-DC control application where excellent optical isolation, solid-state reliability, TTL compatibility, small size, low power, and low-frequency operations are required.

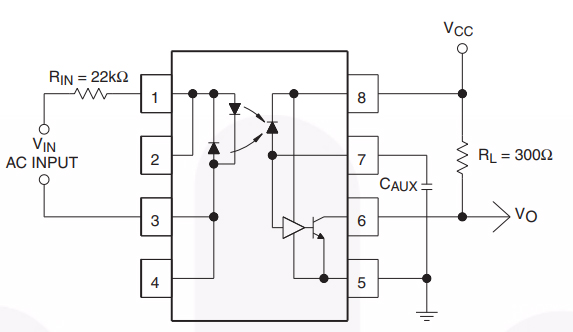

The MID400 is an AC Line Monitor IC, the Phase and Neutral wire can be directly connected to the 1st and 3rd pin of the IC through a Resistor (RIN). A sample application circuit is shown below.
The Resistor Rin is used to limit the current flowing from the Ac line the value of the resistor can be calculated using the below formula
RIN = Vin-VfIin
Where Vin is the input RMS voltage of the Ac line, Vs if the Forward voltage drop of the internal LED and Iin is the input current required to turn on the internal LED, the value of which can be found at the MID400 datasheet linked below.

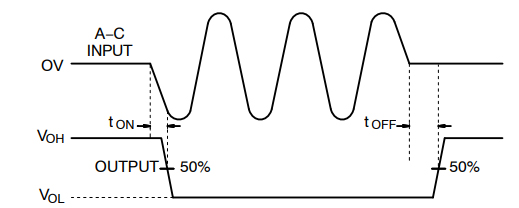

The output pin 6 is an open collector pin and requires a pull-up resistor of 300 ohms tied to the Vcc pin as shown above. The capacitor connected to pin 7 can be used to adjust the sensing level and time delay of the output. The below figure should help you understand the working of the output pin.
ON Semiconductor is a semiconductor supplier company, formerly in the Fortune 500, but dropping into the Fortune 1000 (ranked 512) in 2020. Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications. ON Semiconductor runs a network of manufacturing facilities, sales offices, and design centers in North America, Europe, and the Asia Pacific regions. Headquartered in Phoenix, Arizona, ON Semiconductor has revenues of $3.907 billion (2016), which puts it among the worldwide top 20 semiconductor sales leaders.
Download datasheets and manufacturer documentation for MID400
