Transistor MJ 15003/15004 untuk audio
Transistors - Bipolar (BJT) - Single TRANS NPN 140V 20A TO3
MJ15003 is complementary silicon power transistors Furthermore, there is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
MJ15003G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $11.09997 | $11.1 |
| 10+ | $10.47167 | $104.72 |
| 100+ | $9.87894 | $987.89 |
| 500+ | $9.31975 | $4659.88 |
| 1000+ | $8.79222 | $8792.22 |
MJ15003 Symbol

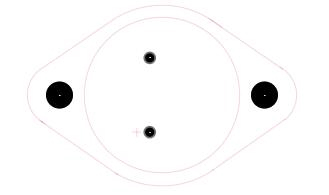

MJ15003 Footprint
The MJ15003 and MJ15004 are power transistors designed for high power audio, disk head positioners and other linear applications.
ON Semiconductor MJ15003G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MJ15003G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 5 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Through Hole | |
| Package / Case | TO-204AA, TO-3 | |
| Surface Mount | NO | |
| Number of Pins | 2Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 140V | |
| Collector-Emitter Saturation Voltage | 1V | |
| Number of Elements | 1 Element | |
| hFEMin | 25 | |
| Operating Temperature | -65°C~200°C TJ | |
| Packaging | Tray | |
| Published | 2002 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Rated DC | 140V | |
| Max Power Dissipation | 250W | |
| Terminal Position | BOTTOM | |
| Terminal Form | PIN/PEG | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | 20A | |
| Frequency | 2MHz | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Pin Count | 2 | |
| Element Configuration | Single | |
| Power Dissipation | 250W | |
| Case Connection | COLLECTOR | |
| Transistor Application | AMPLIFIER | |
| Gain Bandwidth Product | 2MHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 140V | |
| Max Collector Current | 20A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 5A 2V | |
| Current - Collector Cutoff (Max) | 250μA | |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 500mA, 5A | |
| Transition Frequency | 2MHz | |
| Collector Base Voltage (VCBO) | 140V | |
| Emitter Base Voltage (VEBO) | 5V | |
| Height | 8.51mm | |
| Length | 39.37mm | |
| Width | 26.67mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Type: NPN
Collector-Emitter Voltage: 140 V
Collector-Base Voltage: 140 V
Emitter-Base Voltage: 5 V
Collector Current: 20 A
Collector Dissipation: 250 W
DC Current Gain (hfe): 25 to 150
Transition Frequency: 2 MHz
Operating and Storage Junction Temperature Range: -65 to +200 °C
Package: TO-3
High Safe Operating Area
For Low Distortion Complementary Designs
High DC Current Gain
These Devices are Pb−Free and are RoHS Compliant
The equivalent for MJ15003:
2N563
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centres in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for MJ15003G
