TRANS NPN 400V 4A TO220AB
MJE13005 is a 4 ampere NPN silicon power transistor featuring 400 VOLTS − 75 WATTS. This article enforces applications, datasheet, circuit, pinout, equivalent, and more details about the MJE13005 transistor. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
MJE13005

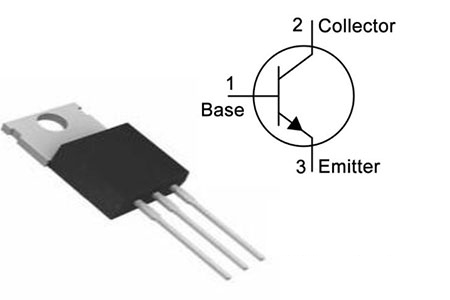

MJE13005 Pinout
| Pin Number | Pin Name | Description |
| 1 | Base | Controls the biasing of the transistor, Used to turn ON or OFF the transistor |
| 2 | Collector | Current flows in through collector, normally connected to load |
| 3 | Emitter | Current Drains out through emitter, normally connected to ground |
The MJE13005 is an NPN Transistor with a high voltage and rapid speed. With a collector-emitter voltage of 400V and a constant collector current of 4A, it has a high collector-emitter voltage. Because of its shortfall time, the transistor is ideal for switching AC voltage (115V/220V) in converter and inverter applications.

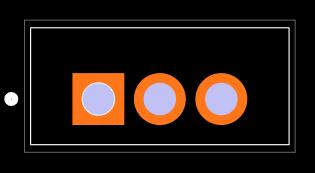

MJE13005 Footprint
ON Semiconductor MJE13005 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MJE13005.
ON Semiconductor MJE13005 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MJE13005.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 1 week ago) | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 400V | |
| Collector-Emitter Saturation Voltage | 1V | |
| Number of Elements | 1 Element | |
| hFEMin | 10 | |
| Operating Temperature | -65°C~150°C TJ | |
| Packaging | Tube | |
| Series | SWITCHMODE™ | |
| Published | 2010 | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Obsolete |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Additional Feature | LEADFORM OPTIONS ARE AVAILABLE | |
| HTS Code | 8541.29.00.95 | |
| Voltage - Rated DC | 400V | |
| Max Power Dissipation | 2W | |
| Peak Reflow Temperature (Cel) | 240 | |
| Reach Compliance Code | not_compliant | |
| Current Rating | 4A | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Pin Count | 3 | |
| Qualification Status | Not Qualified | |
| Element Configuration | Single | |
| Power Dissipation | 75W | |
| Case Connection | COLLECTOR |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Application | SWITCHING | |
| Gain Bandwidth Product | 4MHz | |
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 1V | |
| Max Collector Current | 4A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 8 @ 2A 5V | |
| JEDEC-95 Code | TO-220AB | |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 1A, 4A | |
| Transition Frequency | 4MHz | |
| Collector Base Voltage (VCBO) | 700V | |
| Emitter Base Voltage (VEBO) | 9V | |
| REACH SVHC | No SVHC | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
Package Type: TO-220
Transistor Type: NPN
Max Collector Current(IC): 4A
Max Collector-Emitter Voltage (VCE): 400V
Max Collector-Base Voltage (VCB): 700V
Max Emitter-Base Voltage (VEBO): 9V
Max Collector Dissipation (Pc): 75 Watt
Max Transition Frequency (fT): 4 MHz
Minimum & Maximum DC Current Gain (hFE): 10– 60
Max Storage & Operating temperature should be: -65 to +150 Centigrade
High current switching (up to 4A) loads
Relay/Solenoid driver
Uninterrupted Power Supplies
Power Supply Circuits
Inverter Circuits
DC-DC Converters
Inverters
Speed control of Motors
Battery Charger Circuits
Motor Controllers
Audio Amplifier & Audio Amplifier Stages
MJE13004, ST13005, MJE13004, BUJ103A, 2N6499, 2SC2333, 2SC2535, 2SC2536, 2SC2552, 2SD271, 2SD272, 2SD422, 2SD423, 2SD518, 2SD622, 2SD724, KSE13004, KSE13005, MJ4380, MJ4401, MJE53, MJE53T, TIP75, TIP75A, TIP75B, TIP75C
The MJE13005 NPN transistor has a collector Emitter voltage of 400V and a collector current of 4A. This transistor has a switching speed of 0.9uS, making it an excellent choice for high-speed and voltage switching circuits in applications such as inverters and converters.
The MJE13005 is a high-voltage NPN transistor with a collector-emitter voltage of 400V and a collector current of 4A, as well as a fast switching speed of 0.9uS, making it an excellent choice for high-voltage, high-speed switching circuits in converter and inverter applications.
Because of its ability to tolerate peak currents of up to 8A, the transistor is also utilized in basic relay or solenoid driver circuits.
The MJE13005 has a high base voltage of 9V and takes roughly 2A to close the switching entirely when working across very high voltage due to the high switching voltage and switching current. As a result, a transistor driver circuit for the MJE13005 is required. These are frequently used in SMPS designs, together with a switching transformer, to switch 115V or 220V AC voltage at high frequencies.
The IC is relatively straightforward to use because it is available in TO-220 format. When running at high voltages, the transistor's collector dissipation power is 75W; hence a heat sink is required.

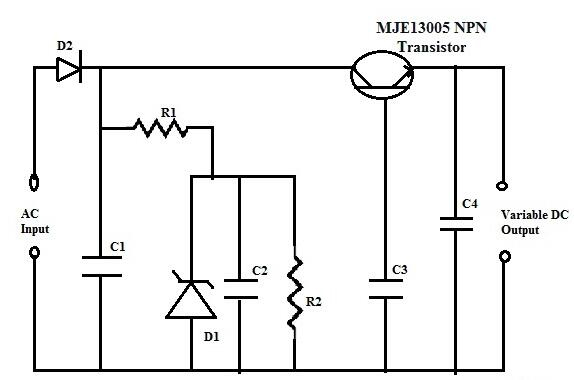

MJE13005 Circuit
The wireless power transmission application circuit using the MJE13005 NPN transistor is given above. The MJE13005 NPN transistor is utilized in the following wireless power transfer circuit. This power transmission circuit uses the mutual inductance concept to power an LED at a distance of two inches without the use of any connecting wires.

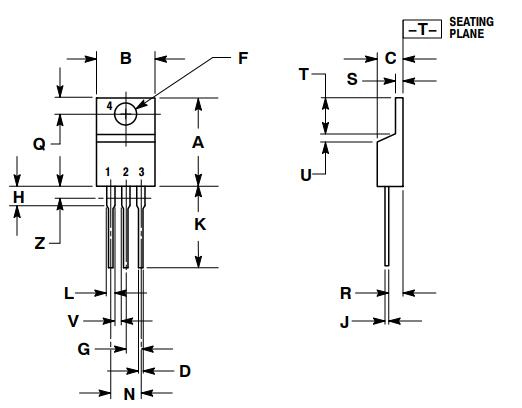

MJE13005 Outline Dimensions
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for MJE13005
