MJE15030G NPN Transistor: Datasheet, Equivalent, and Pinout

TRANS NPN 150V 8A TO220AB The MJE15030G is a 150V silicon NPN complementary plastic power transistor designed for use as high-frequency drivers in audio amplifiers.

2169

Aug 24, 2021

Monica Moll

Episode 5: How do I read a datasheet?

TRANS NPN 150V 8A TO220AB

The MJE15030G is a 150V silicon NPN complementary plastic power transistor designed for use as high-frequency drivers in audio amplifiers.

MJE15030G

2331In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$2.10538	$2.11
10+	$1.98621	$19.86
100+	$1.87378	$187.38
500+	$1.76772	$883.86
1000+	$1.66766	$1667.66

Unit Price:$2.10538

Subtotal: $2.11

Quick Links

MJE15030G Description

The MJE15030G is a 150V silicon NPN complementary plastic power transistor designed for use as high-frequency drivers in audio amplifiers.

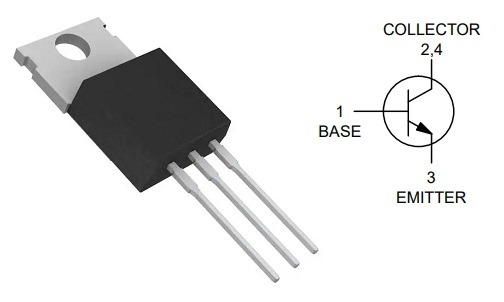

MJE15030G Pinout

MJE15030G CAD Model

Symbol

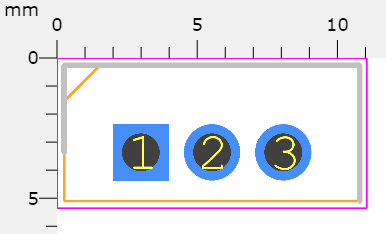

Footprint

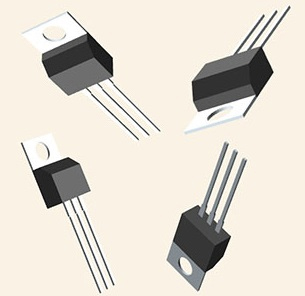

3D Model

MJE15030G Features

Package Type: TO-220
Transistor Type: NPN
Max Continuous Collector Current: 8 A
Collector-Base Voltage: 150 V
Collector-Emitter Voltage: 150 V
Emitter-Base Voltage: 5 V
Max Power Dissipation: 50 W
Transition Frequency: 30 MHz
Storage & Operating temperature: -65 to +150 Celsius

MJE15030G Advantages

High Current Gain - Bandwidth Product
Pb−Free and RoHS Compliant

Specifications

ON Semiconductor MJE15030G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MJE15030G.

MJE15030G Tech Specifications

ON Semiconductor MJE15030G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MJE15030G.

Product Attribute	Attribute Value
Lifecycle Status	ACTIVE (Last Updated: 20 hours ago)
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mounting Type	Through Hole
Package / Case	TO-220-3
Surface Mount	NO
Number of Pins	3Pins
Weight	4.535924g
Transistor Element Material	SILICON
Collector-Emitter Breakdown Voltage	150V
Collector-Emitter Saturation Voltage	500mV
Number of Elements	1 Element
hFEMin	40
Operating Temperature	-65°C~150°C TJ
Packaging	Tube
Published	2003
JESD-609 Code	e3
Pbfree Code	yes

Product Attribute	Attribute Value
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3Terminations
ECCN Code	EAR99
Voltage - Rated DC	150V
Max Power Dissipation	50W
Peak Reflow Temperature (Cel)	260
Current Rating	8A
Frequency	30MHz
Time@Peak Reflow Temperature-Max (s)	40
Pin Count	3
Element Configuration	Single
Power Dissipation	2W
Case Connection	COLLECTOR
Transistor Application	AMPLIFIER
Gain Bandwidth Product	30MHz
Polarity/Channel Type	NPN
Transistor Type	NPN

Product Attribute	Attribute Value
Collector Emitter Voltage (VCEO)	150V
Max Collector Current	8A
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 4A 2V
Current - Collector Cutoff (Max)	100μA
JEDEC-95 Code	TO-220AB
Vce Saturation (Max) @ Ib, Ic	500mV @ 100mA, 1A
Transition Frequency	30MHz
Collector Base Voltage (VCBO)	150V
Emitter Base Voltage (VEBO)	5V
Height	15.748mm
Length	10.2616mm
Width	4.826mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

View Similar

MJE15030G Functional Alternatives

MJE15030G Equivalents

BDX53F, FJP5200, FJP5200O, FJP5200R, FJPF5200, FJPF5200O, FJPF5200R, MJE15030, MJE15032, MJE15032G, MJE5740, MJF15030, MJF15030G

MJE15030G Package

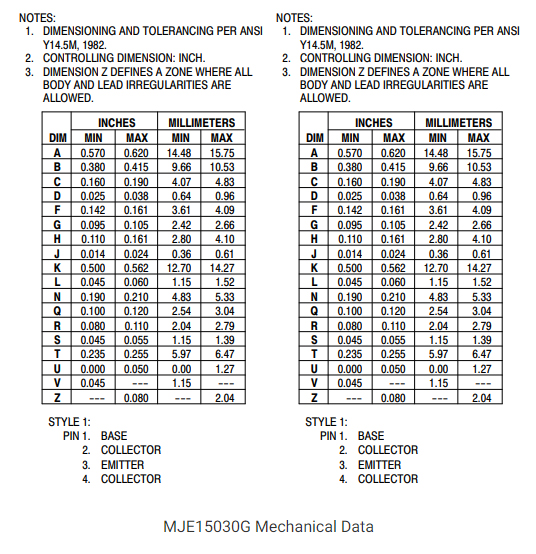

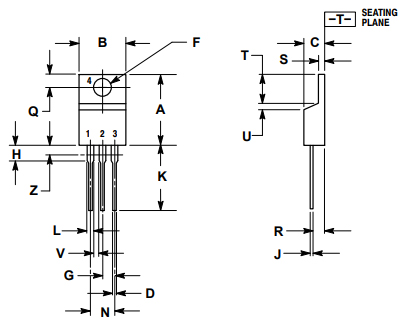

MJE15030G Package Outline

MJE15030G Manufacturer

ON Semiconductor (Nasdaq: ON) is driving energy-efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices, and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
