MJE2955T PNP Transistor: Pinout, Datasheet, Uses

MJE2955T Pinout

Symbol

MJE2955T Symbol

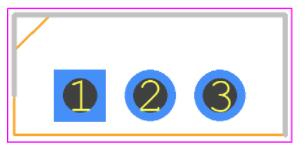

Footprint

MJE2955T Footprint

3D Model

MJE2955T 3D Model

The MJE2955T is a general-purpose PNP power transistor with an epitaxial base that is housed in a hermetically sealed metal box. This device is intended for use as a general-purpose switching and amplifier device.

• DC Current Gain is specified to a maximum of 10 amps.

• Bandwidth — High Current Gain

• Type Designator: MJE2955T Product — fT = 2.0 MHz (Min) @ IC = 500 mAdc

• Transistor Material: PNP for Si Polarity

• |Veb| Maximum Emitter-Base Voltage: 5 V

• Power switching circuits

• Amplifier circuits

• PWM applications

• Regulator circuits

• Switch-mode power supply

• Signal Amplifiers

The MJE2955T transistor is a highly adaptable device that can be used in a wide range of applications. It is utilized in high power situations where high power lodes must be controlled. This transistor's frequency range is fairly limited, which is why it is primarily employed in amplifiers, but it can also be used as a preamplifier for a power amplifier stage in some situations. Because the MJE2955T is a PNP transistor, the collector and emitter will be closed (Forward biased) when the base pin is held at the ground and open (Reverse biased) when the base pin is attached to the ground pin. A PNP transistor differs from an NPN transistor in this regard.

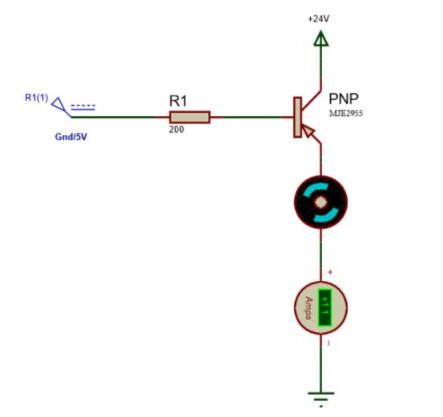

MJE2955T Circuit

As previously stated, the MJE2955T is a PNP transistor that may be utilized in a variety of applications; therefore, we have configured the transistor in a common emitter configuration and are driving a high-power motor as a load. The button will initially be in an open circuit state, with no current flowing through the base. The transistor behaves as an open circuit when there is no base current, and the complete supply voltage V1 does not appear across it.

The equivalent for MJE2955T:

• 2N5987

• 2N5988

• MJE1291

• NTE183

MJE2955T Package

ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centres in key markets throughout North America, Europe, and the Asia Pacific regions.

ON Semiconductor MJE2955T technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MJE2955T.

Download datasheets and manufacturer documentation for ON Semiconductor MJE2955T.
