Transistors - Bipolar (BJT) - Single Trans GP BJT NPN 60V 10A 3-Pin(3+Tab) TO-220 Tube The MJE3055 is a Jedec TO-220 silicon Epitaxial-Base NPN transistor. This article mainly introduces diagram, pinout, datasheet and other detailed information about STMicroelectronics MJE3055.
1773
Oct 26, 2021
how to Make Simple Amplifier at home
Transistors - Bipolar (BJT) - Single Trans GP BJT NPN 60V 10A 3-Pin(3 Tab) TO-220 Tube
The MJE3055 is a Jedec TO-220 silicon Epitaxial-Base NPN transistor. This article mainly introduces diagram, pinout, datasheet and other detailed information about STMicroelectronics MJE3055.
MJE3055T
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.468 | $1.47 |
| 10+ | $1.38491 | $13.85 |
| 100+ | $1.30652 | $130.65 |
| 500+ | $1.23256 | $616.28 |
| 1000+ | $1.16279 | $1162.79 |
The MJE3055 is a Jedec TO-220 silicon Epitaxial-Base NPN transistor. Power switching circuits and general-purpose amplifiers are among the applications. MJE2955T is the complementary PNP type.

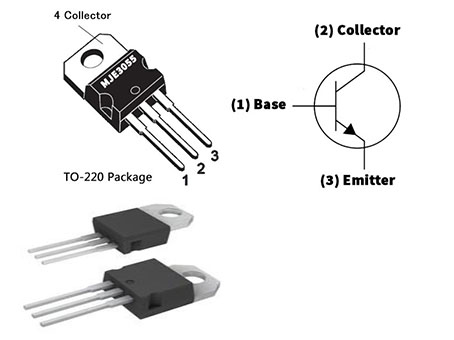

The following figure is the Pinout of MJE3055.
Pinout
| Pin Number | Pin Name |
| 1 | Base |
| 2 | Collector |
| 3 | Emitter |
| 4 | Case (Collector) |
Footprint
3D Model
• DC Current Gain Specified to 10 Amperes
• High Current Gain — Bandwidth Product — fT = 2.0 MHz (Min) @ IC = 500 mAdc
• Type Designator: MJE3055T
• Material of Transistor: Si
• Polarity: NPN
• Maximum Emitter-Base Voltage |Veb|: 5 V
STMicroelectronics MJE3055T technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics MJE3055T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 60V | |
| Collector-Emitter Saturation Voltage | 1.1V | |
| Number of Elements | 1 Element | |
| hFEMin | 20 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Rated DC | 60V | |
| Max Power Dissipation | 75W | |
| Current Rating | 10A | |
| Frequency | 2MHz | |
| Base Part Number | MJE305 | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Power Dissipation | 75W | |
| Transistor Application | SWITCHING | |
| Gain Bandwidth Product | 2MHz | |
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN | |
| Collector Emitter Voltage (VCEO) | 60V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Collector Current | 10A | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 4A 4V | |
| Current - Collector Cutoff (Max) | 700μA | |
| Vce Saturation (Max) @ Ib, Ic | 8V @ 3.3A, 10A | |
| Transition Frequency | 2MHz | |
| Collector Base Voltage (VCBO) | 70V | |
| Emitter Base Voltage (VEBO) | 5V | |
| VCEsat-Max | 8 V | |
| Height | 9.15mm | |
| Length | 10.4mm | |
| Width | 4.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
1.
MJE3055 is a fixed 5V regulator circuit that might provide a simple solution for one transistor. The output voltage – threshold voltage transistor's Zener voltage is calculated using the formula 5 V Regulator Schematic. It has to do with electronics projects, namely a simple 5V regulator circuit.
5 V Regulator Schematic
2. The following figure is the Alarm Monitoring Circuit of MJE3055.
Alarm monitoring – Great alarm monitoring circuit using MJE2955, MJE3055
MJE1101, MJE1102, MJE1103, MJE1123, MJE12007, MJE1290, MJE2955
| Part Number | Description | Manufacturer |
| MJE3055TJ69ZTRANSISTORS | Power Bipolar Transistor, 1-Element, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | Fairchild Semiconductor Corporation |
| MJE3055TTRANSISTORS | Bipolar Power Transistor, NPN, 10 A, 60 V, 75 Watt, TO-220 3 LEAD STANDARD, 50-TUBE | onsemi |
| MJE3055TTUTRANSISTORS | Bipolar Power Transistor, NPN, 10 A, 60 V, 75 Watt, 1000-TUBE | onsemi |
| MJE3055TGTRANSISTORS | Bipolar Power Transistor, NPN, 10 A, 60 V, 75 Watt, TO-220 3 LEAD STANDARD, 50-TUBE | onsemi |
• Power Switching Circuits
• General-Purpose Amplifiers
The Package of MJE3055 is shown as follows.
Package
STMicroelectronics, headquartered in Plan-les-Ouates, Switzerland, near Geneva, is a multinational electronics and semiconductors firm. The company was created in 1987 by the merger of two government-owned semiconductor companies: "Thomson Semiconductors" in France and "SGS Microelettronica" in Italy. It is known as "ST" and is the most profitable semiconductor chip producer in Europe. While the corporate headquarters and EMEA regional offices of STMicroelectronics are in Geneva, the holding company, STMicroelectronics N.V., is based in the Netherlands.
The company's US headquarters are located in Coppell, Texas. The headquarters for the Asia-Pacific region is in Singapore, while Japan and Korea's activities are in Tokyo. The company's China regional headquarters are based in Shanghai.
ST In situations where microelectronics has a positive impact on people's lives, microelectronics technology can be discovered. Automobiles and key fobs, big manufacturing machinery and data center power supplies, washing machines and hard drives, cellphones and toothbrushes all use ST chips with the newest developments. We help our clients make their devices smarter, more energy-efficient, connected, safer, and more secure.
Download datasheets and manufacturer documentation for MJE3055T
