MJE350
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.10257 | $1.1 |
| 10+ | $1.04016 | $10.4 |
| 100+ | $0.98129 | $98.13 |
| 500+ | $0.92574 | $462.87 |
| 1000+ | $0.87334 | $873.34 |

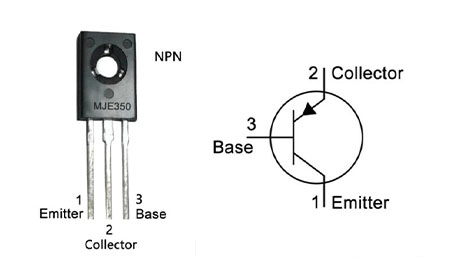

MJE350 Symbol
MJE350 Footprint
MJE350 3D Model
The MJE350 is a silicon planar NPN transistor intended for use in medium power linear and switching applications. The transistor is capable to withstand a maximum load voltage of 300V which makes it perfect to use in considerably high voltage DC applications. This transistor can take a maximum load of 500mA or 0.5A DC. MJE350 is a switch that can be utilized not only in high-voltage circuits but also in low-voltage or battery-powered circuits.
STMicroelectronics MJE350 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics MJE350.
STMicroelectronics MJE350 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics MJE350.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-225AA, TO-126-3 | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 300V | |
| Collector-Emitter Saturation Voltage | 500mV | |
| Number of Elements | 1 Element | |
| hFEMin | 30 | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube |
| Product Attribute | Attribute Value | |
|---|---|---|
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Voltage - Rated DC | -300V | |
| Max Power Dissipation | 20.8W | |
| Current Rating | -500mA | |
| Base Part Number | MJE350 | |
| Pin Count | 3 | |
| Element Configuration | Single | |
| Power Dissipation | 2.8W | |
| Case Connection | ISOLATED | |
| Power - Max | 20.8W | |
| Transistor Application | SWITCHING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity/Channel Type | PNP | |
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | 300V | |
| Max Collector Current | 500mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 50mA 10V | |
| Current - Collector Cutoff (Max) | 100μA ICBO | |
| Collector Base Voltage (VCBO) | 300V | |
| Emitter Base Voltage (VEBO) | 3V | |
| Height | 11.05mm | |
| Length | 7.8mm | |
| Width | 2.9mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
STMicroelectronics preferred sales types
Package Type: TO-126
Max Collector Current(IC): –5A
Max Collector-Emitter Voltage (VCE): –300V
Max Collector-Base Voltage (VCB): –300V
Max Emitter-Base Voltage (VEBO): –5V
Max Collector Dissipation (Pc): 20 Watt
Max Transition Frequency (fT): 4 MHz
Minimum & Maximum DC Current Gain (hFE): 30– 240
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
Inverter & UPS Applications
Switching Power Supply Applications
Linear Power Supply Applications
Battery Charger Circuits
Audio Amplification
DC High Voltage Switching
Motor Controller Applications
2SA795
2SA818
2SA835
2SA898
2SA899
2SA939
2SA939
2SA1110
2SB526
2SB527
2SB528
2SB536
2SB648
2SB649
KSA1220A
MDS60
MJE350 can be utilized in a wide range of general-purpose applications such as switching and amplifications in both high-voltage and low-voltage and battery-operated circuits. This transistor can drive a variety of loads, including relays, high voltage transistors, low voltage transistors, and so on, thanks to its maximum collector current of 500mA.
On the other hand, it can be utilized in audio-related applications such as driving a speaker as a separate audio amplifier or in audio amplifier stages.

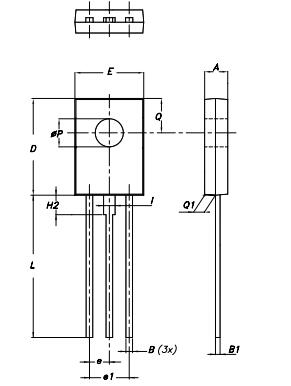

MJE350 Package
