MK64FN1M0VLQ12 NXP semiconductor 144LQFP: MK64FN1M0VLQ12 VS ATSAM4E16EA-AUR, Datasheet, Pinout

The MK64FN1M0VLQ12 is optimized for cost-sensitive applications requiring low-power, USB/Ethernet connectivity, and up to 256 KB of embedded SRAM. The device shares the comprehensive enablement and scalability of the Kinetis family.

Ultra-Low-Power

• Flexible low-power modes with power and clock gating for optimal peripheral activity and recovery times.

• Full memory and analog operation down to 1.71 volts for extended battery life.

• Low-leakage wake-up unit with up to seven internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes.

• Low-power timer for continual system operation in reduced power state.

Flash, SRAM, and FlexMemory

• Up to 1 MB flash. Fast access, high reliability with four-level security protection.

• 256 KB of SRAM

• FlexMemory: Up to 4 KB of the user-segmentable byte write/erase EEPROM for data tables/system data. EEPROM with over 10M cycles and flash with 70 µsec write time (brownouts without data loss/corruption). No user or system intervention to complete programming and erase functions and full operation down to 1.71 volts. In addition, up to 128KB of FlexNVM for extra program code, data, or EEPROM backup.

Mixed-Signal Capability

• Two high-speed, 16-bit analog-to-digital converters (ADCs) with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering.

• Two 12-bit digital-to-analog converters (DACs) for analog waveform generation for audio applications.

• Three high-speed comparators provide fast and accurate motor over-current protection by driving PWMs to a safe state.

• Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost.

Performance

• ARM Cortex-M4 core + DSP. 120 MHz, single-cycle MAC, single instruction multiple data (SIMD) extensions, single-precision floating-point unit.

• Up to 16-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput.

• Crossbar switch enables concurrent multi-master bus accesses, increasing bus bandwidth

• Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines.

Timing and Control

• Up to four FlexTimers with a total of 20 channels. Hardware dead-time insertion and quadrature decoding for motor control.

• Carrier modulator timer for infrared waveform generation in remote control applications.

• A four-channel 32-bit periodic interrupt timer provides a time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block.

 Human-Machine Interface (HMI)

• GPIO with pin interrupt support

Connectivity and Communications

• IEEE 1588 Ethernet MAC with hardware time stamping provides precision clock synchronization for real-time industrial control.

• USB 2.0 On-The-Go (full-speed) with USB transceiver. Intelligent design with embedded 48 MHz oscillators allowing for USB crystal-less system design. Device charge detect optimizes charging current/time for portable USB devices enabling longer battery life. Low-voltage regulator supplies up to 120 mA off-chip at 3.3 volts to power external components from 5 volts input.

• Up to six UARTs with IrDA support including one UART with ISO7816 smart card support. Variety of data size, format, and transmission/reception settings supported for multiple industrial communication protocols.

• Inter-IC Sound (I2S) serial interface for audio system interfacing.

• CAN module for industrial network bridging.

• Three DSPI and three I2C.

NXP USA Inc. MK64FN1M0VLQ12 technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. MK64FN1M0VLQ12.

MK64FN1M0VLQ12 Symbol

MK64FN1M0VLQ12 Footprint

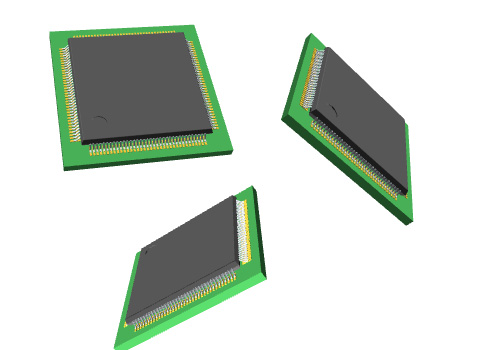

MK64FN1M0VLQ12 3D Model
