MLX90614 Infra Red Thermometer: Pinout, Datasheet and Applications

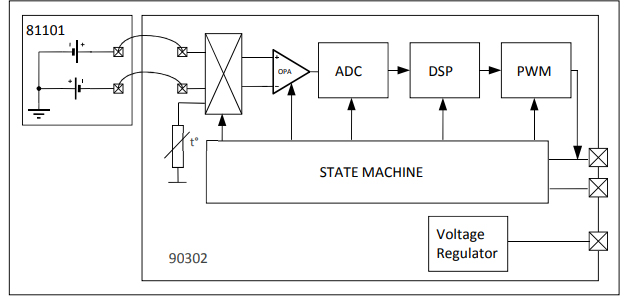

The MLX90614 is an Infra Red thermometer for noncontact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASSP are integrated in the same TO-39 can.

Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved.

Symbol

Footprint

3D Model

Melexis Technologies NV MLX90614ESF-BCH-000-TU technical specifications, attributes, parameters and parts with similar specifications to Melexis Technologies NV MLX90614ESF-BCH-000-TU.

• Small size, low cost

• Easy to integrate

• Factory calibrated in wide temperature range:

       -40°C…+125˚C for sensor temperature and

       -70°C…+380˚C for object temperature.

• High accuracy of 0.5°C in a wide temperature range (0°C…+50°C for both Ta and To)

• High (medical) accuracy calibration

• Measurement resolution of 0.02°C

• Single and dual zone versions

• SMBus compatible digital interface

• Customizable PWM output for continuous reading

• Available in 3V and 5V versions

• Simple adaptation for 8V…16V applications

• Sleep mode for reduced power consumption

• Different package options for applications and measurements versatility

• Automotive grade

• High precision non-contact temperature measurements

• Thermal Comfort sensor for Mobile Air Conditioning control system

• Temperature sensing element for residential, commercial and industrial building air conditioning

• Windshield defogging

• Automotive blind angle detection

• Industrial temperature control of moving parts

• Temperature control in printers and copiers

• Home appliances with temperature control

• Healthcare

• Livestock monitoring

• Movement detection

• Multiple zone temperature control – up to 127 sensors can be read via common 2 wires

• Thermal relay / alert

• Body temperature measurement

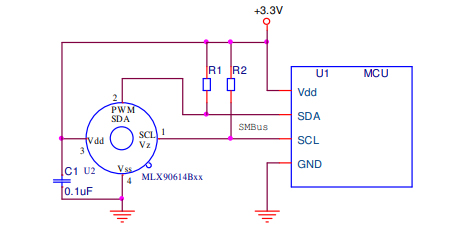

Use of the MLX90614 thermometer in SMBus configuration

The key feature of MLX90614 is that it is a contactless IR temperature sensor with high accuracy. Therefore, it can be used in industries to measure the temperature of moving objects like a rotating motor shaft. With its high accuracy and precision, it is also used in a wide range of commercial, health care, and household applications like room temperature monitoring, body temperature measurement, etc.

The MLX90614 Temperature sensor is manufactured by a company called Melexis. The sensor is factory calibrated and hence it acts like a plug and play sensor module for speeding up development processes.

The MLX90614 is available in the standard TO-39 package making it easy to mount on a breadboard. The dimensions of MLX90614 is shown below.

Combining a passion for technology with truly inspired engineering, Melexis designs, develops and delivers innovative micro-electronic solutions that enable designers to turn ideas into applications that support the best imaginable future. The company’s advanced mixed-signal semiconductor sensor and actuator components address the challenges of integrating sensing, driving and communication into next-generation products and systems that improve safety, raise efficiency, support sustainability and enhance comfort. Melexis is headquartered in Belgium and employs over 1,500 people in 19 locations worldwide. The company is publicly traded on Euronext Brussels (MELE).

Download datasheets and manufacturer documentation for Melexis Technologies NV MLX90614ESF-BCH-000-TU.
