MLX90640 32x24 Thermal Array sensor 3 Volt 120 Degree Total FOV The MLX90640 is a fully calibrated 32x24 pixels thermal IR array in an industry-standard 4-lead TO39 package with a digital interface.
594
Aug 23, 2021
Hobart Peacock
Melexis MLX90640, The Far Infrared (IR) Thermal Sensor Array 32x24 RES
MLX90640 32x24 Thermal Array sensor 3 Volt 120 Degree Total FOV

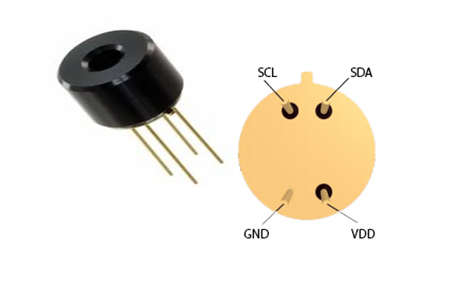

The MLX90640 is a fully calibrated 32x24 pixels thermal IR array in an industry-standard 4-lead TO39 package with a digital interface. This article mainly covers datasheet, pinout, alternatives, applications, and other details about MLX90640.
MLX90640ESF-BAA-000-TU
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $43.09507 | $43.1 |
| 10+ | $40.65572 | $406.56 |
| 100+ | $38.35446 | $3835.45 |
| 500+ | $36.18345 | $18091.72 |
| 1000+ | $34.13533 | $34135.33 |
Symbol
Footprint
The MLX90640 is a fully calibrated 32x24 pixels thermal IR array in an industry-standard 4-lead TO39 package with a digital interface. The MLX90640 contains 768 FIR pixels. An ambient sensor is integrated to measure the ambient temperature of the chip and a supply sensor to measure the VDD. T
Melexis Technologies NV MLX90640ESF-BAA-000-TU technical specifications, attributes, parameters and parts with similar specifications to Melexis Technologies NV MLX90640ESF-BAA-000-TU.
Melexis Technologies NV MLX90640ESF-BAA-000-TU technical specifications, attributes, parameters and parts with similar specifications to Melexis Technologies NV MLX90640ESF-BAA-000-TU.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 24 Weeks | |
| Package / Case | TO-205AD, TO-39-3 Metal Can | |
| Surface Mount | NO | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Bulk | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 4Terminations | |
| Type | Thermal | |
| Voltage - Supply | 2.9V~3.6V | |
| Terminal Position | BOTTOM | |
| Terminal Form | WIRE | |
| Number of Functions | 1Function | |
| Supply Voltage | 3.3V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Reach Compliance Code | compliant | |
| JESD-30 Code | R-XBCY-W4 | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Supply Voltage-Min (Vsup) | 3V | |
| Active Pixel Array | 32H x 24V | |
| RoHS Status | Non-RoHS Compliant |
Small size, low cost 32x24 pixels IR array
Easy to integrate
Industry standard four lead TO39 package
Factory calibrated
Noise Equivalent Temperature Difference (NETD) 0.1K RMS @1Hz refresh rate
I2C compatible digital interface
Programmable refresh rate 0.5Hz…64Hz
3.3V supply voltage
Current consumption less than 23mA
2 FOV options – 55°x35° and 110°x75°
Operating temperature -40°C ÷ 85°C
Target temperature -40°C ÷ 300°C
Complies with RoHS regulations
High precision non-contact temperature measurements
Intrusion / Movement detection
Presence detection / Person localization
The temperature sensing element for intelligent building air conditioning
Thermal Comfort sensor in automotive Air Conditioning control system
Microwave ovens
Industrial temperature control of moving parts
Visual IR thermometers
Melexis is a global supplier of micro-electronic semiconductor solutions and stands for engineering that enables the best imaginable future - a future that is safe, clean, comfortable, and healthy. All of these aspects are reflected in the applications that our technology empowers.
Download datasheets and manufacturer documentation for MLX90640ESF-BAA-000-TU
