Diodes - Rectifiers - Single DIODE GEN PURP 75V 215MA SOT23
MMBD4148 is a high-speed switching diode, encapsulated in a small SOT23 (TO-236AB). This article will unlock its pinout, datasheet, alternatives and more details about MMBD4148. Welcome your RFQ!
MMBD4148,215
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.15887 | $0.16 |
| 10+ | $0.14988 | $1.5 |
| 100+ | $0.1414 | $14.14 |
| 500+ | $0.13339 | $66.7 |
| 1000+ | $0.12584 | $125.84 |
MMBD4148 is a high-speed switching diode, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
■ High switching speed: trr ≤ 4 ns
■ Low capacitance
■ Low leakage current
■ Reverse voltage: VR ≤ 75 V
■ Repetitive peak reverse voltage: VRRM ≤ 75 V
■ High-speed switching
■ General-purpose switching
The alternatives for MMBD4148:
MMBD4148,215, MMBD4148-7-F, MMBD4148-TP
The MMBD4148 Test Circuit is shown below

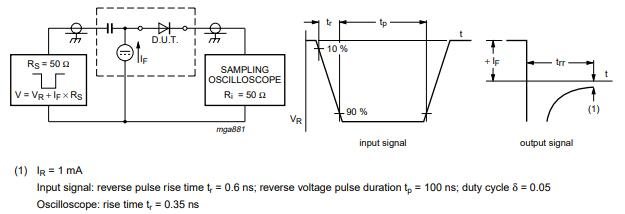

MMBD4148 Test Circuit-Reverse recovery time test circuit and waveforms

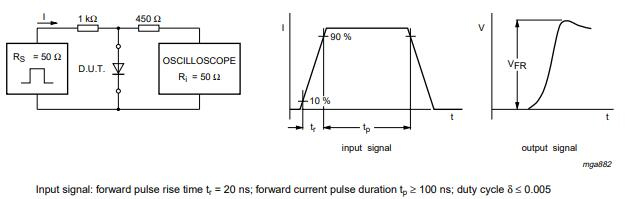

MMBD4148 Test Circuit-Forward recovery voltage test circuit and waveforms
Nexperia USA Inc. MMBD4148,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. MMBD4148,215.
Nexperia USA Inc. MMBD4148,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. MMBD4148,215.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Surface Mount | YES | |
| Number of Pins | 2Pins | |
| Diode Element Material | SILICON | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Published | 2009 | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Base Part Number | MMBD4148 | |
| Pin Count | 3 | |
| JESD-30 Code | R-PDSO-G3 | |
| Configuration | SINGLE | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 500nA @ 75V | |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 150mA | |
| Forward Current | 215mA | |
| Operating Temperature - Junction | 150°C Max |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Average Rectified (Io) | 215mA DC | |
| Reverse Recovery Time | 4ns | |
| Peak Reverse Current | 500nA | |
| Max Repetitive Reverse Voltage (Vrrm) | 75V | |
| Capacitance @ Vr, F | 1.5pF @ 0V 1MHz | |
| Reverse Voltage | 75V | |
| Max Forward Surge Current (Ifsm) | 4A | |
| Max Junction Temperature (Tj) | 150°C | |
| Ambient Temperature Range High | 150°C | |
| Height | 1.1mm | |
| RoHS Status | ROHS3 Compliant |
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
Download datasheets and manufacturer documentation for MMBD4148,215
