Transistors - Bipolar (BJT) - Single TRANS PNP 60V 0.8A SOT-23
The MMBT2907A is a 60 V PNP bipolar transistor designed for use as a general-purpose amplifier or switch in applications that require up to 500 mA. This article is going to cover pinout, datasheet pdf, applications, and more details about the MMBT2907A transistor.
MMBT2907A
The MMBT2907A is a 60 V PNP bipolar transistor designed for use as a general-purpose amplifier or switch in applications that require up to 500 mA. It is offered in an ultra-small surface-mount package (SOT-223). MMBT2907A is ideal for space-constrained systems. The NPN complementary type is MMBT2222A.
MMBT2907A Pinout
| Pin Number | Pin Name | Description |
| 1 | Emitter | Current flows out through Emitter |
| 2 | Base | Controls the biasing of the Transistor |
| 3 | Collector | Current flows in through Collector |
MMBT2907A Footprint
MMBT2907A 3D Model
ON Semiconductor MMBT2907A technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MMBT2907A.
ON Semiconductor MMBT2907A technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MMBT2907A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 1 day ago) | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Supplier Device Package | SOT-23 | |
| Weight | 59.987591mg | |
| Collector-Emitter Breakdown Voltage | 60V | |
| Collector-Emitter Saturation Voltage | 1.6V | |
| Current-Collector (Ic) (Max) | 800mA | |
| Number of Elements | 1 Element | |
| hFEMin | 50 | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2017 | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -55°C | |
| Voltage - Rated DC | -60V | |
| Max Power Dissipation | 350mW | |
| Current Rating | -800mA | |
| Frequency | 200MHz | |
| Base Part Number | MMBT2907 | |
| Polarity | PNP | |
| Voltage | 60V | |
| Element Configuration | Single | |
| Current | 6A | |
| Power Dissipation | 350mW | |
| Power - Max | 350mW | |
| Gain Bandwidth Product | 200MHz | |
| Transistor Type | PNP | |
| Collector Emitter Voltage (VCEO) | -60V | |
| Max Collector Current | -800mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA 10V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Current - Collector Cutoff (Max) | 20nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 50mA, 500mA | |
| Voltage - Collector Emitter Breakdown (Max) | 60V | |
| Max Frequency | 200MHz | |
| Max Breakdown Voltage | 60V | |
| Frequency - Transition | 200MHz | |
| Collector Base Voltage (VCBO) | -60V | |
| Emitter Base Voltage (VEBO) | -5V | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1.2mm | |
| Length | 6.35mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
High DC Current Gain (hFE) Range: 100 ~ 300
High-Current Gain Bandwidth Product (fT): 200 MHz (Minimum)
Maximum Turn-On Time (ton): 45 ns
Maximum Turn-Off Time (toff): 100 ns
Ultra-Small Surface-Mount Package: SOT-223 (PZT2907A)
Low collector-emitter saturation voltage
Complementary type : SMBT2222A / MMBT2222A (NPN)
Pb-free (RoHS compliant) package
Qualified according AEC Q101
Package: SOT23
Package Material: Molded Plastic, “Green” Compound; UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
Weight: 0.008 grams (Approximate)
General-Purpose Amplifier
Switch
Driver Modules like Relay Driver, LED driver, etc...
Motor speed control
Inverter and Rectifier circuits
Darlington Pair Designs
MMBT2222A, SMBT2222A, PN2907A, PZT2907A, 2N2907A

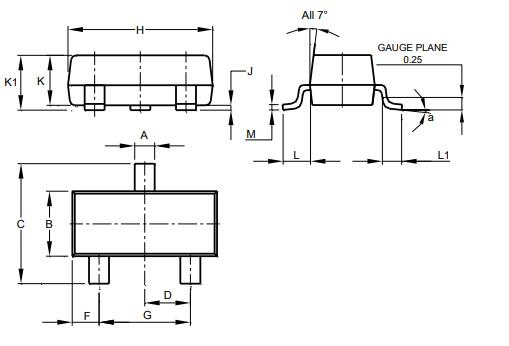

MMBT2907A Package Dimensions
ON Semiconductor (Nasdaq: ON) is driving energy-efficient innovations, empowering customers to reduce global energy use. The company offers a comprehensive portfolio of energy-efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power supply applications. ON Semiconductor operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices, and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for MMBT2907A
