MMBT3904 NPN Transistor: Pinout, Datasheet and Applications

The MMBT3904 is package NPN Transistor with VCE of 40V and a collector current of 200mA. The collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin. It can be used as small signal switching transistor. It also has a low base voltage of 6V.

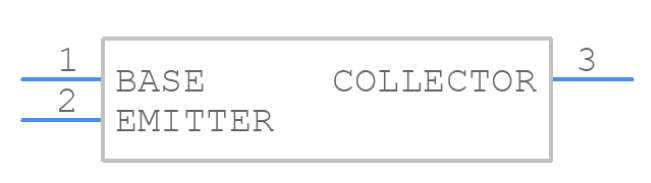

Symbol

Footprint

3D Model

STMicroelectronics MMBT3904 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics MMBT3904.

• NPN small signal Transistor

• Continuous Collector Current (Ic) is 200mA

• Collector to Emitter Voltage (VCE) is 40V

• Emitter to Base Voltage (VEB) is 6V

• Current Gain (hfe) is 100 to 300

• Transition frequency: 300MHz

• Available in SOT23 SMD package

• Well Suitable For Portable Equipment

• Small Load Switch Transistor With High Gain And Low Saturation Voltage

• VCB and VBE is high hence can be used to control voltage loads up to 40V

• Commonly used in TV and other home appliances

STMicroelectronics is a global independent semiconductor company and is a leader in developing and delivering semiconductor solutions across the spectrum of microelectronics applications. An unrivaled combination of silicon and system expertise, manufacturing strength, Intellectual Property (IP) portfolio and strategic partners positions the Company at the forefront of System-on-Chip (SoC) technology and its products play a key role in enabling today's convergence trends.

Download datasheets and manufacturer documentation for STMicroelectronics MMBT3904.
