TRANS PNP 40V 0.2A SOT-23 MMBT3906 is designed for general-purpose amplifier and switching applications at collector currents of 10 mA to 100 mA.
92
Jan 22, 2022
Max Job
Reliable MMBT3906-7-F Supplier and MMBT3906-7-F Distributor in China - Rantle East Electronic.
TRANS PNP 40V 0.2A SOT-23
MMBT3906 is designed for general-purpose amplifier and switching applications at collector currents of 10 mA to 100 mA. This article will introduce more details about MMBT3906, including Typical Characteristics, CAD models, Logic Symbols, Physical Dimensions, and so on.
MMBT3906

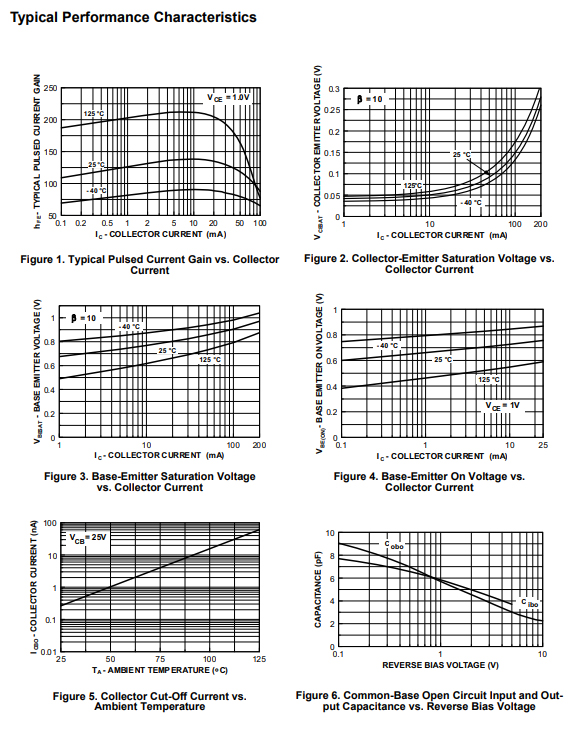

MMBT3906 Typical Characteristics

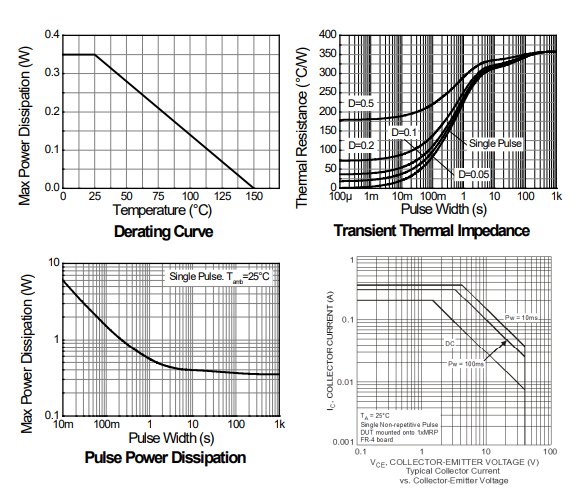

MMBT3906 Thermal Characteristics and Derating Information

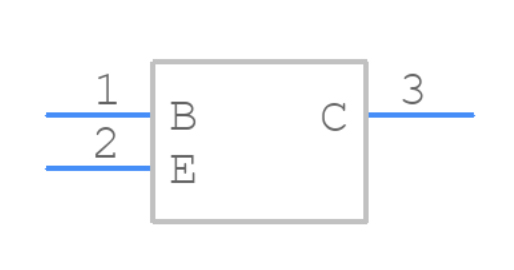

MMBT3906 Symbol

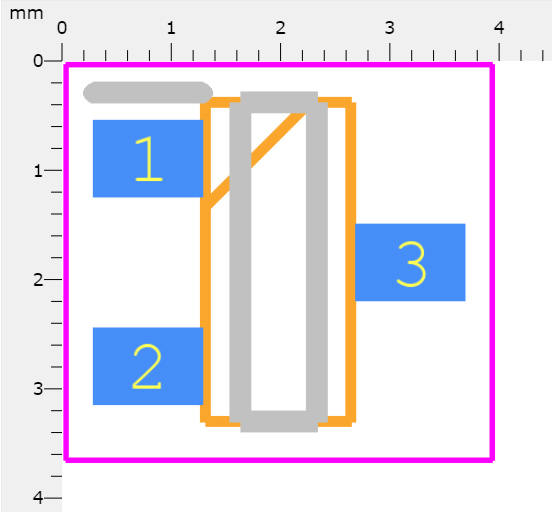

MMBT3906 Footprint

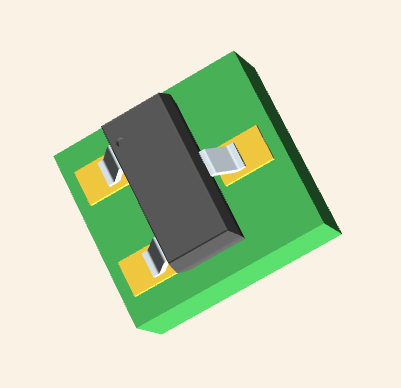

MMBT3906 3D Model
MMBT3906 Physical Dimensions
ON Semiconductor MMBT3906 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MMBT3906.
Changjiang Electronics Tech (CJ) MMBT3906 technical specifications, attributes, parameters and parts with similar specifications to Changjiang Electronics Tech (CJ) MMBT3906.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | SOT-23(SOT-23-3) | |
| Current-Collector (Ic) (Max) | 200mA | |
| Packaging | Tape & Reel (TR) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power - Max | 200mW | |
| Transistor Type | PNP | |
| Voltage - Collector Emitter Breakdown (Max) | 40V |
| Product Attribute | Attribute Value | |
|---|---|---|
| RoHS Status | RoHS Compliant |
Epitaxial Planar Die Construction
Ideal for Medium Power Amplification and Switching
Complementary NPN Type: MMBT3904
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free . “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
MMBT3906 Logic Symbols
