Transistors - Bipolar (BJT) - Single MMBTA42 Series 300 V 100 mA SMT NPN High-Voltage Transistor - SOT-23-3
90
Dec 7, 2021
Phyllis Butler
Transistors - Bipolar (BJT) - Single MMBTA42 Series 300 V 100 mA SMT NPN High-Voltage Transistor - SOT-23-3
MMBTA42 is an NPN Silicon High-Voltage Transistor. This article will unlock its pinout, datasheet, feature and more details about MMBTA42. Welcome your RFQ!
MMBTA42,215
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.16785 | $0.17 |
| 10+ | $0.15835 | $1.58 |
| 100+ | $0.14938 | $14.94 |
| 500+ | $0.14093 | $70.47 |
| 1000+ | $0.13295 | $132.95 |
MMBTA42 Symbol
MMBTA42 Footprint
MMBTA42 3D Model
• Low collector-emitter saturation voltage
• Complementary types: SMBTA92 / MMBTA92 (PNP)
• Pb-free (RoHS compliant) package
• Qualified according AEC Q101
Telephony
Professional communication equipment
The alternatives for MMBTA42:
MMBTA42,215
SMBTA42
MMBTA42-7-f
MMBTA42g-ae3-r
Nexperia USA Inc. MMBTA42,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. MMBTA42,215.
Nexperia USA Inc. MMBTA42,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. MMBTA42,215.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Surface Mount | YES | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current-Collector (Ic) (Max) | 100mA | |
| Number of Elements | 1 Element | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q101 | |
| Published | 1998 |
| Product Attribute | Attribute Value | |
|---|---|---|
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Base Part Number | MMBTA42 | |
| Pin Count | 3 | |
| Configuration | SINGLE | |
| Power Dissipation | 250mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Application | SWITCHING | |
| Polarity/Channel Type | NPN | |
| Transistor Type | NPN | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 30mA 10V | |
| Current - Collector Cutoff (Max) | 100nA ICBO | |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 2mA, 20mA | |
| Voltage - Collector Emitter Breakdown (Max) | 300V | |
| Transition Frequency | 50MHz | |
| Frequency - Transition | 50MHz | |
| RoHS Status | ROHS3 Compliant |

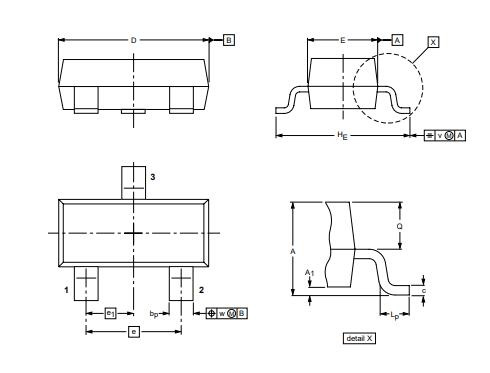

MMBTA42 Package
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
The similar parts from Nexperia are as follow MMBT3906VL, MMBT3904,215, MMBT3904, MMBT3904VL, MMBT3904,215 and so on
Download datasheets and manufacturer documentation for Nexperia USA Inc. MMBTA42,215.
Download datasheets and manufacturer documentation for MMBTA42,215
