OPTOISOLATOR 5KV TRIAC 6DIP
The MOC3021M is a 6 pin DIP through-hole random phase triac driver output optocoupler >optocoupler . This article mainly introduces circuit, pinout, datasheet and other detailed information about Lite-On Inc. MOC3021M.
MOC3021M
The MOC3021M is a 6 pin DIP through-hole random phase triac driver output optocoupler. A GaAs infrared emitting diode and a light-activated silicon bilateral switch that operates like a triac are used in this device. This device is used to connect electronic controllers to power triacs in order to control resistive and inductive loads in 115 VAC applications. Industrial controls, solenoid/valve control, traffic lights, static AC power switch, vending machines, incandescent bulb dimmers, solid-state relays, and lamp ballasts are examples of common applications.
The following figure shows MOC3021M Pinout.
Pinout
The following figures are MOC3021M Symbol, Footprint and 3D Model.

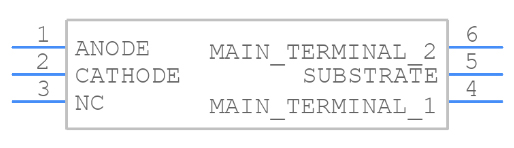

Symbol

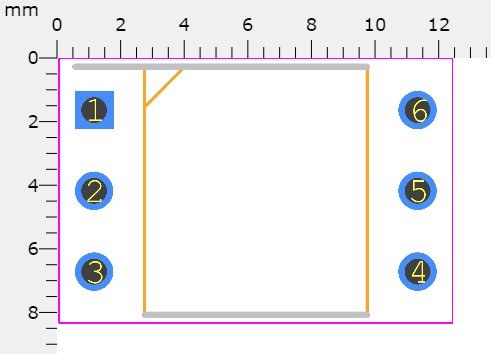

Footprint
3D Model
• Peak blocking voltage of 400V
• Isolation voltage of 4.17KV
• Non zero crossing triac operating mode
• UL 1577 and DIN-EN IEC60747-5-5 approved
• Operating temperature range from -40°C to 85°C
• LED trigger current is 15mA
Lite-On Inc. MOC3021M technical specifications, attributes, parameters and parts with similar specifications to Lite-On Inc. MOC3021M.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 6-DIP (0.300, 7.62mm) | |
| Number of Pins | 6Pins | |
| Current-Hold(Ih) | 250μA Typ | |
| Current-LED Trigger(Ift)(Max) | 15mA | |
| Number of Elements | 1 Element | |
| Zero-Crossing Circuit | No | |
| Operating Temperature | -40°C~100°C | |
| Packaging | Tube | |
| Published | 2010 | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Terminal Finish | Tin (Sn) | |
| Additional Feature | UL APPROVED, VDE APPROVED | |
| Approval Agency | CQC, CSA, TUV, UL, VDE | |
| Voltage - Isolation | 5000Vrms | |
| Output Voltage | 400V | |
| Output Type | Triac | |
| Configuration | SINGLE | |
| Number of Channels | 1Channel | |
| Power Dissipation | 330mW | |
| Turn On Delay Time | 20 μs |
| Product Attribute | Attribute Value | |
|---|---|---|
| Forward Current | 50mA | |
| Max Input Voltage | 1.5V | |
| Nominal Input Voltage | 1.15V | |
| Reverse Breakdown Voltage | 6V | |
| Max Input Current | 50mA | |
| Hold Current | 250μA | |
| Static dV/dt (Min) | 1kV/μs | |
| On-State Voltage-Max | 3V | |
| Input Trigger Current-Nom | 8mA | |
| Peak Surge Current | 1A | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

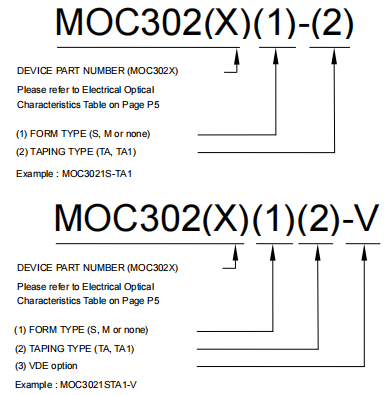

The following figure shows MOC3021M Naming Rule.
Naming Rule
The MOC3021M Typical Application Circuit is shown as follows.
Typical Application Circuit
The "hot" side of the line is switched in this circuit, while the load is attached to the cold or ground side.
The triac is snubbed with a 39 ohm resistor and a 0.01 μF capacitor, while the coupler is snubbed with a 470 ohm resistor and a 0.05μF capacitor. Depending on the situation and load, these components may or may not be required.
| Part Number | Description | Manufacturer |
| PC4SF21YWPBOPTOELECTRONICS | Triac Output Optocoupler With Zero CRSVR, 1-Element, 5000V Isolation, SMT, PLASTIC, DIP-6/5 | Sharp Corp |
| PC4SD11YTZCFOPTOELECTRONICS | Triac Output Optocoupler, 1-Element, 5000V Isolation, LEAD FREE, PLASTIC, DIP-6/5 | Sharp Corp |
| MOC3041SMOPTOELECTRONICS | Triac Output Optocoupler With Zero CRSVR, 1-Element, 5300V Isolation, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-6 | Isocom Components |
| MCP3020OPTOELECTRONICS | Triac Output Optocoupler, | Quality Technologies Corp |
| TIL3020OPTOELECTRONICS | 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-6 | Rochester Electronics LLC |
| TLP3011OPTOELECTRONICS | Optocoupler - Trigger Device Output, 1 CHANNEL TRIAC OUTPUT OPTOCOUPLER, PLASTIC, DIP-6 | Toshiba America Electronic Components |
| MCP3031OPTOELECTRONICS | Triac Output Optocoupler, 1-Element, 5300V Isolation, | QT Optoelectronics |
| MOC3041SR2MOPTOELECTRONICS | Triac Output Optocoupler With Zero CRSVR, 1-Element, 7500V Isolation, SURFACE MOUNT, DIP-6 | Fairchild Semiconductor Corporation |
| MOC3062OPTOELECTRONICS | Triac Output Optocoupler, 1-Element, 7500V Isolation, | QT Optoelectronics |
| MOC3061SR2VMOPTOELECTRONICS | Triac Driver Output Optocoupler, 6-Pin DIP 600V Zero Crossing, 1000-REEL | onsemi |
• Industrial Controls
• Traffic Lights
• Static AC Power Switch
• Vending Machines
• Incandescent Lamp Dimmers
• Motor Control
• Lamp Ballasts
• AC Motor Drives
• AC Motor Starters
• E.M. Contactors
• Lighting Controls
• Solenoid/Value Controls
• Solid State Relays
• Static Power Switches
• Temperature Controls
The following figure is MOC3021M Package.
Package
Lite-On began manufacturing LED bulbs in 1975 and has since grown to become one of the world's largest optoelectronics companies, offering customers both visible and infrared product solutions. Lite-success On's has been attributed to high volume capacities for commodity items and application-specific products, as well as strong R&D and vertical integration.
