MP160 Quartz Crystal: Application, Pinout, Datasheet

Symbol

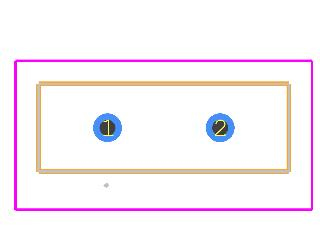

Footprint

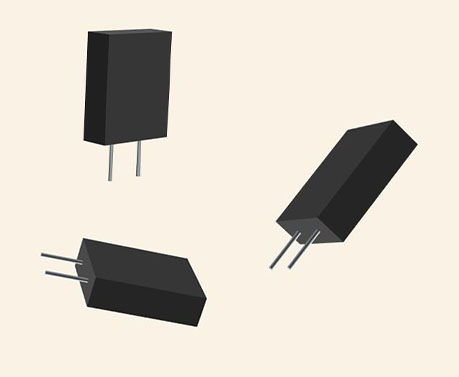

3D Model

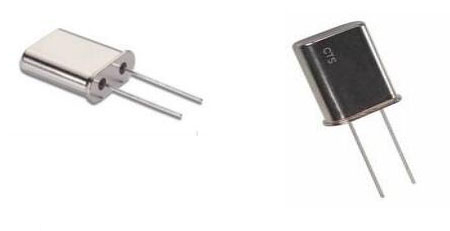

The MP160 is a Quartz Crystal available in Tape and Reel Packaging from the MP series. The MP crystal series offers excellent long-term stability and reliability in a proven resistance weld metal package. The excellent shock performance makes it suitable for microprocessors, telecommunication, consumer electronics and networking applications.

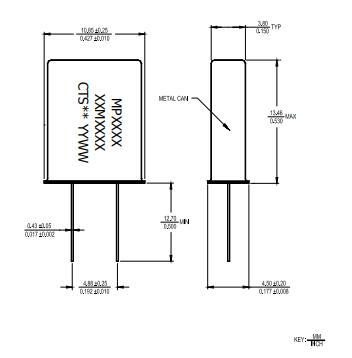

• Standard HC-49/U Metal Package

• Fundamental and 3rd Overtone Crystal Design

• Frequency Range 1.8432 – 64MHz

• Frequency Tolerance, ±30ppm Standard

• Frequency Stability, ±50ppm Standard

• Operating Temperature Range -20°C to +70°C or -40°C to +85°C

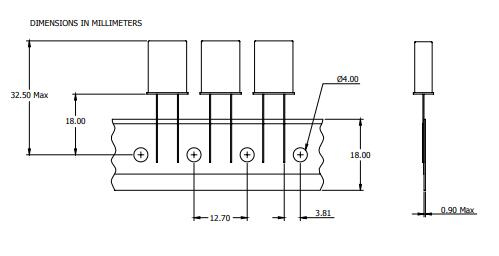

• Tape and Reel Packaging Available

CTS-Frequency Controls MP160 technical specifications, attributes, parameters and parts with similar specifications to CTS-Frequency Controls MP160.

• Wireless Communications

• Broadband Access

• FPGA/Microcontrollers

• Computer Peripherals

• Microprocessors

• Test and Measurement

• Consumer Electronics

• Portable Equipment

CTS Electronic Components is a division of CTS Corporation. The division has five product lines: Electro-components, Filters, Frequency Control, Resistors, and Thermal Management Solutions. The company manufactures an extensive array of frequency-control devices, ceramic RF filters and duplexers, EMI/RFI filters, capacitors, DIP and rotary switches, rotary and linear potentiometers, encoders, resistor and resistor/capacitor networks, and heat management components.

Download datasheets and manufacturer documentation for CTS-Frequency Controls MP160.
