MPS2222A Transistor：MPS2222A vs. 2N2222，MPS2222A Datasheet

MPS2222A Pinout

Symbol

MPS2222A Symbol

Footprint

MPS2222A Footprint

3D Model

MPS2222A 3D Model

The MPS2222A  is silicon  Planar Epitaxial NPN   transistors. It is designed for high-speed switching applications at collector current up to 500mA  and features useful current gain over a wide range of collector current, low leakage currents, and low saturation voltage.

• Type: NPN

• Collector-Emitter Voltage: 40 V

• Collector-Base Voltage: 75 V

• Emitter-Base Voltage: 6 V

• Collector Current: 0.6 A

• Collector Dissipation: 0.625 W

• DC Current Gain (h_fe): 100 to 300

• Transition Frequency: 300 MHz

• Noise Figure: 4 dB

• Operating and Storage Junction Temperature Range: -55 to +150 °C

• Package: TO-92

• Electrically Similar to the Popular 2N2222A transistor

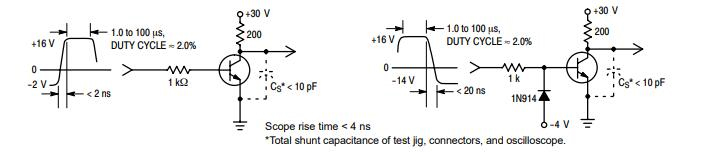

The following circuit shows the MPS2222A  test circuit.

Turn off time

The equivalent circuit for MPS2222A

• 2N4401

• 2SC1008

• BC538

• KN2222A

• KSC1008

• KSP2222A

• PN2222A

MPS2222A Package
