Transistors - Bipolar (BJT) - Single, Pre-Biased SMALL SIGNAL BIPOLAR TRANSISTOR
MPSA05 is an NPN BJT transistor built for general purpose switching and amplification purposes. This article will unlock more details of MPSA05. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock. Welcome RFQ.
MPSA05
MPSA05 Symbol

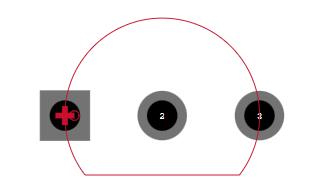

MPSA05 Footprint

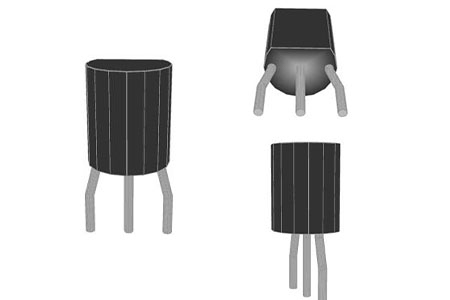

MPSA05 3D Model
MPSA05 is an NPN BJT transistor built for general purpose switching and amplification purposes. The transistor has good specifications, allowing it to be utilized in a wide range of applications. It can also be used to replace the widely used 2N3904, 2N2222, BC337, and other transistors. It can drive a load of up to 60 volts with a load current of 500mA because the maximum collector-emitter voltage is 60V. The lowest collector-emitter saturation voltage is only 0.25V, which is another useful feature if you wish to utilize this transistor in applications where low voltage is required.
Rochester Electronics ranks as a global leading semiconductor provider. Due to their products' characteristics of high quality and durability, these products are suitable for long-term production and maintenance in the fields of industry, transportation and high-reliability markets. Their large inventory includes more than 100,000 products and 15 billion units, making them exceed other companies in terms of selection, capabilities, or solutions.
Rochester Electronics, LLC MPSA05 technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC MPSA05.
Rochester Electronics, LLC MPSA05 technical specifications, attributes, parameters and parts with similar specifications to Rochester Electronics, LLC MPSA05.
| Product Attribute | Attribute Value | |
|---|---|---|
| Surface Mount | NO | |
| Transistor Element Material | SILICON | |
| Number of Elements | 1 Element | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| Terminal Finish | TIN LEAD |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | BOTTOM | |
| Terminal Form | THROUGH-HOLE | |
| Peak Reflow Temperature (Cel) | 240 | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Pin Count | 3 | |
| JESD-30 Code | O-PBCY-T3 | |
| Qualification Status | COMMERCIAL | |
| Configuration | SINGLE | |
| Transistor Application | AMPLIFIER |
| Product Attribute | Attribute Value | |
|---|---|---|
| Polarity/Channel Type | NPN | |
| JEDEC-95 Code | TO-92 | |
| Transition Frequency | 100MHz | |
| Collector Current-Max (IC) | 0.5A | |
| DC Current Gain-Min (hFE) | 100 | |
| Collector-Emitter Voltage-Max | 60V | |
| RoHS Status | Non-RoHS Compliant |

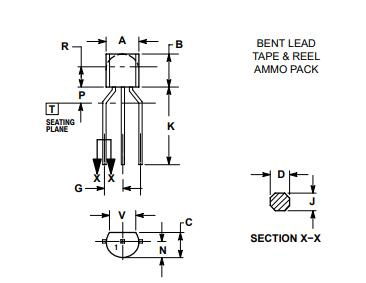

Package-Type: TO-92
Transistor Type: NPN
Max Collector Current(IC): 500mA
Max Collector-Emitter Voltage (VCE): 60V
Max Collector-Base Voltage (VCB): 60V
Max Emitter-Base Voltage (VEBO): 5V
Max Collector Dissipation (Pc): 625 mW
Max Transition Frequency (fT): 100 MHz
Minimum & Maximum DC Current Gain (hFE): 100
Max Storage & Operating temperature Should Be: -55 to +150 Centigrade
Switching loads up to 500mA
Audio amplification
Telecommunication circuits
RF Applications
Darlington pairs
Many general-purpose applications
MPSA06
2N7051
2SC4145
MPSA28
MPSA29
BC538
BC538-10
BC538-16
BC538-25
2N5551
BC537
2N5833
2N5550
2N5831
2N5832
2SC2036
2SC4145
BDB01D
2N5830
2N2405
MPSL01
MPSA05 is a transistor that can be utilized in practically any application that fits within its specifications. It can drive a load of up to 500mA when used as a switch, which is enough current to drive a variety of components in electronic circuits such as relays, LEDs, high-power transistors, and other circuit components. It can also be used as an amplifier, such as in audio amplifier stages or as a separate audio amplifier at the audio output stage to drive a speaker. Aside from that, the 100MHz transition frequency allows it to be used in RF circuits below 100MHz.
OFF CHARACTERISTICS
|
Collector-Emitter Breakdown Voltage (Note 2) (IC = 1.0 mAdc, IB = 0) MPSA05, MPSA55 MPSA06, MPSA56 |
V(BR)CEO |
60 80 |
− − |
Vdc |
|
Emitter − Base Breakdown Voltage (IE = 100 µAdc, IC = 0) |
V(BR)EBO |
4.0 |
− |
Vdc |
|
Collector Cutoff Current (VCE = 60 Vdc, IB = 0) |
ICES |
− |
0.1 |
µAdc |
|
Collector Cutoff Current (VCB = 60 Vdc, IE = 0) MPSA05, MPSA55 (VCB = 80 Vdc, IE = 0) MPSA06, MPSA56 |
ICBO |
− − |
0.1 0.1 |
µAdc |
ON CHARACTERISTICS
|
DC Current Gain (IC = 10 mAdc, VCE = 1.0 Vdc) (IC = 100 mAdc, VCE = 1.0 Vdc) |
hFE |
100 100 |
− − |
− |
|
Collector − Emitter Saturation Voltage (IC = 100 mAdc, IB = 10 mAdc) |
VCE(sat) |
− |
0.25 |
Vdc |
|
Base−Emitter On Voltage (IC = 100 mAdc, VCE = 1.0 Vdc) |
VBE(on) |
− |
1.2 |
Vdc |
MPSA Switching Time Test Circuits
