MPSA56 Transistor: MPSA56, Equivalent, Datasheet

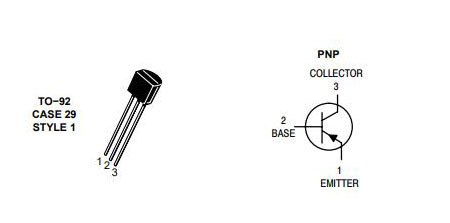

MPSA56 Symbol

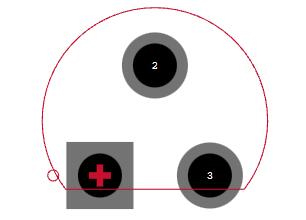

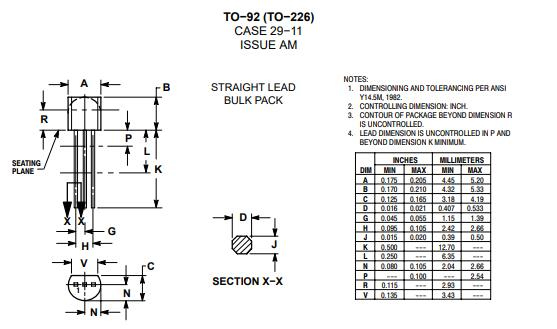

MPSA56 Footprint

MPSA56 3D Model

The MPSA56 is a PNP BJT transistor that can be used for switching and amplification.  This transistor's specifications are quite good, making it appropriate for a wide range of applications. The transistor's collector current is -500mA, therefore it can drive a variety of small loads in circuits with a current of less than -500mA. The transistor's collector to emitter voltage is -80V, hence it can drive a load voltage of up to -80V. Furthermore, the collector to emitter saturation voltage is only 0.25V, making this transistor ideal for low voltage switching applications.

• Transistor Type:  PNP

• Max Collector Current(IC): –500mA

• Max Collector-Emitter Voltage (VCE): –80V

• Max Collector-Base Voltage (VCB): –80V

• Max Emitter-Base Voltage (VEBO): –4V

• Max Collector Dissipation (Pc): 625 mW

• Max Transition Frequency (fT): 50 MHz

• Minimum & Maximum DC Current Gain (hFE): 100

• Max Storage & Operating temperature Should Be: -55 to +150 ℃

• Audio amplifier applications

• Telecommunication and computer applications

• RF Applications

• Any type of general-purpose application

The equivalent for MPSA56:

• 2SA1315Y

• BC528

• 2N5401

• BC527

• BC490A

MPSA56 can be utilized in electrical circuits for a wide range of general-purpose switching and amplification needs. It can drive loads of up to -500mA as a switch, therefore it can power a lot of LEDs, relays, and high-power transistors in electronic circuits. It can, however, be used as a standalone audio amplifier as well as in audio amplifier stages. It can also be used in RF applications that are less than 50MHz.

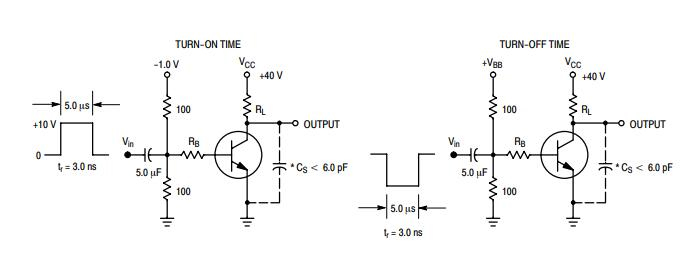

The following circuit shows the test circuit of MPSA56:

MPSA56 Test Circuit
