The MPU6050 is a Micro-Electro-Mechanical Systems (MEMS) which consists of a 3-axis Accelerometer and 3-axis Gyroscope inside it.. This article will introduce more details about MPU6050.
MPU-6050EVB
The MPU6050 is a Micro-Electro-Mechanical System (MEMS) which consists of a 3-axis Accelerometer and 3-axis Gyroscope inside it. It helps to measure acceleration, velocity, orientation, displacement and many other motion-related parameters of a system or object. This module also has a (DMP) Digital Motion Processor inside it which is powerful enough to perform complex calculations and thus free up the work for Microcontroller.
TDK InvenSense MPU-6050EVB technical specifications, attributes, parameters and parts with similar specifications to TDK InvenSense MPU-6050EVB.
TDK InvenSense MPU-6050EVB technical specifications, attributes, parameters and parts with similar specifications to TDK InvenSense MPU-6050EVB.
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Box | |
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Voltage - Supply | 2.375V~3.46V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Interface | I2C | |
| Utilized IC / Part | MPU-6050 | |
| Supplied Contents | Board(s) | |
| Evaluation Kit | Yes |
| Product Attribute | Attribute Value | |
|---|---|---|
| Sensor Type | Accelerometer, Gyroscope, 3 Axis | |
| Sensing Range | ±2g, 4g, 8g, 16g, ±250°/sec, ±500°/sec, ±1000°/sec, ±2000°/sec | |
| RoHS Status | ROHS3 Compliant |

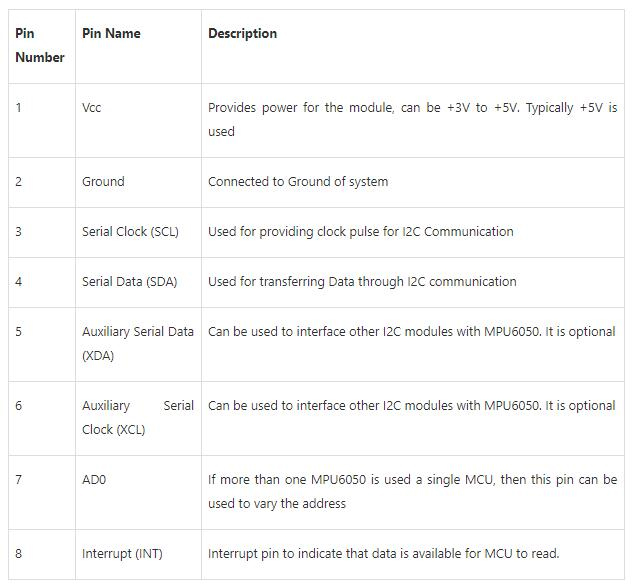

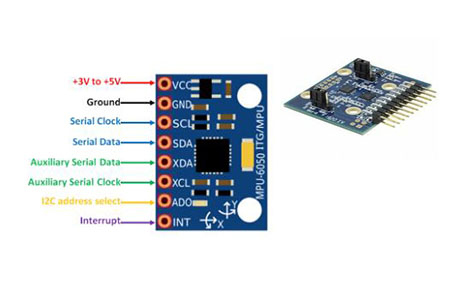

MEMS 3-axis accelerometer and 3-axis gyroscope values combined
Power Supply: 3-5V
Communication: I2C protocol
Built-in 16-bit ADC provides high accuracy
Built-in DMP provides high computational power
Can be used to interface with other IIC devices like a magnetometer
Configurable IIC Address
In-built temperature sensor
Used for IMU measurement
Drones / Quadcopters
Self balancing robots
Robotic arm controls
Humanoid robots
Tilt sensor
Orientation / Rotation Detector

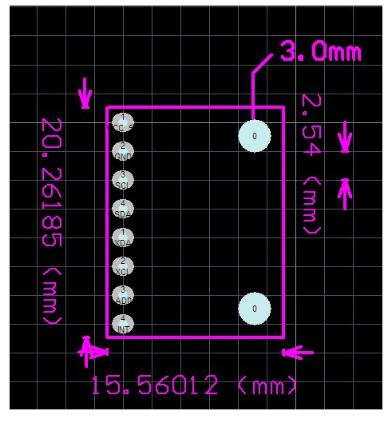

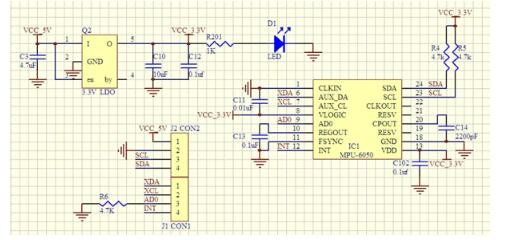

The hardware of the module is very simple, it actually comprises the MPU6050 as the main components as shown below. Since the module works on 3.3V, a voltage regulator is also used. The IIC lines are pulled high using a 4.7k resistor and the interrupt pin is pulled down using another 4.7k resistor.

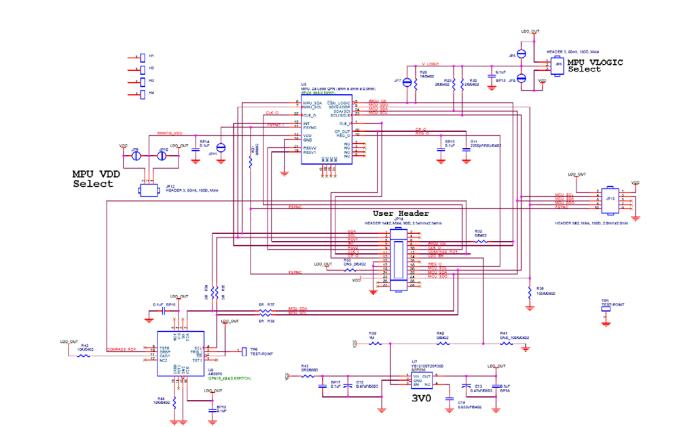

The MPU6050 module allows us to read data from it through the IIC bus. Any change in motion will be reflected on the mechanical system which will, in turn, vary the voltage. Then the IC has a 16-bit ADC which it uses to accurately read these changes in voltage and stores it in the FIFO buffer and makes the INT (interrupt) pin go high. This means that the data is ready to be read, so we use a MCU to read the data from this FIFO buffer through IIC communication. As easy as it might sound, you may face some problems while actually trying to make sense of the data.
