NXP MPX5010DP Pressure Sensor, Differential, 450 mV/kPa, 0 kPa, 10 kPa, 4.75 V, 5.25 V
545
Sep 23, 2021
Hulda MacArthur
NXP MPX5010DP Pressure Sensor, Differential, 450 mV/kPa, 0 kPa, 10 kPa, 4.75 V, 5.25 V
The MPX5010DP is state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
MPX5010DP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $17.07754 | $17.08 |
| 10+ | $16.11088 | $161.11 |
| 100+ | $15.19895 | $1519.9 |
| 500+ | $14.33863 | $7169.32 |
| 1000+ | $13.52701 | $13527.01 |
The MPX5010DP is a dual port, integrated silicon pressure sensor in 6 pin SIP package. This piezoresistive transducer is state of the art monolithic silicon pressure sensor designed for wide range of applications. It is ideally suited for microprocessor or microcontroller based system. This transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate, high level analogue output signal that is proportional to applied pressure. The axial port has been modified to accommodate industrial grade tubing.
Symbol
Footprint
3D-Model
• 5.0% Maximum Error over 0° to 85°C
• Ideally Suited for Microprocessor or Microcontroller-Based Systems
• Durable Epoxy Unibody and Thermoplastic (PPS) Surface Mount Package
• Temperature Compensated over -40° to +125°C
• Patented Silicon Shear Stress Strain Gauge
• Available in Differential and Gauge Configurations
• Available in Surface Mount (SMT) or Through-hole (DIP) Configurations
NXP USA Inc. MPX5010DP technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. MPX5010DP.
NXP USA Inc. MPX5010DP technical specifications, attributes, parameters and parts with similar specifications to NXP USA Inc. MPX5010DP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Package / Case | 6-SIP Module | |
| Surface Mount | NO | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Operating Temperature | -40°C~125°C | |
| Series | MPX5010 | |
| Published | 1998 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable | |
| ECCN Code | EAR99 | |
| Applications | Board Mount | |
| HTS Code | 8542.39.00.01 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 4.75V~5.25V | |
| Output | 0.2 V ~ 4.7 V | |
| Termination Style | PC Pin | |
| Body Length or Diameter | 29.46mm | |
| Body Breadth | 10.67 mm | |
| Output Type | Analog Voltage | |
| Accuracy | ±5% | |
| Response Time | 1000 µs | |
| Operating Pressure | 1.45PSI (10kPa) | |
| Pressure Type | Differential | |
| Port Style | Barbed | |
| Port Size | Male - 0.19 4.93mm Tube Dual |
| Product Attribute | Attribute Value | |
|---|---|---|
| Linearity | 5 % | |
| Maximum Pressure | 5.8PSI (40kPa) | |
| Sensors/Transducers Type | PRESSURE SENSOR,PEIZORESISTIVE | |
| Housing | PLASTIC | |
| Pressure Range-Max | 1.45 Psi | |
| Offset-Nom | 0.20V | |
| Features | Temperature Compensated | |
| Sensitivity (mV/V) | 450 mV/V | |
| Body Height | 28.7mm | |
| RoHS Status | ROHS3 Compliant |
Fully Integrated Pressure Sensor Schematic

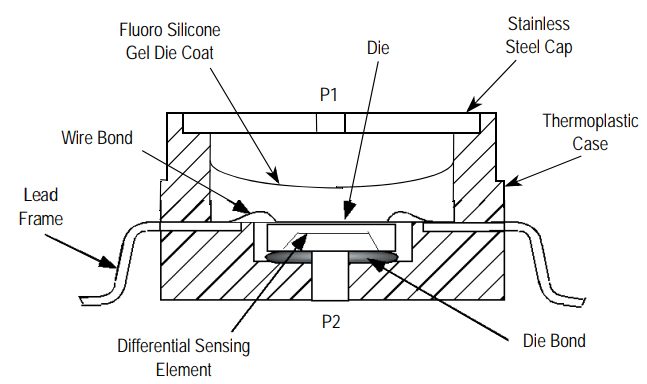

Cross-Sectional Diagram SOP
• Hospital Beds
• HVAC
• Respiratory Systems
• Process Control
• Washing Machine Water Level Measurement (Reference AN1950)
• Ideally Suited for Microprocessor or Microcontroller-Based Systems
• Appliance Liquid Level and Pressure Measurement
MPX5010DP UNIBODY PACKAGE
NXP Semiconductors is dedicated to providing secure connectivity solutions for embedded applications, the company has 45, 000 employees in more than 35 countries. And has been operating, with its experience and expertise, for more than 60 years. As a leader in this field, NXP is driving innovation in the secure connected vehicle, end-to-end security & privacy and smart connected solutions markets, with the hope of making lives easier, better and safer Freescale Semiconductor parts are now a part of the NXP family.
Download datasheets and manufacturer documentation for NXP USA Inc. MPX5010DP.
Download datasheets and manufacturer documentation for MPX5010DP
