MS5637 Pressure Sensor:Pinout, Advantage,and Application Circuit

The MS5637 is an ultra-compact micro altimeter. It is optimized for altimeter and barometer applications in Smart-phones and Tablet PCs.

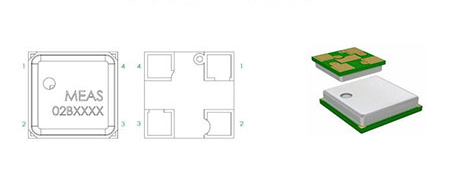

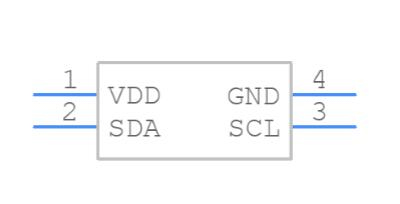

Symbol

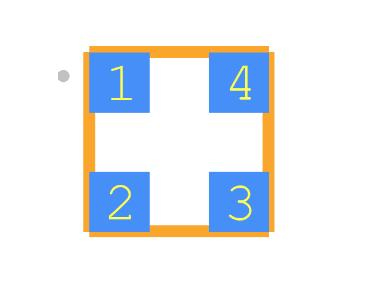

Footprint

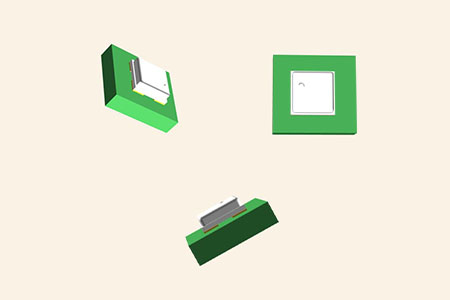

3D Model

• It provides a precise digital 24-bit pressure and temperature value and different operation modes that allow the user to optimize for conversion speed and current consumption.

• A high-resolution temperature output allows the implementation of an altimeter/thermometer function without any additional sensor.

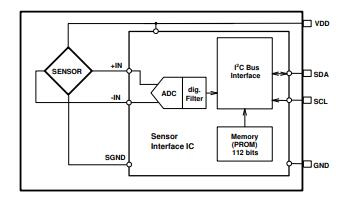

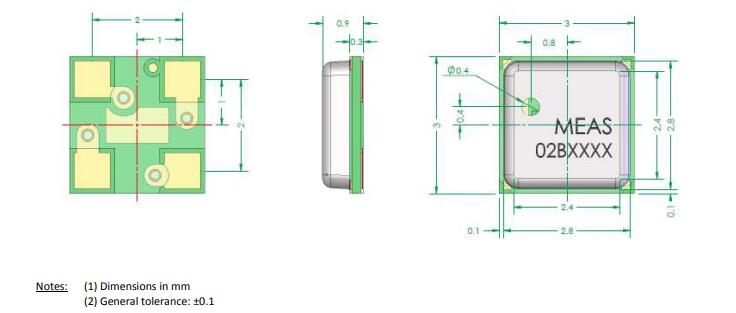

• Small dimensions of 3 x 3 x 0.9 mm3 allow the integration in mobile devices.

• The communication protocol is simple, without the need of programming internal registers in the device.

• The sensing principle employed leads to very low hysteresis and high stability of both pressure and temperature signal.
