MT3608
The MT3608 is a 6-pin SOT23 constant frequency current mode step-up converter designed for low-power applications. The MT3608 operates at 1.2MHz and enables the use of small, low-cost capacitors and inductors with a height of 2mm or less. Internal soft-start reduces inrush current and hence increases battery life.
| PIN | NAME | FUNCTION |
| 1 | SW | Power Switch Output. SW is the drain of the internal MOSFET switch. Connect the power inductor and output rectifier to SW. SW can swing between GND and 28V. |
| 2 | GND | Ground Pin |
| 3 | FB | Feedback Input. The FB voltage is 0.6V. Connect a resistor divider to FB. |
| 4 | EN | Regulator On/Off Control Input. A high input at EN turns on the converter, and a low input turns it off. When not used, connect EN to the input supply for automatic startup. |
| 5 | IN | Input Supply Pin. Must be locally bypassed. |
| 6 | NC | NC |
MT3608 Symbol

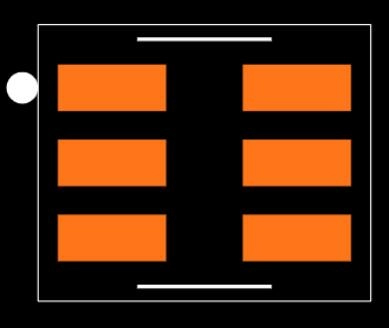

MT3608 Footprint
MT3608 3D Model

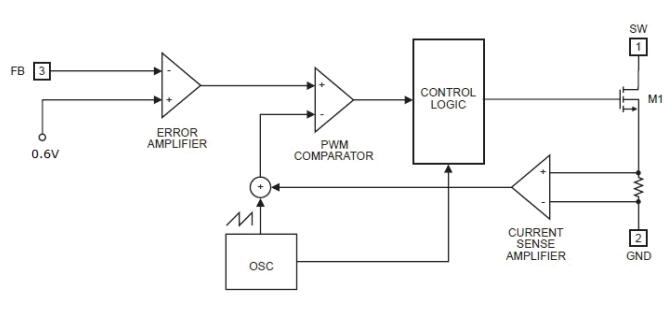

MT3608 Functional Block Diagram
XI'AN Aerosemi Tech MT3608 technical specifications, attributes, parameters and parts with similar specifications to XI'AN Aerosemi Tech MT3608.
XI'AN Aerosemi Tech MT3608 technical specifications, attributes, parameters and parts with similar specifications to XI'AN Aerosemi Tech MT3608.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | SOT-23-6 | |
| Packaging | Tape & Reel (TR) | |
| Function | Step-Up | |
| Number of Outputs | 1Output |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Input (Max) | 24V | |
| Output Type | Adjustable | |
| Voltage - Input (Min) | 2V | |
| Output Configuration | Positive |
| Product Attribute | Attribute Value | |
|---|---|---|
| Topology | Boost | |
| Frequency - Switching | 1.2MHz | |
| Voltage - Output (Max) | 28V | |
| RoHS Status | RoHS Compliant |
Integrated 80mΩ Power MOSFET
2V to 24V Input Voltage
Internal 4A Switch Current Limit
Adjustable Output Voltage
Internal Compensation
Up to 28V Output Voltage
Up to 97% Efficiency
1.2MHz Fixed Switching Frequency
Available in a 6-Pin SOT23-6 Package
Automatic Pulse Frequency Modulation Mode at Light Loads
Set-Top Boxed
LCD Bias Supply
Battery-Powered Equipment
DSL and Cable Modems and Routers
Networking cards powered from PCI or PCI Express slots

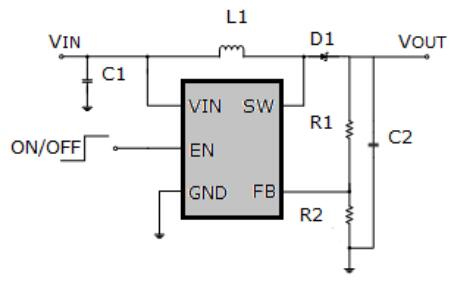

MT3608 Application Circuit

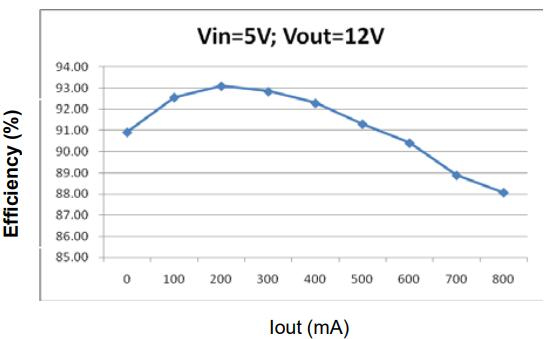

MT3608 Efficiency
The MT3608 can be utilized in applications that require a voltage of less than 28V and a current of less than 2A. As a result, this module is best suited for portable devices such as power banks and portable power sources. It can also be utilized in educational projects due to its inexpensive cost.
You can connect an input voltage ranging from 2V to 24V DC to the MT3608. A battery, a solar cell, or any other accessible source can be used as the input source. After connecting the input voltage, connect a digital multimeter to the output voltage points of the module and pick above 28V from the digital multimeter voltage selection panel. Adjust the variable resistor until the multimeter shows your desired output voltage.
MT3608 Circuit
MT3608 Package Dimensions
