Hello, guys. I am Rose. In today's post, I will introduce MT8870 to you. MT8870 is a DTMF Receiver. This article mainly introduce pin description, price, datasheet and other detailed information about Microchips Technology MT8870.
MT8870DS1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $10.43138 | $10.43 |
| 10+ | $9.84093 | $98.41 |
| 100+ | $9.28389 | $928.39 |
| 500+ | $8.75839 | $4379.2 |
| 1000+ | $8.26263 | $8262.63 |

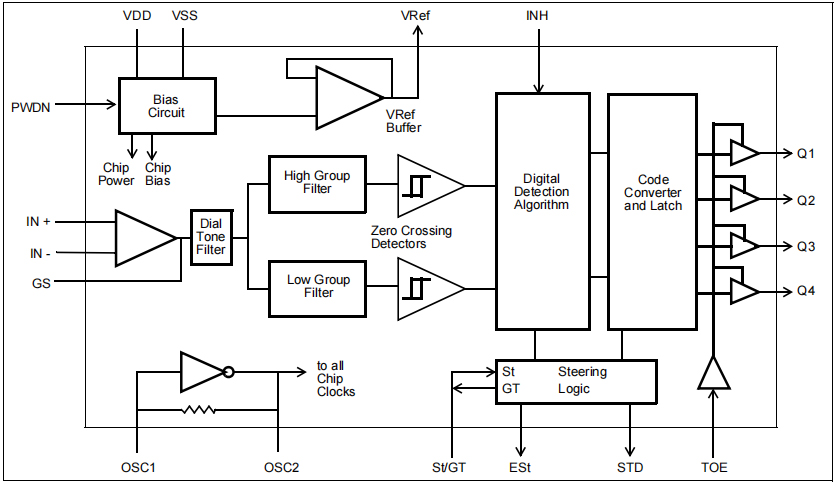

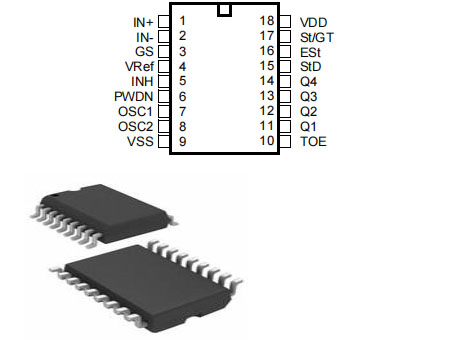

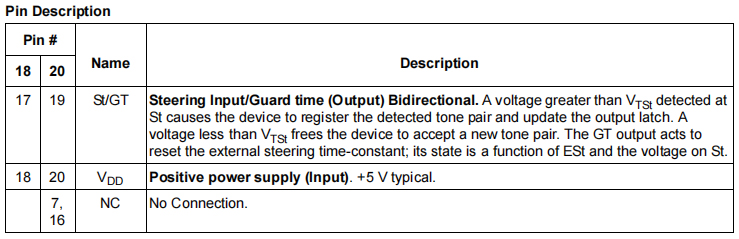

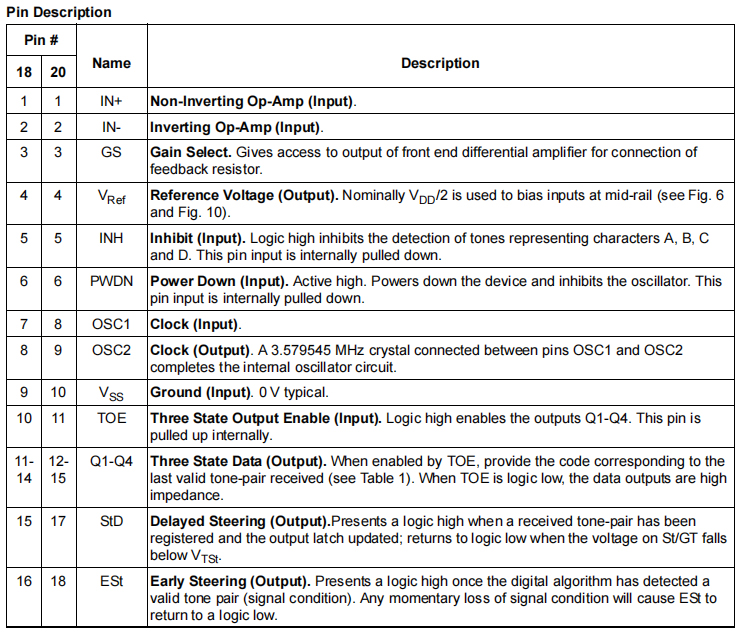

The MT8870 is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder uses digital counting techniques to detect and decode all 16 DTMF tone-pairs into a 4-bit code.
It is commonly used to control robots with a mobile phone, it is also used in different kinds of home automation projects where mobile dial pad input is required. This module works as a tone decoder that uses its 3.5 mm audio connector socket to get the input audio signal. It is popularly used for mobile and fixed telephone voice dialing and recording related functions.

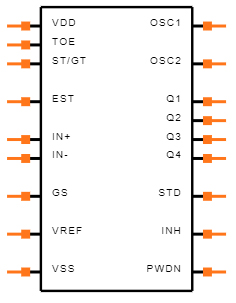

Symbol

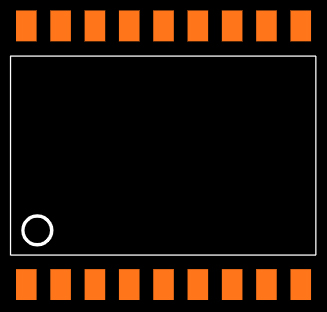

Footprint

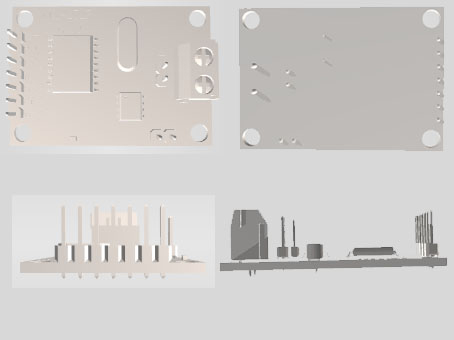

3D Model
● Power Input: 5V Nominal (4.5V - 5.5V)
● Onboard 3.5mm jack input Facility
● MT8870 Based Frequency Decoder
● 5 Channel Interface
● Detects 0-9, A-D, *, #
● LED notifier for Output state
● 2.54” Pin pitch
● Board Dimension: 37 x 25 x 12 mm (l x w x h
● Complete DTMF Receiver
● Low power consumption
● Internal gain setting amplifier
● Adjustable guard time
● Central office quality
● Power-down mode
● Inhibit mode
● Backward compatible with MT8870C/MT8870C-1
Microchip Technology MT8870DS1 technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MT8870DS1.
Microchip Technology MT8870DS1 technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology MT8870DS1.

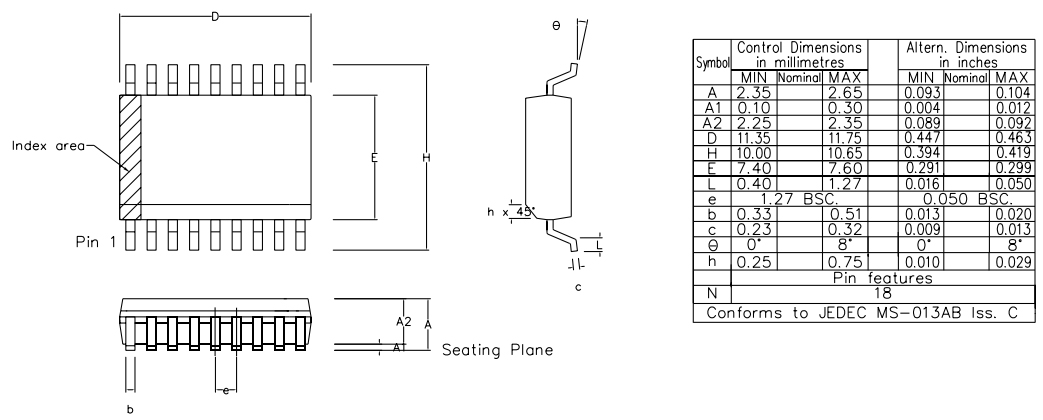

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | IN PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 8 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 18-SOIC (0.295, 7.50mm Width) | |
| Number of Pins | 18Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 18Terminations | |
| Terminal Finish | MATTE TIN | |
| Max Power Dissipation | 500mW | |
| Voltage - Supply | 4.75V~5.25V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 5V | |
| Frequency | 3.58MHz | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Function | DTMF Receiver | |
| Operating Supply Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power Supplies | 5V | |
| Number of Circuits | 1Circuit | |
| Operating Supply Current | 3mA | |
| Nominal Supply Current | 3mA | |
| Logic Function | Receiver | |
| Telecom IC Type | DTMF SIGNALING CIRCUIT | |
| Height Seated (Max) | 2.65mm | |
| Width | 7.5mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
● Wired Robot control via mobile phone keypad.
● Home Automation
● Security Systems
● Receiver system for British Telecom (BT) or CEPT Spec (MT8870D-1)
● Paging systems
● Repeater systems/mobile radio
● Credit card systems
● Remote control
● Personal computers
● Telephone answering machine
Microchip Technology Inc. is a publicly-listed American corporation that manufactures microcontroller, mixed-signal, analog and Flash-IP integrated circuits. Its products include microcontrollers (PIC, dsPIC, AVR and SAM), Serial EEPROM devices, Serial SRAM devices, embedded security devices, radio frequency (RF) devices, thermal, power and battery management analog devices, as well as linear, interface and wireless products. Its corporate headquarters is located in Chandler, Arizona.
Download datasheets and manufacturer documentation for Microchip Technology MT8870DS1.
Download datasheets and manufacturer documentation for MT8870DS1
