DIODE GEN PURP 600V 4A DO201AD MUR460 is a power rectifier, ultra-Fast recovery, switch-mode, 4 A, 600 V products, is a fast recovery diode. This article mainly introduces features, pinout, datasheet and other detailed information about ON Semiconductor MUR460.
610
Oct 1, 2021
Bowen Saxton
DIODE GEN PURP 600V 4A DO201AD
MUR460 is a power rectifier, ultra-Fast recovery, switch-mode, 4 A, 600 V products, is a fast recovery diode. This article mainly introduces features, pinout, datasheet and other detailed information about ON Semiconductor MUR460.
MUR460G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.85574 | $0.86 |
| 10+ | $0.8073 | $8.07 |
| 100+ | $0.7616 | $76.16 |
| 500+ | $0.71849 | $359.25 |
| 1000+ | $0.67782 | $677.82 |
MUR460 is a power rectifier, ultra-Fast recovery, switch-mode, 4 A, 600 V products, is a fast recovery diode. The reverse recovery time of fast recovery diodes is generally several hundred nanoseconds, the forward voltage drop is about 0.6V, the forward current is several amperes to several thousand amperes, and the reverse peak voltage can reach several hundred to several thousand volts. The reverse recovery charge of the ultrafast recovery diode is further reduced so that its trr can be as low as tens of nanoseconds.
Symbol
Footprint
3D Model
• Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
• 175°C Operating Junction Temperature
• Low Forward Voltage
• Low Leakage Current
• High-Temperature Glass Passivated Junction
• Reverse Voltage to 600 V
• Shipped in Plastic Bags, 500 per Bag
• Available in Tape and Reel, 1500 per Reel, by Adding an “RLG’’ Suffix to the Part Number
• MUR460 available in Fan Fold Ammo Pak, 1000 per Box, by adding an “FFG” suffix to the part number
• These are Pb−Free Packages*
ON Semiconductor MUR460G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MUR460G.
ON Semiconductor MUR460G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MUR460G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 4 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Through Hole | |
| Package / Case | DO-201AA, DO-27, Axial | |
| Surface Mount | NO | |
| Number of Pins | 2Pins | |
| Weight | 4.535924g | |
| Diode Element Material | SILICON | |
| Breakdown Voltage / V | 600V | |
| Number of Elements | 1 Element | |
| Packaging | Bulk | |
| Series | SWITCHMODE™ | |
| Published | 2000 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Termination | Axial | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Operating Temperature | 175°C | |
| Min Operating Temperature | -65°C | |
| Applications | ULTRA FAST RECOVERY POWER | |
| Additional Feature | FREE WHEELING DIODE, LOW LEAKAGE CURRENT | |
| HTS Code | 8541.10.00.80 | |
| Voltage - Rated DC | 600V | |
| Terminal Form | WIRE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Current Rating | 4A | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | MUR460 | |
| Pin Count | 2 | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 10μA @ 600V | |
| Output Current | 4A | |
| Voltage - Forward (Vf) (Max) @ If | 1.28V @ 4A | |
| Case Connection | ISOLATED | |
| Forward Current | 4A | |
| Operating Temperature - Junction | -65°C~175°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Surge Current | 110A | |
| Halogen Free | Halogen Free | |
| Forward Voltage | 1.28V | |
| Max Reverse Voltage (DC) | 600V | |
| Average Rectified Current | 4A | |
| Number of Phases | 1Phase | |
| Reverse Recovery Time | 75 ns | |
| Peak Reverse Current | 10μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 600V | |
| Peak Non-Repetitive Surge Current | 110A | |
| Reverse Voltage | 600V | |
| Max Forward Surge Current (Ifsm) | 110A | |
| Recovery Time | 75 ns | |

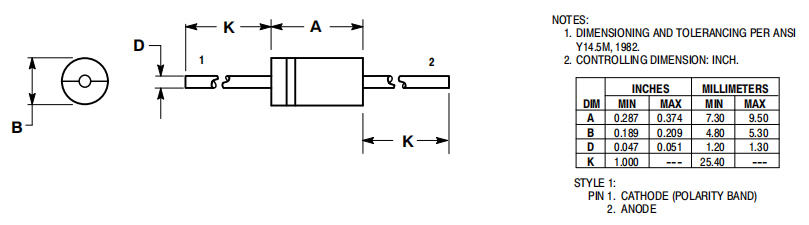

| Diameter | 5.3mm | |
| Height | 9.5mm | |
| Length | 9.4996mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Part Number | Description | Manufacturer |
| 30DF6DIODES | Rectifier Diode, 1 Phase, 1 Element, 1.57A, 600V V(RRM), Silicon | Nihon Inter Electronics Corporation |
| SF47-BDIODES | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, | Rectron Semiconductor |
| MUR460GDIODES | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, | Taiwan Semiconductor |
| SF48GDIODES | Rectifier Diode, 1 Element, 4A, 600V V(RRM), | LRC Leshan Radio Co Ltd |
| MUR460GP-AP-HFDIODES | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 | Micro Commercial Components |
| MUR460-TP-HFDIODES | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, | Micro Commercial Components |
| FSF48GDIODES | Rectifier Diode, 1 Phase, 1 Element, 4A, 600V V(RRM), Silicon, DO-201AD, ROHS COMPLIANT, PLASTIC PACKAGE-2 | Fagor Electrónica |
• Switching Power Supply
• Pulse Width Modulator (PWM)
• Uninterruptible Power Supply (UPS)
• C Motor Variable Frequency Speed Regulation (VVVF)
• High-frequency Heating And Other Devices are Used As High-frequency
• High-current Freewheeling Diodes or Rectifiers
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices.
Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power applications. ON Semiconductor runs a network of manufacturing facilities, sales offices and design centers in North America, Europe, and the Asia Pacific regions. Headquartered in Phoenix, Arizona.
Download datasheets and manufacturer documentation for MUR460G
