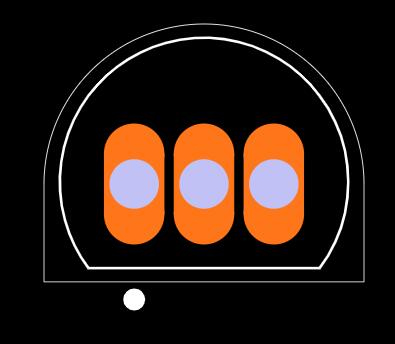

MV104 Footprint
MV104 3D Model

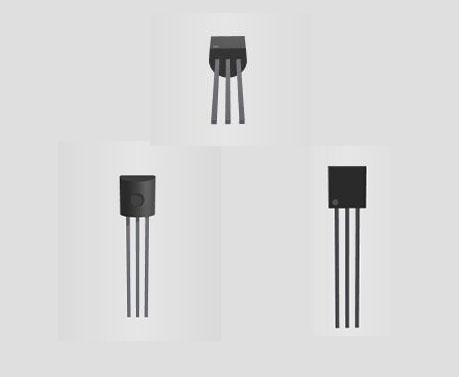

MV104 Description
The MV104 is a dual voltage variable capacitance diode, is designed for FM tuning, general frequency control and tuning, or any top-of-the-line application requiring back-to-back diode configurations for minimum signal distortion and detuning.
Specifications
ON Semiconductor MV104 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MV104.
MV104 Tech Specifications
MV104 Tech Specifications
ON Semiconductor MV104 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MV104.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | CONSULT SALES OFFICE (Last Updated: 6 days ago) | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Mounting Type | Through Hole | |
| Mount | Through Hole | |
| Number of Pins | 3Pins | |
| Diode Element Material | SILICON | |
| Power Dissipation (Max) | 0.28W | |
| Number of Elements | 2 Elements | |
| Breakdown Voltage / V | 32V | |
| Published | 2007 | |
| Packaging | Bulk | |
| Operating Temperature | 125°C TJ | |
| JESD-609 Code | e0 | |
| Pbfree Code | no |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Additional Feature | 1% MATCHING GUARANTEED | |
| HTS Code | 8541.10.00.80 | |
| Capacitance | 37pF | |
| Voltage - Rated DC | 32V | |
| Terminal Position | BOTTOM | |
| Peak Reflow Temperature (Cel) | 240 | |
| Reach Compliance Code | not_compliant | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Pin Count | 3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Qualification Status | Not Qualified | |
| Element Configuration | Common Cathode | |
| Diode Type | 1 Pair Common Cathode | |
| Capacitance @ Vr, F | 42pF @ 3V 1MHz | |
| Reverse Voltage | 32V | |
| Diode Capacitance-Nom | 39.5pF | |
| Capacitance Ratio | 2.8 | |
| Capacitance Ratio Condition | C3/C30 | |
| Quality Factor-Min | 100 | |
| Q @ Vr, F | 140 @ 3V, 100MHz | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
MV104 Application Circuit
MV104 Application Circuit
MV104 Alternatives
| Parts | Description | Manufacturer |
| MV104RLRA DIODES | Variable Capacitance Diode, 32V, Silicon, Abrupt, TO-92 | Motorola Semiconductor Products |
| MV104 DIODES | Variable Capacitance Diode, 39pF C(T), 32V, Silicon, Abrupt, TO-226AA | Motorola Semiconductor Products |
| MV104RLRAG DIODES | Tuning Diode,dual, common cathode, 32V C3/C30 = 2.5-2.8, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL | ON Semiconductor |
| MV104G DIODES | VARACTOR DIODE,SINGLE,36PF C(T),TO-92 | Freescale Semiconductor |
MV104 Features
• High Figure of Merit --
Q = 140 (Typ) @ VR = 3.0 Vdc, f = 100 MHz
• Guaranteed Capacitance Range -- 37--42 pF @ VR = 3.0 Vdc
• Dual Diodes -- Save Space and Reduce Cost
• Monolithic Chip Provides Near Perfect Matching --Guaranteed ± 1.0% (Max) Over Specified Tuning Range
• This is a Pb--Free Device*

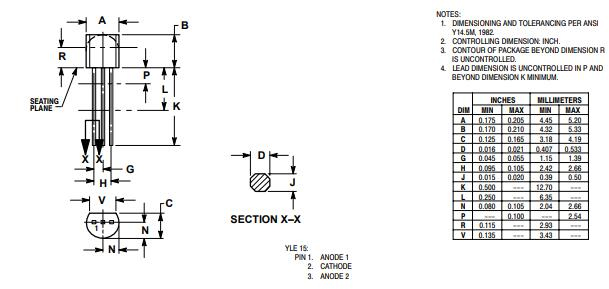

MV104 Package
MV104 Manufacturer
ON Semiconductor (Nasdaq: ON) is driving energy efficient innovations, empowering customers to reduce global energy use. The company is a leading supplier of semiconductor-based solutions, offering a comprehensive portfolio of energy-efficient power management, analogue, sensors, logic, timing, connectivity, discrete, SoC and custom devices.
Datasheet PDF
Download datasheets and manufacturer documentation for ON Semiconductor MV104.
MV104 Documents
MV104 Documents
Download datasheets and manufacturer documentation for MV104
PCN Obsolescence/ EOL
Multiple Devices 30/Jun/2006
Multiple Devices 08/Nov/2014
Multiple Devices Revision 26/Nov/2014
ReachStatement
ON-Semiconductor-company-79.pdf
Frequently Asked Questions
What region is the MV104 popular?
The MV104 is the most popular in Nigeria, Georgia, also the United Kingdom.
What is the MV104 designed for？
It is designed for FM tuning, general frequency control and tuning, or any top–of–the–line application requiring back–to–back diode configurations for minimum signal distortion and detuning.
How about the package of MV104?
It is available in the TO-226-3, TO-92-3 (TO-226AA) packages.
FAQ
What region is the MV104 popular?
The MV104 is the most popular in Nigeria, Georgia, also the United Kingdom.
What is the MV104 designed for？
It is designed for FM tuning, general frequency control and tuning, or any top–of–the–line application requiring back–to–back diode configurations for minimum signal distortion and detuning.
How about the package of MV104?
It is available in the TO-226-3, TO-92-3 (TO-226AA) packages.
