What Is Flash Memory?
Memory Non-Volatile 8-UFDFN Exposed Pad 8Mb 1M x 8 FLASH -40°C~85°C TA 1.65V~3.6V SPI 1.8V 33MHz 0.5mm IC FLASH 8M SPI 33MHZ 8USON
MX25R8035F is an 8MB Serial NOR Flash memory with an internal configuration of 1,048,576 x 8. The structure becomes 2,097,152 bits x 4 or 4,194,304 bits x 2 when it is in four I/O modes. This article mainly introduces features, pinout, datasheet and other detailed information about Macronix MX25R8035FZUIL0.
MX25R8035FZUIL0
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.15708 | $1.16 |
| 10+ | $1.09159 | $10.92 |
| 100+ | $1.0298 | $102.98 |
| 500+ | $0.97151 | $485.76 |
| 1000+ | $0.91652 | $916.52 |
MX25R8035F is an 8MB Serial NOR Flash memory with an internal configuration of 1,048,576 x 8. The structure becomes 2,097,152 bits x 4 or 4,194,304 bits x 2 when it is in four I/O mode.
In single I/O mode, the MX25R8035F has a serial peripheral interface and software protocol that allows it to operate on a basic 3-wire bus. A clock input (SCLK), a serial data input (SI), and a serial data output (SDO) are the three bus signals (SO). CS# input allows serial access to the device.
The SI and SO pins become SIO0 and SIO1 pins for address/dummy bits input and data output when it is in two I/O read modes. The SI pin, SO pin, WP# pin, and RESET#/HOLD# pin become SIO0 pin, SIO1 pin, SIO2 pin, and SIO3 pin for address/dummy bits input and data output when it is in four I/O read mode.
On the full chip, the MX25R8035F MXSMIO® (Serial Multi I/O) allows sequential read operation.
After issuing the program/erase command, auto program/erase algorithms will be executed, which will program/erase and validate the given page, sector, or block locations. The program command is carried out on a byte, page (256 bytes), or word basis. The Erase command can be used to erase a 4K-byte sector, a 32K-byte block, a 64K-byte block, or the entire chip.
A status register is included to improve user convenience by indicating the chip's status. The status read command can be used to determine whether a program or erase operation is complete using the WIP bit.
Advanced security features improve the protection and security functions; for more information, read the security features section .
The MX25R8035F utilizes Macronix 's proprietary memory cell, which reliably stores memory contents even after 100,000 program and erase cycles.

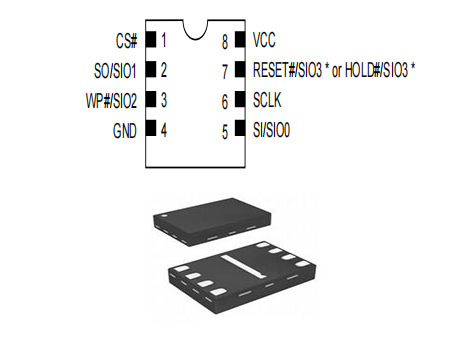

The following figure is MX25R8035FZUIL0 Pinout.

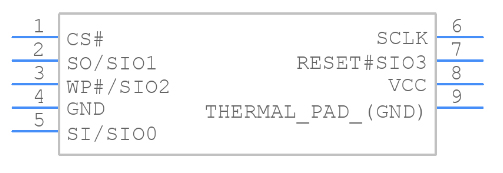

The following figures are MX25R8035FZUIL0 Symbol and Footprint.
Symbol
Footprint
• Ultra-Low Power Mode and High-Performance Mode
• Wide Range VCC 1.65V-3.6V for Read, Erase and Program Operations
• Unique ID and Secure OTP Support
• Multi I/O Support - Single I/O, Dual I/O and Quad I/O
• Program Suspend/Resume & Erase Suspend/Resume
Macronix MX25R8035FZUIL0 technical specifications, attributes, parameters and parts with similar specifications to Macronix MX25R8035FZUIL0.
Macronix MX25R8035FZUIL0 technical specifications, attributes, parameters and parts with similar specifications to Macronix MX25R8035FZUIL0.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-UFDFN Exposed Pad | |
| Surface Mount | YES | |
| Memory Types | Non-Volatile | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Cut Tape (CT) | |
| Series | MXSMIO™ | |
| Published | 2017 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 8Terminations | |
| Additional Feature | IT IS ALSO CONFIGURED AS 8M X 1 | |
| Voltage - Supply | 1.65V~3.6V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Supply Voltage | 1.8V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| JESD-30 Code | R-PDSO-N8 | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Supply Voltage-Min (Vsup) | 1.65V | |
| Memory Size | 8Mb 1M x 8 | |
| Operating Mode | SYNCHRONOUS | |
| Clock Frequency | 33MHz | |
| Access Time | 12 ns | |
| Memory Format | FLASH |
| Product Attribute | Attribute Value | |
|---|---|---|
| Memory Interface | SPI | |
| Organization | 2MX4 | |
| Memory Width | 4 | |
| Write Cycle Time - Word, Page | 100μs, 10ms | |
| Memory Density | 8388608 bit | |
| Parallel/Serial | SERIAL | |
| Programming Voltage | 1.8V | |
| Alternate Memory Width | 2 | |
| Ambient Temperature Range High | 85°C | |
| Height | 600μm | |
| Length | 3mm | |
| Width | 2mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
MX25R8035FZUIL0 Functional Block Diagram is shown as follows.
Functional Block Diagram
The following figure is MX25R8035FZUIL0 Part Name Description.
Part Name Description
The following figure is MX25R8035FZUIL0 Package.
Package
Macronix, a prominent non-volatile memory (NVM) integrated device maker, offers a full range of NOR Flash, NAND Flash, and ROM solutions. Macronix continues to provide high-quality, innovative, and performance-driven products to its clients in the consumer, communication, computer, automotive, networking, and other segment markets, thanks to its world-class R&D and manufacturing capabilities.
Download datasheets and manufacturer documentation for MX25R8035FZUIL0
