N25Q256A13ESF40G FLASH - NOR Memory IC 256Mb SPI 108 MHz: Datasheet, Features, And Pinout

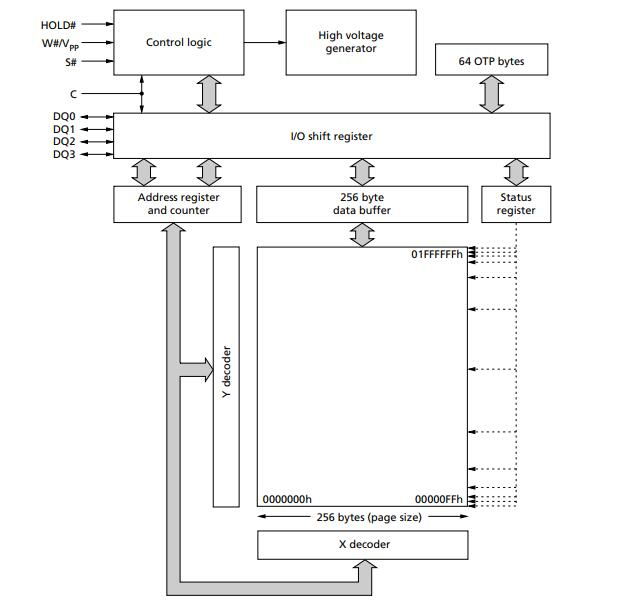

The N25Q256A13ESF40G is the world's first 65nm NOR-based high-performance multiple input/output serial Flash memory device. It has a high-speed SPI-compatible bus interface, execute-in-place (XIP) functionality, and enhanced write protection methods. The high-performance dual and quad input/output instructions enable READ and PROGRAM operations to be doubled or quadrupled in bandwidth.

• SPI-compatible serial bus interface

• Double transfer rate (DTR) mode

• 2.7–3.6V single supply voltage

• 108 MHz (MAX) clock frequency supported for all

protocols in single transfer rate (STR) mode

• 54 MHz (MAX) clock frequency supported for all

protocols in DTR mode

• Dual/quad I/O instruction provides increased

throughput up to 54 MB/s

• Supported protocols

– Extended SPI, dual I/O, and quad I/O

– DTR mode supported on all

• Execute-in-place (XIP) mode for all three protocols

– Configurable via volatile or nonvolatile registers

– Enables memory to work in XIP mode directly after power-on

• PROGRAM/ERASE SUSPEND operations

• Continuous read of entire memory via a single command

– Fast read

– Quad or dual output fast read

– Quad or dual I/O fast read

• Flexible to fit the application

– Configurable number of dummy cycles

– Output buffer configurable

• Software reset

• 3-byte and 4-byte addressability mode supported

• 64-byte, user-lockable, one-time programmable

(OTP) dedicated area

• An additional reset pin is available on the following

devices

– N25Q256A83ESF40x, N25Q256A83E1240x,

N25Q256A83ESFA0F

• Erase capability

– Subsector erase 4KB uniform granularity blocks

– Sector erase 64KB uniform granularity blocks

– Full-chip erase

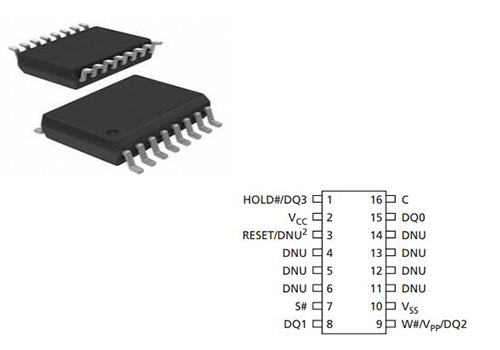

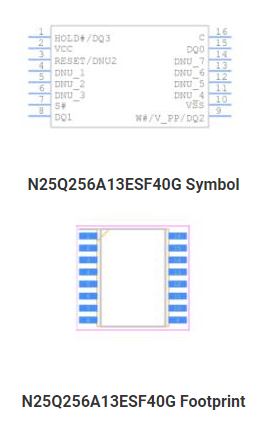

N25Q256A13ESF40G Pinout

Micron Technology Inc. N25Q256A13ESF40G technical specifications, attributes, parameters and parts with similar specifications to Micron Technology Inc. N25Q256A13ESF40G.

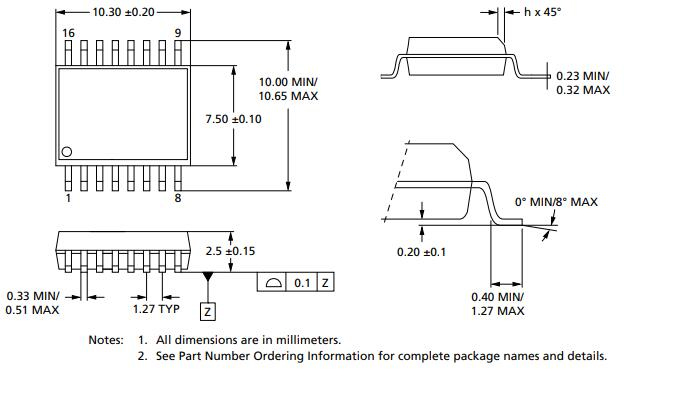

N25Q256A13ESF40G Package information

Micron is one of the world's leading providers of advanced semiconductor solutions. Micron's DRAM and Flash components are used in today's most advanced computing, networking, and communications products, including computers, workstations, servers, cell phones, wireless devices, digital cameras, and gaming systems.
