IC Mcu 8 Bit 18KB Flash 20TSSOP N76E003AT20 is a microcontroller unit from the N76E003 family introduced by Nuvoton. This article mainly covers pinout, datasheet, programming, port, features, applications, and other details about the N76E003AT20 microcontroller.
2913
Oct 2, 2021
Wayne Arthur
1
Getting Started with Nuvoton N76E003 Microcontroller Programming using Keil - Blinking an LED
IC Mcu 8 Bit 18KB Flash 20TSSOP
N76E003AT20 is a microcontroller unit from the N76E003 family introduced by Nuvoton. This article mainly covers pinout, datasheet, programming, port, features, applications, and other details about the N76E003AT20 microcontroller. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
N76E003AT20
N76E003AT20 Pinout
| Pin name | Type | The main function (after reset) |
| P0.5/PWM2/IC6/T0/AIN4 | I/O | Port 0 bit 5, PWM CH2 or Input Capture CH6 or External count input to Timer/Counter 0 or Analog Input CH4 |
| P0.6/TXD/AIN3 | I/O | Port 0 bit 6, Serial port 0 transmit data output or Analog Input CH3 |
| P0.7/RXD/AIN2 | I/O | Port 0 bit 7, Serial port 0 receive data input or Analog Input CH4 |
| P2.0/RST | I | Input Only Port 2 bit 0 or Schmitt trigger input pin for hardware reset. |
| P3.0/INT0/OSCIN/AIN1 | I/O | Port 3 bit 0, Interrupt pin input 0 or Oscillator input or Analog Input CH1 |
| P1.7/INT1/AIN0 | I/O | Port 1 bit 7 or External interrupt 1 input, ADC input channel 0. |
| GND | S | Digital ground |
| P1.6/ICPDA/OCDDA/TXD_1/[SDA] | S | Port 1 bit 6 or ICP data Input and output or OCD Data input-output or Serial port transmit data or I 2 C data |
| VDD | S | Digital power supply |
| P1.5/PWM5/IC7/SS | I/O | Port 1 bit 5 or PWM 5 or Input capture channel 7 or SPI Slave select input. |
| P1.4/SDA/FB/PWM1 | I/O | Port 1 channel 4 or I 2 C data or Fault brake input or PWM output channel 1. |
| P1.3/SCL/[STADC] | I/O | Port 1 channel 3 or I 2 C clock or External start ADC Clear. |
| P1.2/PWM0/IC0 | I/O | Port 1 bit 2 or PWM 0 or Input capture channel 0 |
| P1.1/PWM1/IC1/AIN7/CLO | I/O | Port 1 bit 1, PWM CH1 or Input Capture CH1 or Analog Input CH7 or System clock output. |
| P1.0/PWM2/IC2/SPCLK | I/O | Port 1 bit 0, PWM CH2 or Input Capture CH2 or SPI clock |
| P0.0/PWM3/IC3/MOSI/T1 | I/O | Port 0 bit 0, PWM CH3 or Input Capture CH3 or SPI Master input/slave input or External input to Timer/counter 1 |
| P0.1/PWM4/IC4/MISO | I/O | Port 0 bit 1, PWM CH4 or Input Capture CH4 or SPI Master input/slave output |
| P0.2/ICPCK/OCDCK/RXD_1/[SCL] | I/O | Port 0 bit 2, ICP clock input or OCD clock input or serial port 1 receives input or I 2 C clock |
| P0.3/PWM5/IC5/AIN6 | I/O | Port 0 bit 3, PWM CH5 or Input Capture CH5 or Analog input channel 6 |
| P0.4/AIN5/STADC/PWM3/IC3 | I/O | Port 0 bit 4, PWM CH3 or Input Capture CH3 or External start ADC trigger |
N76E003AT20 Symbol
N76E003AT20 Footprint
The N76E003AT20 is a high-speed controller featuring a strong oscillator running at 16 MHz, an I2C protocol, an SPI port, and a self-wakeup timer. For motor operations, the MCU additionally features an analog to digital converter, an 8-channel PWM, and a fault brake. This microcontroller module is used in consumer products and modest projects.
Nuvoton Technology Corporation of America N76E003AT20 technical specifications, attributes, parameters and parts with similar specifications to Nuvoton Technology Corporation of America N76E003AT20.
Nuvoton Technology Corporation of America N76E003AT20 technical specifications, attributes, parameters and parts with similar specifications to Nuvoton Technology Corporation of America N76E003AT20.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 10 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-TSSOP (0.173, 4.40mm Width) | |
| Data Converters | A/D 8x12b | |
| Number of I/Os | 18I/Os | |
| Operating Temperature | -40°C~105°C TA | |
| Packaging | Tube | |
| Series | N76 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Oscillator Type | Internal | |
| Speed | 16MHz | |
| RAM Size | 1K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.4V~5.5V | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER | |
| Core Processor | 8051 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peripherals | Brown-out Detect/Reset, I2S, POR, PWM, WDT | |
| Program Memory Type | FLASH | |
| Core Size | 8-Bit | |
| Program Memory Size | 18KB 18K x 8 | |
| Connectivity | I2C, SPI, UART/USART | |
| EEPROM Size | 4K x 8 | |
| RoHS Status | Non-RoHS Compliant |

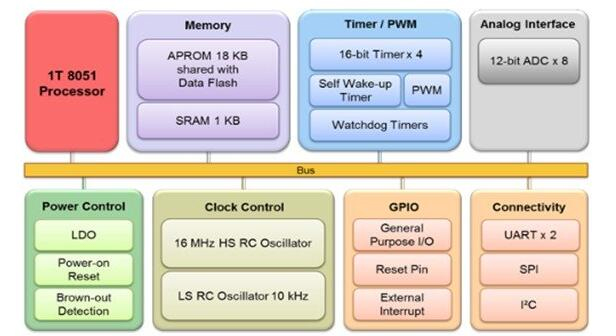

The following figure shows an overview of the 8051-based MCU N76E003AT20, including several peripherals and features.
N76E003AT20 Block Diagram
The N76E003 provides up to 18 I/O pins under a 20 pin package and rich peripherals including two UARTs, SPI, I²C, 6-ch PWM output, wake-up function, and Brown-out detector.
It features 1 Kilobyte of RAM with 18 Kbyte of Flash memories. The 2.4V to 5.5V operating voltage makes it a suitable choice for 3.3V as well as 5.0V logic level operations on both operating voltages.
Core
1T 8051 processor
Max frequency up to16 MHz
Wide operating voltage: 2.4V to 5.5V
Temperature range: -40℃ to 105℃
Memory
18 KB of Flash memory
1 KB of SRAM
Supports configurable Data Flash
Supports program update by ISP (In-System Programming)/ ICP (In-Circuit Programming)/ IAP (In-Application Programming)
PWM
Up to 6-ch PWM
Programmable dead-zone generator
ADC
12-bit 8-ch ADC
Runs up to 500 kSPS
Connectivity
Two UARTs up to 115200 bps
One SPI up to 8 MHz
One I²C up to 400 kHz
Clock Control
< 2% deviation16 MHz Internal RC oscillator
10 kHz Internal RC oscillator
Access Control System
Thermostat
Bluetooth Speaker
Electric Meter
Data Collector
Battery charger
Beauty Equipment
Small Home Appliance
N76E003AS20
AT89C2051
AT89LP2052
We'll need an integrated development environment and a compiler to program the Nuvoton N76E003AT20 microcontroller. These 8051 base microcontrollers can be programmed using a variety of software and compilers available on the market. However, Keil Vision is the most extensively used IDE for programming 8051-based microcontrollers because it includes a C51 compiler.
N76E00AT20 can be programmed through:
IDE: Keil u-vision
Compiler: C51
N76E003AT20 Interfacing Diagram
N76E003AT20 Dimension
Nuvoton Technology Corp was founded with the vision of creating an era of innovative inspiration.it has extended Winbond's product lines of Computer Logic IC business; core technology, partnerships; customers and sales, etc, as well as continue to enhance product innovation and to comprehend the needs of terminal application market, and provide superior service to our customers based on the existing foundation, until it was carved-out as a wholly-owned subsidiary of Winbond Electronics Corp. in July 2008.
