NCP1117 5V Voltage Regulator - Scheme & Footprint 3D Model
IC REG LINEAR POS ADJ 1A DPAK
The NCP1117 is low dropout positive voltage regulator that is capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
NCP1117DTAG
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.21954 | $0.22 |
| 10+ | $0.20712 | $2.07 |
| 100+ | $0.19539 | $19.54 |
| 500+ | $0.18433 | $92.17 |
| 1000+ | $0.1739 | $173.9 |
Symbol

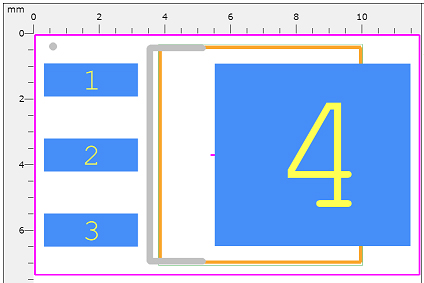

Footprint
3D Model
The NCP1117 series are low dropout positive voltage regulators that are capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.2 V at 800 mA over temperature. This series contains nine fixed output voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V that have no minimum load requirement to maintain regulation. Also included is an adjustable output version that can be programmed from 1.25 V to 18.8 V with two external resistors. On chip trimming adjusts the reference/output voltage to within ±1.0% accuracy. Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown. The NCP1117 series can operate with up to 20 V input. Devices are available in SOT−223 and DPAK packages. The NCP1117 features a significant reduction in dropout voltage along with enhanced output voltage accuracy and temperature stability when compared to older industry standard three−terminal adjustable regulators.
This article provides you with a basic overview of the NCP1117 voltage regulator, including its pin descriptions, features and specifications, etc., to help you quickly understand what NCP1117 is.
• Output Current in Excess of 1.0 A
• 1.2 V Maximum Dropout Voltage at 800 mA Over Temperature
• Fixed Output Voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V, 2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V
• Adjustable Output Voltage Option
• No Minimum Load Requirement for Fixed Voltage Output Devices
• Reference/Output Voltage Trimmed to ±1.0%
• Current Limit, Safe Operating and Thermal Shutdown Protection
• Operation to 20 V Input
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb-Free Devices
ON Semiconductor NCP1117DTAG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NCP1117DTAG.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 week ago) | |
| Factory Lead Time | 2 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
| Number of Pins | 3Pins | |
| Operating Temperature | 0°C~125°C | |
| Packaging | Tube | |
| Published | 2005 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) | |
| Packing Method | RAIL | |
| Terminal Position | SINGLE | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 2.29mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | NCP1117DTA | |
| Pin Count | 3 | |
| JESD-30 Code | R-PSSO-G2 | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 20V | |
| Output Voltage | 18.8V | |
| Output Type | Adjustable | |
| Max Output Current | 1A | |
| Output Configuration | Positive | |
| Quiescent Current | 3.6mA | |
| Accuracy | 1 % | |
| Max Output Voltage | 18.8V | |
| Number of Regulators | 1Regulator | |
| Protection Features | Over Current, Over Temperature | |
| Current - Quiescent (Iq) | 10mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Dropout (Max) | 1.2V @ 800mA | |
| Halogen Free | Halogen Free | |
| PSRR | 73dB (120Hz) | |
| Reference Voltage | 1.262V | |
| Dropout Voltage | 1.07V | |
| Dropout Voltage1-Nom | 1.07V | |
| Min Output Voltage | 1.25V | |
| Min Current Limit | 1A | |
| Output Voltage Accuracy | 1 % | |
| Load Regulation-Max(%) | 0.4% | |
| Height | 2.38mm | |
| Length | 6.73mm | |
| Width | 6.22mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

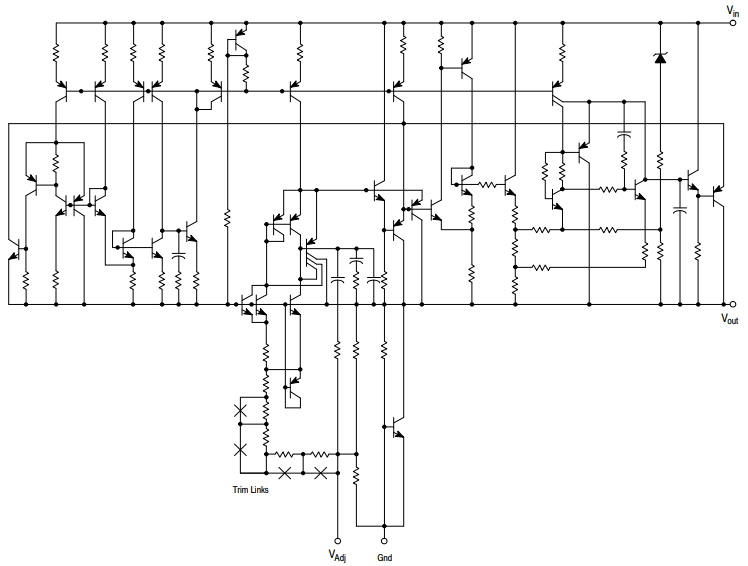

Internal Schematic
| Model number | Manufacturer | Description |
| REG1117-3.3/2K5 | Rochester Electronics LLC | 3.3V FIXED POSITIVE LDO REGULATOR, 1.2V DROPOUT, PDSO4, GREEN, PLASTIC, SOT-223, 4 PIN |
| LX8117-33CST-TR | Microsemi Corporation | Fixed Positive LDO Regulator, 3.3V, 1.2V Dropout, BIPolar, PDSO4, PLASTIC, SOT-223, 3 PIN |
| GS1117CST-3.3 | Vishay Semiconductors | Fixed Positive LDO Regulator, 3.3V, 1.4V Dropout, PDSO4, SOT-223, 3 PIN |
| LT1117IST-3.3#TR | Analog Devices Inc | Fixed Positive LDO Regulator, 3.3V, 1.3V Dropout, BIPolar, PDSO3 |
| LD1117S30C | STMicroelectronics | 3V FIXED POSITIVE LDO REGULATOR, 1.3V DROPOUT, PDSO4, SOT-223, 4 PIN |
| LM1117MPX-2.5 | National Semiconductor Corporation | IC VREG 2.5 V FIXED POSITIVE LDO REGULATOR, 1.3 V DROPOUT, PDSO4, SOT-223, 3 PIN, Fixed Positive Single Output LDO Regulator |
| LT1118CST-2.5 | Analog Devices Inc | Fixed Positive LDO Regulator, 2.5V, 1.3V Dropout, PDSO4 |
| EZ1117CST-3.3TR | Semtech Corporation | Fixed Positive LDO Regulator, 3.3V, 1.2V Dropout, BIPolar, PDSO4, TO-261AA, SOT-223, 4 PIN |
| LD1117S25C | STMicroelectronics | 2.5V FIXED POSITIVE LDO REGULATOR, 1.3V DROPOUT, PDSO4, SOT-223, 4 PIN |
| LM1117MPX-3.3/NOPB | National Semiconductor Corporation | IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 1.3 V DROPOUT, PDSO4, ROHS COMPLIANT, SOT-223, 3 PIN, Fixed Positive Single Output LDO Regulator |
• Consumer and Industrial Equipment Point of Regulation
• Active SCSI Termination for 2.85 V Version
• Switching Power Supply Post Regulation
• Hard Drive Controllers
• Battery Chargers
