THERMISTOR NTC 10KOHM 3380K 0603
NCP18XH103F03RB provides excellent solderability and their unique construction offers high stability in the application's environment. This article is going to introduce pinout, applications, features, and more details about NCP18XH103F03RB.
NCP18XH103F03RB
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.1324 | $0.13 |
| 10+ | $0.1249 | $1.25 |
| 100+ | $0.11783 | $11.78 |
| 500+ | $0.11116 | $55.58 |
| 1000+ | $0.10487 | $104.87 |
NCP18XH103F03RB's Ni barrier termination provides excellent solderability and their unique construction offers high stability in the application's environment. Chip NTC Thermistors have Ni barrier termination, provide excellent solderability, and offer high stability in the environment due to unique inner construction. This is new series, an available market that requests high reliability for wide temperature sensing and compensation.
1. Excellent solderability and high stability in the environment
2. Excellent long time aging stability
3. High accuracy in resistance and B-constant
4. Flow / Reflow soldering possible
5. Same B-Constant in the same resistance in the three sizes (0805 size / 0603 size / 0402 size). Easy to use smaller size in the circuits
6. Lead is not contained in the product.
7. UL/certified product. (UL1434, File No. E137188)

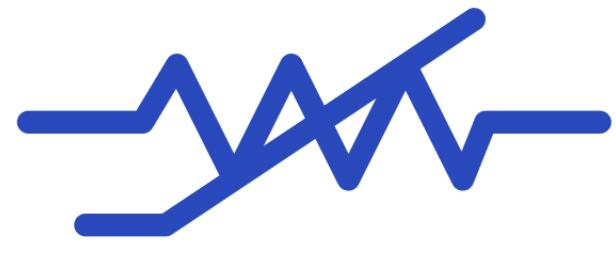

NCP18XH103F03RB Symbol
NCP18XH103F03RB Footprint

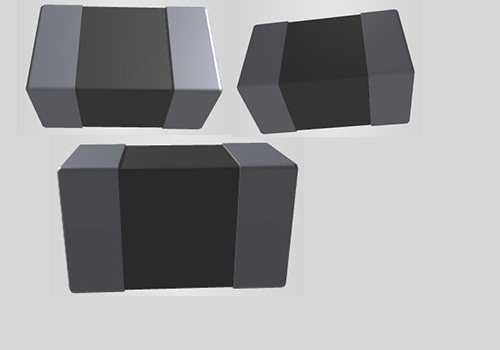

NCP18XH103F03RB 3D Model

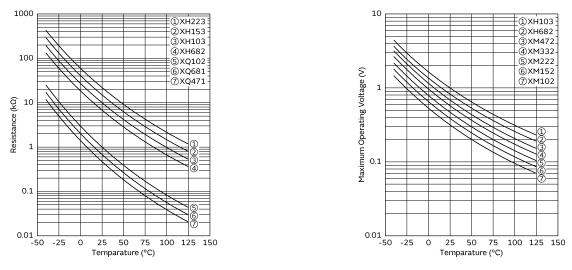

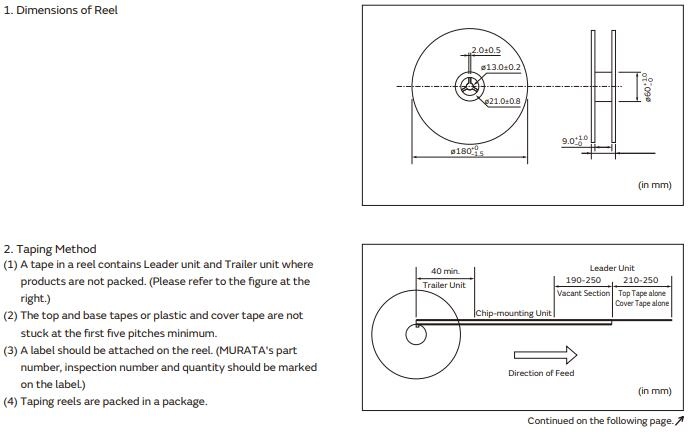

NCP18XH103F03RB Product Data
Murata Electronics NCP18XH103F03RB technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics NCP18XH103F03RB.
Murata Electronics NCP18XH103F03RB technical specifications, attributes, parameters and parts with similar specifications to Murata Electronics NCP18XH103F03RB.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 0603 (1608 Metric) | |
| Terminal Shape | WRAPAROUND | |
| Number of Pins | 2Pins | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | NCP18 | |
| Tolerance | 1% | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 2Terminations | |
| Termination | SMD/SMT |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Resistance | 10kOhm | |
| Terminal Finish | Tin (Sn) - with Nickel (Ni) barrier | |
| HTS Code | 8533.40.80.70 | |
| Power Rating | 100mW | |
| Packing Method | TR, PAPER, 7 INCH | |
| Max Power Dissipation | 100mW | |
| Depth | 800μm | |
| Resistor Type | NTC RESISTOR | |
| Current Rating | 310μA | |
| Case Code (Metric) | 1608 | |
| Case Code (Imperial) | 0603 | |
| Working Voltage | 5V | |
| Terminal Placement | DUAL ENDED | |
| Accuracy | 0.7 % |
| Product Attribute | Attribute Value | |
|---|---|---|
| Resistance Tolerance | ±1% | |
| Thermistor Application | TEMPERATURE COMPENSATION | |
| Resistance in Ω @ 25°C | 10k | |
| B25/85 | 3434K | |
| B25/50 | 3380K | |
| B25/100 | 3455K | |
| Circuit DC Voltage-Max | 5V | |
| Height | 800μm | |
| Length | 1.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
1. Temperature compensation for transistors, ICs, and crystal oscillators in mobile communications
2. Temperature sensor for rechargeable batteries
3. Temperature compensation of LCD
4. Temperature compensation in general use of electric circuits
Murata is a global leader in the design, manufacture, and supply of advanced electronic materials, leading-edge electronic components, and multi-functional, high-density modules. Murata innovations can be found in a wide range of applications from mobile phones to home appliances, and automotive applications to energy management systems and healthcare devices.
Download datasheets and manufacturer documentation for Murata Electronics NCP18XH103F03RB.
Download datasheets and manufacturer documentation for NCP18XH103F03RB
