NCV33164D-3R2G

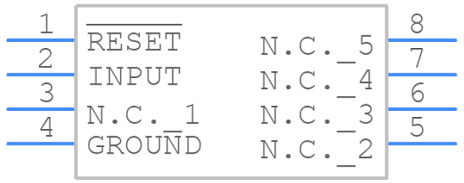

The following figure is the diagram of NCV33164 pinout.
Pinout
The followings are NCV33164 Symbol, Footprint, and 3D Model.
PCB Symbol
PCB Footprint
3D Model
The NCV33164 series are undervoltage sensing circuits specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is required. These devices offer the designer an economical solution for low voltage detection with a single external resistor. The NCV33164 series features a bandgap reference, a comparator with precise thresholds and built−in hysteresis to prevent erratic reset operation, an open collector reset output capable of sinking in excess of 6.0 mA, and guaranteed operation down to 1.0 V input with extremely low standby current. The NCV device is packaged in SOIC−8.
This article provides you with a basic overview of the NCV33164 Micropower Undervoltage Sensing Circuits, including its pin descriptions, features and specifications, etc., to help you quickly understand what NCV33164 is.
● Temperature Compensated Reference
● Precise Comparator Thresholds Guaranteed Over Temperature
● Comparator Hysteresis Prevents Erratic Reset
● Reset Output Capable of Sinking in Excess of 6.0 mA
● Internal Clamp Diode for Discharging Delay Capacitor
● Guaranteed Reset Operation With 1.0 V Input
● Extremely Low Standby Current: As Low as 9.0 μA
● NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
● Pb−Free Packages are Available
ON Semiconductor NCV33164D-3R2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NCV33164D-3R2G.
ON Semiconductor NCV33164D-3R2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NCV33164D-3R2G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | LAST SHIPMENTS (Last Updated: 2 days ago) | |
| Factory Lead Time | 4 Weeks | |
| Mount | Surface Mount | |
| Package / Case | SOIC | |
| Number of Pins | 8Pins | |
| Power Dissipation (Max) | 700mW | |
| Usage Level | Automotive grade | |
| Published | 2009 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Type | Simple Reset/Power-On Reset | |
| Terminal Finish | Tin (Sn) | |
| Max Operating Temperature | 125°C |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Operating Temperature | -40°C | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.4V | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Pin Count | 8 | |
| Power Supplies | 3V | |
| Temperature Grade | AUTOMOTIVE | |
| Number of Channels | 1Channel | |
| Max Supply Voltage | 10V | |
| Min Supply Voltage | 1V | |
| Operating Supply Current | 24μA | |
| Power Dissipation | 700mW | |
| Adjustable Threshold | NO | |
| Reset | Active Low |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Threshold | 2.71V | |
| Number of Voltages Monitored | 1 | |
| Halogen Free | Halogen Free | |
| Supply Current-Max (Isup) | 0.04mA | |
| Min Reset Threshold Voltage | 2.55V | |
| Max Reset Threshold Voltage | 2.8V | |
| Threshold Voltage | +2.7V | |
| Undervoltage Threshold | 2.71V | |
| Overvoltage Threshold | 2.8V | |
| Height | 1.5mm | |
| Length | 5mm | |
| Width | 4mm | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |

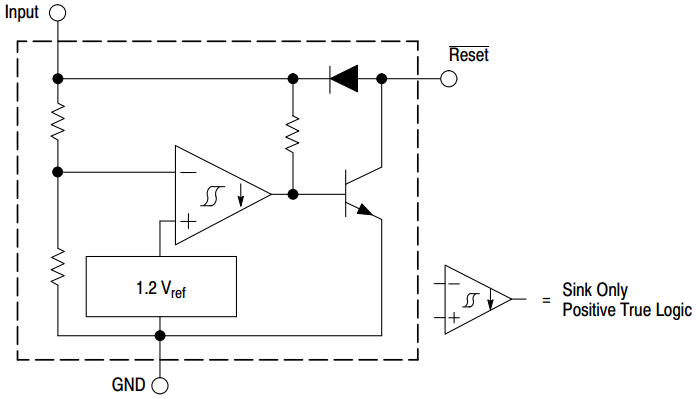

The following is the Block Diagram of NCV33164.
Representative Block Diagram
| Model number | Manufacturer | Description |
| NCV33164D-3R2 | On Semiconductor | Voltage Supervisor, Undervoltage Sensing Circuit, Micropower, with Open Collector Output, Qualified for 3.0 V Systems 2.65 V, Active Low, SOIC-8 Narrow Body, 2500-REEL |
Applications include direct monitoring of the 3.0 V or 5.0 V MPU/logic power supply used in appliance, automotive, consumer, and industrial equipment.
The following is the Marking Diagram of NCV33164.
Marking Diagram
The following diagrams show the NCV33164 package.
View A
View B
View C

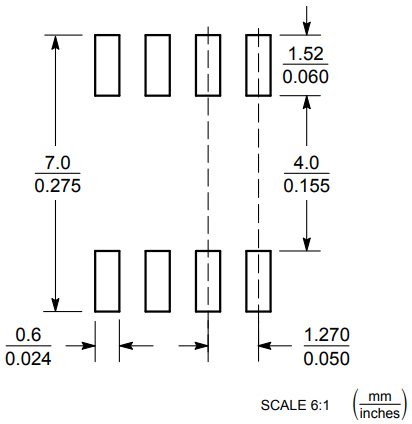

The following diagram shows the NCV33164 Package Soldering Footprint.
Soldering Footprint
